Residential Heat Pump All In One Design For Household Hot Water Supply

Residential Heat Pump All In One Design For Household Hot Water Supply

FOB Price:
Min.Order Quantity:
10 Unit
Supply Ability:
2000 Unit per Month
Port:
Guangzhou
Place of Origin:
China
Payment Terms:
L/C, T/T, Cash
Brand:
Theodoor
Products Model:
X7,RS-3.6FAD
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Theodoor

    Model Number: X7,RS-3.6FAD

    Place of Origin: China

Packaging & Delivery

  • Packaging Details: Carton box
  • Delivery Detail: 30 days

Specifications

260L Commercial Integrated Heat Pump Water Heater X7 For Household

Specifications:

Model

RS-3.6FAD/150L

RS-3.6FAD/190L

RS-3.6FAD/260L

RS-3.6FAD/300L

RS-4.2FAD/300L

Rated Input Power

0.88 KW

0.88 KW

0.88 KW

0.88 KW

1.2 KW

Rated Heating Capacity

3.6 KW

3.6 KW

3.6 KW

3.6 KW

4.2 KW

Heating ampere

4.0A

4.0A

4.0A

4.0A

5.5A

Power Supply

220V~50Hz

220V~50Hz

Outlet water temperature

55 degrees

55 degrees

Water output capacity

77L/H

77L/H

77L/H

77L/H

90L/H

Capacity of Water Tank

150L

190L

260L

300L

300L

Electric Heater Power

2KW

2KW

Auxiliary heater ampere

9.1A

9.1A

Refrigerant

R417A /R410A /R134A

Compressor

Panasonic

Condenser coil

Copper coil /Double skin copper coil /Stainless steel coil

Evaporator

High efficiency finned heat exchanger

Size(mm)

∮650X1350

∮650X1485

∮650X1760

∮650X1890

∮650X1890

Net Weight (Kg)

72

83

98

110

110

Noise (dB)

46

46

46

46

50



Description:

1. Integrated heat pump water heater X7 adopts all in one (integrated) compact design. Its installation is easy.
2. Air outlet and inlet is designed at top with duct connection. This integrated heat pump has ability for various ways of connections to get different functions.
3. Our integrated heat pump adopts double energy system by air-water technology and smart auxiliary electric heater. It can offer hot water in short time for emergent request.
4. It has advantages like extremely compact structure, good looking face, convenient maintenance and inspection.
5. This integrated heat pump is environmentally friendly. There isn’t any burning gas from the water heater. The refrigerant won’t contaminate the ozonosphere. So it benefits the society.
6. This integrated heat pump will not be affected by geographical and weather changing. It can supply hot water at any time.
7. The water temperature can be adjusted as needed and controlled by micro-computer automatically.
8. Save energy, saving more energy by 75% comparing with ordinary electric water heater.

Applications:

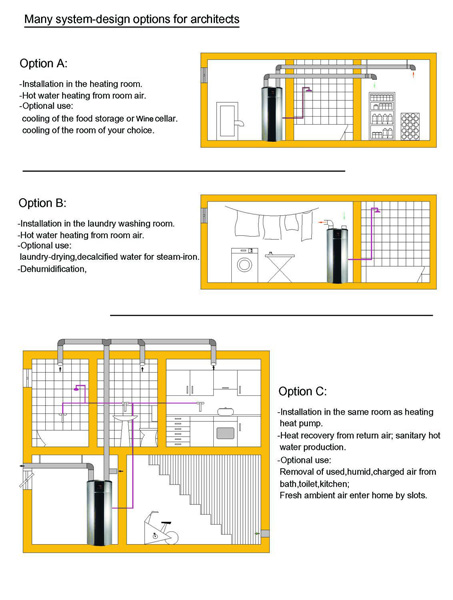

The integrated heat pump water heater unit can be installed at veranda, garage or other place which offers easy installation and stability.



Commercial use

Supermarket, shopping malls, hotels, restaurants, office, hospital, schools; Movie theaters,
fitness halls, clubs, bars, cafes, massage rooms, beauty shops, barbershop…etc.

Household use

Apartments, villas, home… where needs hot water.



Competitive Advantage:

Fashion & modern design
Machinery & technology: Advanced mould machines and equipments ensure products performance and
reliability.

Quality control: 100% product performance testing.


260L Commercial Integrated Heat Pump Water Heater X7 For Household
260L Commercial Integrated Heat Pump Water Heater X7 For Household
260L Commercial Integrated Heat Pump Water Heater X7 For Household
260L Commercial Integrated Heat Pump Water Heater X7 For Household

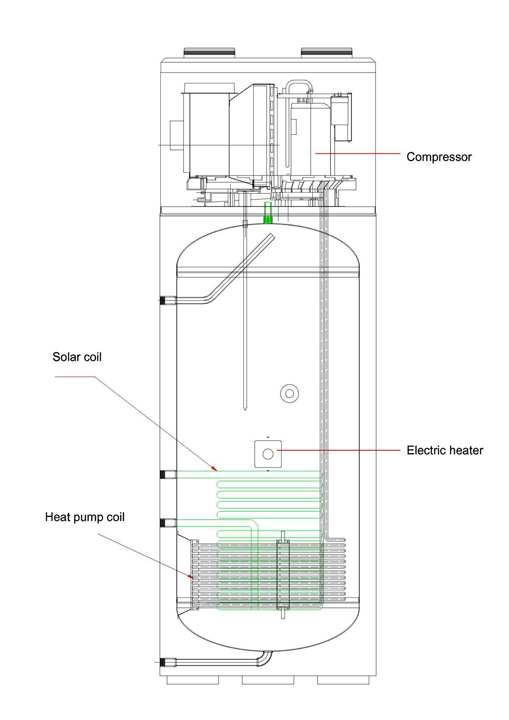

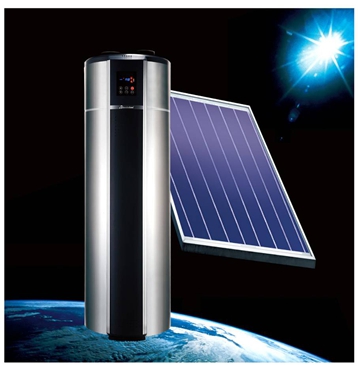

Optional with extra coil for solar connection, heat up water free by solar.


260L Commercial Integrated Heat Pump Water Heater X7 For Household
260L Commercial Integrated Heat Pump Water Heater X7 For Household

260L Commercial Integrated Heat Pump Water Heater X7 For Household

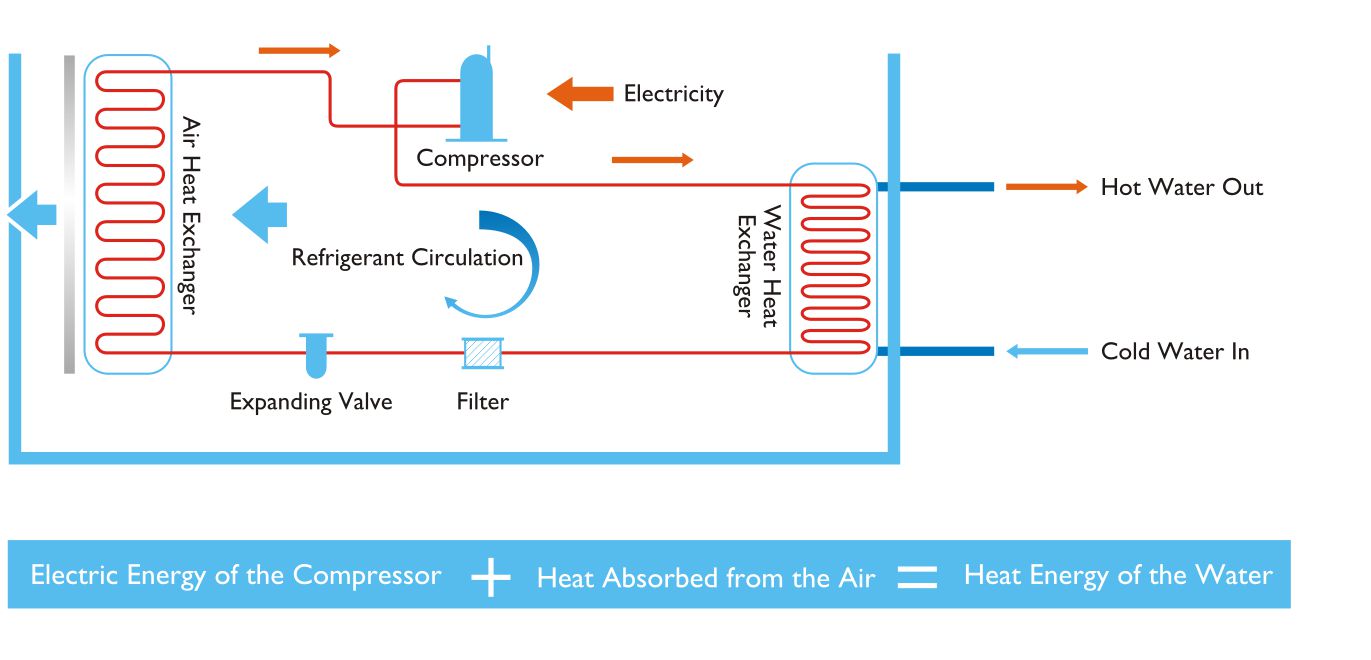

1. Air source heat pump technology:
Heat pump is a promising technology that used the same mechanical principles as refrigerators and air conditions to generate hot water.
(The heat pump works by extracting heat from the surrounding air/water/soil and using it to heat low pressure liquid refrigerant in the heat pumps evaporator, vaporizing the liquid.
The refrigerant then passes through the compressor, which raises the refrigerant pressure and thus the temperature as well. The heated refrigerant gas passed through the heat pump condenser, where gives is off its heat to the water and condenses back into the liquid state.
The liquid refrigerant then passed through an expansion valve or capillary where the pressure is reduced and the cycle starts over. )
Generally, air-source heat pump water heaters work much like a refrigerator in reverse. The heat pump extracts the heat from warm air, intensifies the heat with a compressor, delivers the heat to the water, and exhausts the cooler air. Because it uses the warm ambient air temperature to do most of the work, it is a very efficient way to heat water.

2. Optimized use of Heat Pump technology
Heat pumps are inherently clean and reliable, and traditionally use water to water or air to air technology. Our air to water system, however, represents the best of both technologies, combining the accessibility of air as the heat source, low investment cost, emission free operation, easy installation and maintenance, with the comfort of using water based heating system.

3. Energy Saving
Compared to conventional heated equipments such as electricity resistance heater, gas/oil boiler and solar heater, a heat pump operate as a cost as little as 25%.

4. Environment Friendly
A heat pump will not release harmful materials into the nature.  Also using heat pump as a heating solution will greatly reduce the emission of carbon dioxide.

5. Wide Range of Applications
Heat pump is an optimal house heating and domestic hot water heating solution in residential and a variety of commercial applications. It is also widely used in pool water heating industry.
6. Mainly Composing Parts
Heat pump mainly consists of a compressor, fan (applicable to air to water), evaporator, condenser, and expansion valve (or capillary).
