screw compressor four pipe water chiller using cooling tower

Brief introduction:

Water Cooled Water Chiller With Semi-hermetic Screw Compressor.

-All kinds of compressors available,water cooled chiller system with virous capacity which can be used in virous conditions
-Famous brand compressor(bitzer,Danfoss,tecumseh)
-High Performance

Features and Technique data: :

Features:

1.Wide application as hotel, apartment, villa, factory, shopping center, office building, school, etc.

2. Semi-hermetic screw compressor for all models. Each compressor is equipped with a crankcase heater and a thermal overload cut-out, the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.

3. The refrigerant circuit is complete with sight glass, filter drier, high and low pressure gauges, solenoid valve, direct expansion valve, high and low pressure switch.

4. The unit is of high performance as they are made of the condensers and evaporators of grooved copper pipes, and high quality components, by specialized process.

5. The electric panel consists of compressor breaker, compressor contactor, phase sequence relay, control circuit breaker, microprocessor control with function display.

6. LCD display, touch screen control panel as standard.

7. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.

8. For the units with semi-hermetic screw compressor, an infinitely variable capacity control system that is capable of exactly matching the demand requirement of the system is to be supplied. This system is to provide precise and stable control of supply water temperature over the complete range of operating conditions.

OPTIONAL

Electronic expansion valve

Desuperheater as optional.

Electronic controller with BMS system.

Low noise compressor cabinet or outside full cover

Channel Steel base

System Control

1. Imaged system operation chart, showing the temperature of water in/out, the energy level of compressor run, on/off button, run time, alarm etc. And the remote turn on/off function is available. PC remote control is optional.

2. Notice for maintenance is indicated according to the accumulated run time of the compressor.It is convenience to maintenance.

3. The control system will automatically balance the run time for each compressor for mult-compressor unit.

Safety Protections

1. Discharge check value:it prevents the discharged gas from going back after the compressor stops.

2. Phase lack protection:It protects the compressor for over high voltage, voltage dificiency, and phase lack.

3. Direction protection:It protects the compressor from damage resulted from Counter direction run.

4. Oil heater: It heats the oil before the unit start, keep the good lubrication for the unit before it runs.

5. Overheat protection inside the motor of the compressor: It protects the compressor from burning down for too high coil temperature for overload, or abnormal run condition.

6. High&low pressure protection:It protects the compressor and system against extreme run condition and trouble.

7. Freezing protection:It protects the unit form too low temperature of the water out, freezing may occerat some place,resulting in freezing breaking of the evaporator.

8. Water flow protect: It protects the unit from run without water flow.

9. High temperature of chilled water protection: It works to protect the compressor in case that the load is too large, the temperature of chilled water is too high. It may result in compressor failure without this protect in the case.

Model Details:

LT     L   S---30   W(R)     S(D)

LT--LVTE Company Products Code

L--Screw Compressors

S--Chiller, Cooling Only

30--Compressor HP

W--Water Cooled

R--With Heat Recovery

S(D)—Single(Double) Compressor

LTLS-W(R)S(D) Series Water Cooled Chiller

-Semi-hermetic Screw Compressors Units;

-Most used for Central Air Conditioning Cooling System;

-Evaporator Chiller Water Inlet/Outlet Temperature: 12°C/7°C; Condenser Cooling Water Inlet/Outlet Temperature: 30°C/35°C;

-Heat Recovery is an optional.

-Single Compressor Unit Model: LTLS-30W(R)S to LTLS-200W(R)S(Capacity 100KW-823.6KW/30Tons-250Tons)

-Double Compressors Unit Model: LTLS-60W(R)D to LTLS-400W(R)D(Capacity 200KW-2000KW/60Tons-500Tons)

Remark:1.Colling Condition: Chilled water in/out 12/7°C; Cooling water in/out 30/35°C;

2.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;

3.The data above is for R22, contact us if that for R134a,R407c and other refrigerant need;

4.There may be Changes for improvement without notice, confirm always before your order.

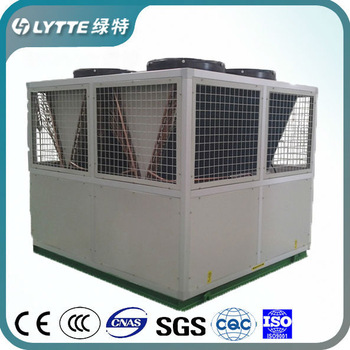

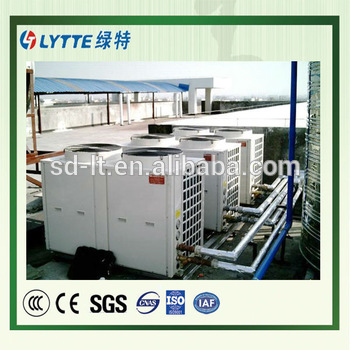

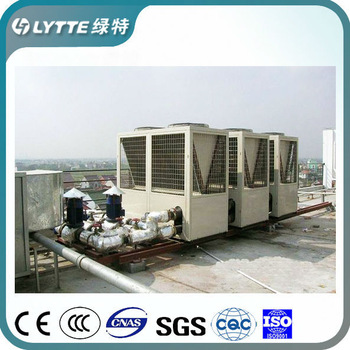

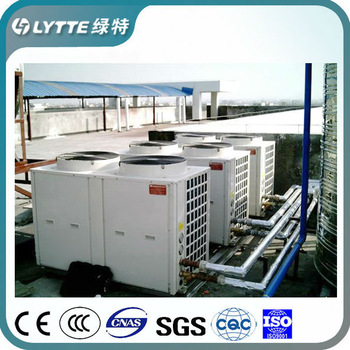

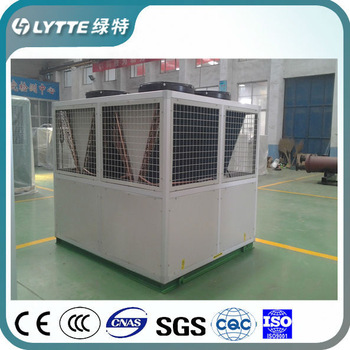

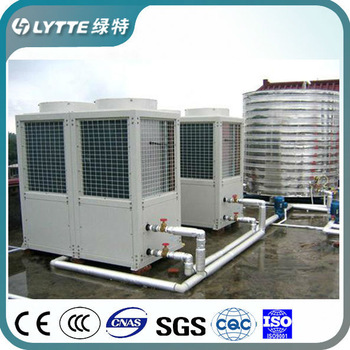

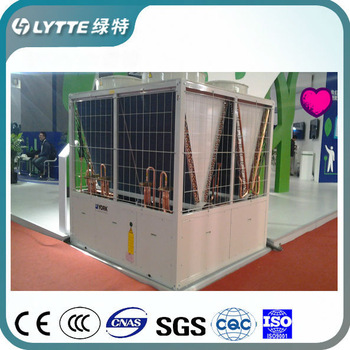

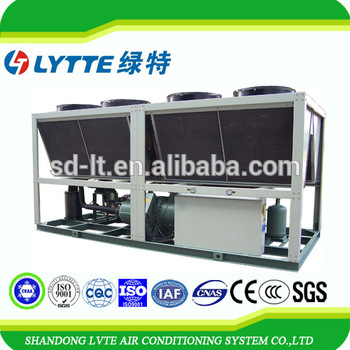

 Pictures and Specifications:

Why do we excel in HVAC manufacturing:

1.Manufacturer instead of trade company,We are manufacturer and naturally have advantages in quality management ,price,technical support,delivery time,etc. than trade company.

2.Always being Technology and quality utmost oriented Manufacturer. The founder and board chairman of the company MR wang is a specialist in environmental heating science and technology.We have been devoting to improve the technique and quality of our product every day since we established.

3.All kinds of authoritative third party certificates including CE,SGS,CRAA,ISO,China famous brand etc. issued to us for our excellence.

4.Various patents issued to us proves constant innovation we keep.

5.Full set of products in air conditioning and environment engineering field.Our wide variety of products facilitate you through total solution and one-stop packages.

6.Rich experience in air conditioning and environment engineering field.Since established in 2002,We have countless successful application cases including Hyundai group office building,Chinese Agriculture sciences academy office building,Cherry automobile group office building etc.

7.Good quality with Competitive Price.Unlike other brands,We are both competitive at quality and price,the fair price ensure you the utmost product cost performance.

8.Strict supplier access system and only procuring famous brand principle.Always applying famous brand components in our product ensures the durability and stability of our product.The extensive utilization of branded components in our product makes high quality performance apparatus for our customer.

9.Timely warmly service and good after-sales service.We will interactive with you timely with professional and warmly respond.After-sales service and support will be offered within 24 hours since your call.

Any trial order,OEM,ODM Order is available and sincerely welcomed!
