6010N Series Fire Smoke Damper Actuator

6010N Series Fire Smoke Damper Actuator

FOB Price:
USD 45.54-46.68 / Piece
Min.Order Quantity:
1 Piece
Supply Ability:
3000 Piece per Week
Port:
Tian jin or Shang Hai
Place of Origin:
China
Payment Terms:
T/T
Brand:
PHC
Products Model:
6010N
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: PHC

    Model Number: 6010N

    Place of Origin: China

Packaging & Delivery

  • Packaging Details: Carton
  • Delivery Detail: Product finish on the day of shipment

Specifications

6010N-24-S(with Aux. Switch):$45.54

6010N-230-S(with Aux. Switch):$46.68



Summary

6010N Series Fire Smoke Damper Actuators

(Non-spring return ) could be used to adjust

and control damper in HVAC systems.

The actuator motorized the damper or other

devices when power on.

Functions

● 2 and 3 Points on / off control

● Setting up running time independently.

● Screw terminal connection

● Square shaft: 12×12mm ( at most )

● Manual control by pressing slider.

● 2 SPDT fixed auxiliary switches as standard.

● Manual over ride by crank handle when required.

● Steel housing with anti-shock, compact and stability.

● Permanent sealed housing meets IP 54 Standard.

● Selectable direction of rotation by reversing actuator.

● Thermal sensor when requested.

● Actuators with 1m cable connection.

● Adapter supplied for Form Fit 8 or 10 mm square.

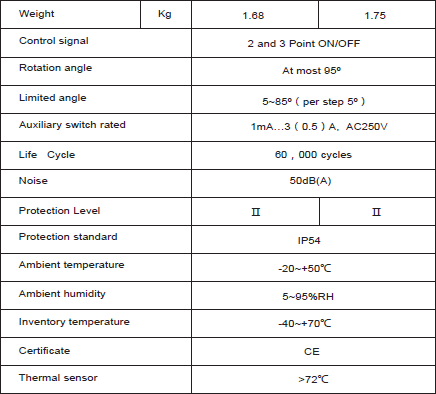

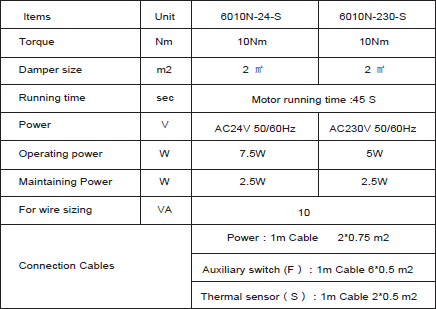

Specification

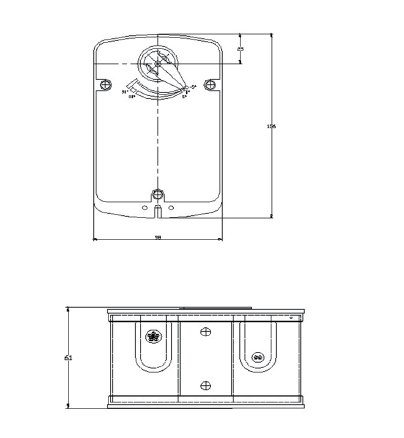

External Dimension and Installation (mm)
