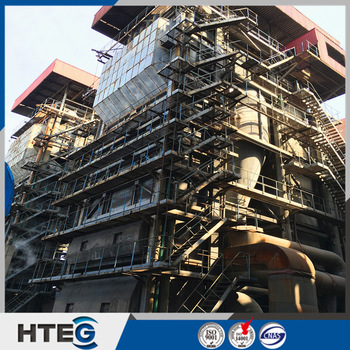

Reasonable Price Circulating Fluidized Bed Boiler for Power Station

Reasonable Price Circulating Fluidized Bed Boiler for Power Station

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Year

Port:

Qingdao or other port

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

HTEG

Products Model:

Customized

Products Details
Company Profile

Quick Details

Brand Name: HTEG

Model Number: Customized

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Seaworthy Packing
Delivery Detail: Shipped in 15 days after payment

Specifications

Reasonable Price Circulating Fluidized Bed Boiler for Power Station

Technical Parameters:

Model Item	SHX4-1.25-A	SHX6-1.6-P	SHX8-2.5-H	SHX10- 2.5/450-A II	SHX12-2.5-W	SHX15-2.5-A	SHX20-2.5-W
Rated evaporation capacity (t/h)	4	6	8	10	12	15	20
Rated steam pressure(Mpa)	1.25	1.6	2.5	2.5	2.5	2.5	2.5
Rated steam temperature(℃)	194	204	226	450	226	226	226
Feed water temperature(℃)	105	104	104	105	70	105	104
Design fuel	Bituminous coal	Lean coal	Lignite	Bituminous coal	Anthracite	Bituminous coal	Anthracite
Package mode	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk

Features

1.The boiler heat efficiency is high,can reach 85% above,the combustion efficiency is generally above 95%,the energy saving effect is remarkable.

2.Less harmful gas emissions. In the fluidized bed, SO2 can be controlled in the environmental requirements.

3.Wide adaptability of coal.

4.Slag can be comprehensive utilization, slag containing carbon content generally below 2%, can be used for cement, brick, slag can be sold for 30 yuan per ton.

Related Products

	Enamelled Corrugated Sheet Baskets are a compact arrangement of profiled metal sheets placed in the Air Preheater rotor in two or more layers and plays the most important role in the process of heat recovery. The bottom layer, or the cold end layer, is where the air enters and the flue gases are discharged, and is therefore, subjected to severe corrosion due to acid dew point. The Material of Construction and the Profile design of the Heating Elements depends on the operating conditions, quality and type of fuel, etc.

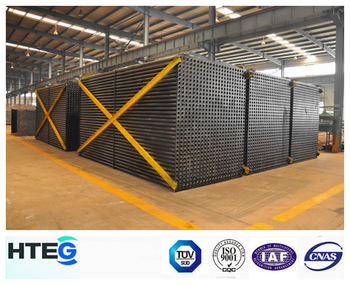

	H-economizer two rectangular fin, similar to a square, its edge length for the fluorescent tubes of 2-fold, an expansion of the heating surface. H-economizer flash resistance welding processes used, the welding seam after the high rate of fusion, weld tensile strength, and has good thermal conductivity. H-economizer can also manufacture dual tube "double H"type fin tubes, its rigid structure, and can be applied to a longer tube row occasions.
	The company developed enamelled tubular air preheater, corrosion resistance, wear resistance, surface smooth, non-blocking ash flow resistance is small, life-style of the original steel preheater 5 times more reasonable structure, easy installation and maintenance, be able to protect the safe operation of the boiler unit.

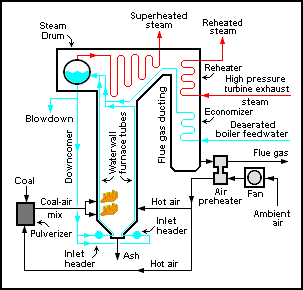

	Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.
	It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have 32, 38, 42 or other types of specifications, according to user's needs separately.
	The header is consisted of header body ( large diameter seamless steel tube ), end cover ( enclosure ) , tube joint, hand hole, thermomter socket and so on. And the welding checking is strictly proceeded as the welding process to guarantee 100% qualified products.

After-sale Service of Product

1 Guarantee period is one year , since the date of purchasing.

2 24- hour technical supports

3 Design product according to the customers requirement.

4 We provide available price.

Our Company

Shandong Hengtao Energy Saving & Environment Protection Co., Ltd. established in 2003, which is specialized in designing, manufacturing, engineering, supplying of boilers, boiler components and boiler auxiliaries.

Our main products including CFB boiler, coal fired boiler and boiler parts such as tubular air pre-heater, rotary air pre-heater, super heater, re-heater, header, membrane water wall and economizer. We are also the provider for boiler integrated energy-saving solutions and we have EPC qualification.

Customers

Certificates

We have ISO9001, ISO14001 certificates.

We conform to ASME standards.

Contacts

FAQ:

1. How to get a boiler price list?
Please tell us below to confirm a boiler model and offer the right boiler price:
1) what is the application ?
2) what is the capacity do you need?
3) what is the pressure you need.
4) which fuel do you want to use for the boiler, coal, biomass, gas & oil, or others?

2. Advantage of boiler Products
1) We have wined a good reputation in domestic cities,and constantly exported to Southeast Asia, Central Asia , Europe and other countries and regions.
2) About our products,we supply A class boiler,A1/A2 grade pressure vessel manufacturing qualification

3. How long is the product warranty period ?
Our product have at least 12 months warranty period .

4. Where can buy the boiler and other part instrument?
Our company can provide boiler body and auxiliaries for you at any time, please tell us your boiler model.

5. What about after-sale service?
We will supply professional after-sale service team as soon as we receiving your problem feedback, we will dispatch our engineers to your country and solve your problems right now.
