Best quality Superelastic nitinol rod for research

Best quality Superelastic nitinol rod for research

FOB Price:

US 100-300 / Kilogram

Min.Order Quantity:

1 Kilogram/Kilograms

Supply Ability:

10 Ton/Tons per Month

Port:

shenzhen, shanghai,qingdao

Place of Origin:

Shaanxi, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

Hanztech

Products Model:

nitinol bar

Products Details
Company Profile

Quick Details

Brand Name: Hanztech

Model Number: nitinol bar

Place of Origin: Shaanxi, China (Mainland)

Packaging & Delivery

Packaging Details: About Superelastic nitinol rod for medical equipment, we pack with wooden box Also availalbe per client's request.
Delivery Detail: 10-15 workdays

Specifications

Best quality Superelastic nitinol rod for research

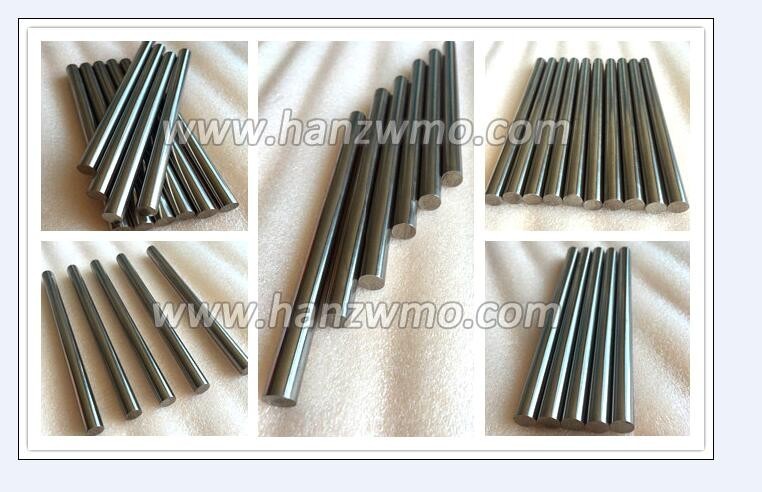

Product Show

Quick Details

Name	Grade	Transformation Temperature AF	Form	Standard
Shape Memory Nitinol Alloy	Ti-Ni-01	20 °C~ 40 °C	Wire, bar, plate	Customer specified or Industry standard
Shape Memory Nitinol Alloy	Ti-Ni-02	45 °C~ 90 °C
Superelastic Nitinol Alloy	TiNi-SS	-5 °C~ 5 °C
Low Temperature Superelastic Nitinol Alloy	TN3	-5°C~ -15°C -20°C~ -30°C
Low Temperature Superelastic Nitinol Alloy	TNC	-5°C~ -15°C -20°C~ -30°C
Medical Nitinol Alloy	TiNi-SS	33 ± 3 °C		ASTM F2063
Narrow Hysteresis Nitinol Alloy	Ti-Ni-Cu	As-Ms ≤ 5 °C	Wire, bar
Wide Hysteresis Nitinol Alloy	Ti-Ni-Fe	As-Ms ≤ 150 °C	Wire, bar

1..Size: superelastic nitinol rod for medical application

Bar:Dia 7mm—50mm

Wire:Dia0.05-6.0mm

Sheet: Thickness 0.3-10.0mm Width≤400mm Length≤2500mm

2.Surface State Options: superelastic nitinol rod for medical application

♣ Black oxide surface

  ♣ As cleaned surface
  ♣  Medical grade polished surface
  ♣  Centerless ground surface

3. Chemical composition: superelastic nitinol rod for medical application

Ni: 55.4% --56.2% C≤0.07 H≤0.005 O≤0.050 N:≤ 0.05

4.Application:

cell phone antenna, children's toys, experimental materials, glasses leg, women bra, Women's Sports Central,arch wires, instruments, and medical equipment, such as surgical stitching wire,

birth control loop and other areas of high-quality memory alloy wire.

ASTM F2063 polished nitinol dental implant wire

5.Standard: Best quality Superelastic nitinol rod for research

ASTM F2063-05 Q/XB1516 Customer specified or Industry Standard

Alloy		Chemical composition	A_f (Fully annealed)	Min. elongation to failure [%]	Max. Residual elongation after 6% strain [%]	Main Applications	Specifications
Superelastic Ni-Ti alloy	TiNi-SS	Ti-50.8at%	-5°C ± 5°C.	10	0.1	Eyeglass Frames, Cellular Phone Antennae, Bra Underwire	Q/XB1516.2 Q/XB1516.2
Superelastic Ni-Ti alloy	TN3 TNC	TiNiVAl TiNiCr	-40°C ~50°C	10	0.1	Eyeglass Frames, Cellular Phone Antennae, Bra Underwire	Q/XB1516.2 Q/XB1516.2
Body temperature Ni-Ti alloy	TiNi-YY	Ti-50.7at%Ni	Functional Af=33 ± 3	1 5	0.1	Implantable devices,Bone staples Vascular Stents	ASTM 2063
Body temperature Ni-Ti alloy	Ti-Ni-01	55.6~55.8 wt%Ni	20 - 40	15	0.1	Guide wires, Stents Orthodontic Arches	Q/XB1516.1
High temperature Ni-Ti alloy	Ti-Ni-02	54.8~55.5wt%Ni	45 - 95	10	0.1	Implantable active devices, Surgical tools, Thermostats Coffeepots	Q/XB1516.1
High temperature Ni-Ti alloy	TiNiCu	TiNiCu	As-Ms ≤ 5	10	0.1		Q/XB1516.1

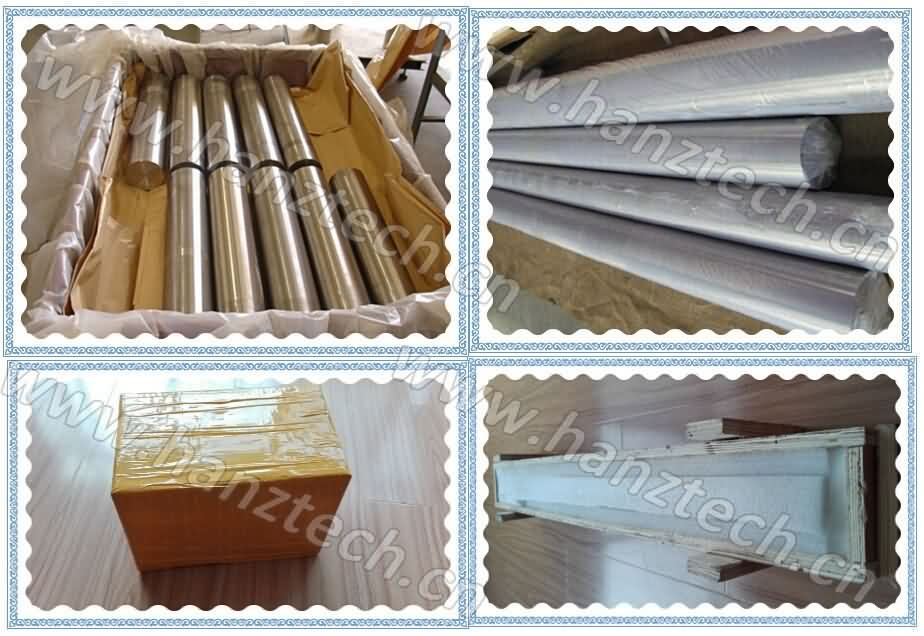

Packaging and Shipping

Packaging

• Carton with water proof paper and protective foam inside

• Standard wooden case

• As cilents' requirements Manufacturer dia 0.14mm polished coiled nitinol wire

Shipping of superelastic nitinol rod for medical application

TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport, Railway Transport are available.

Depends on your demands, we will try our best to choose the most suitable way for you.

After we send the product, we will send the track number to you with Email, and also we will track

this order until you can received successfully.
