Brand Name: hanztech
Model Number: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23,etc
Place of Origin: Shaanxi, China (Mainland)

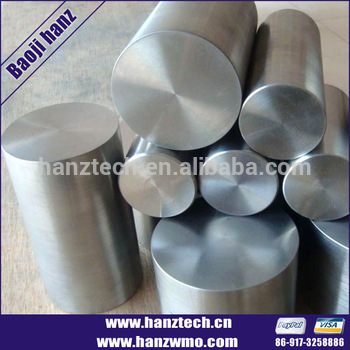

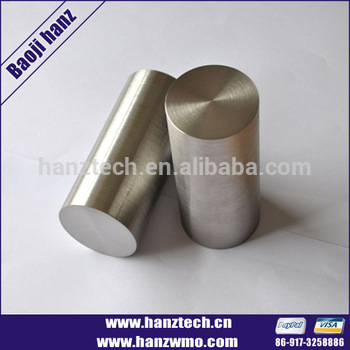

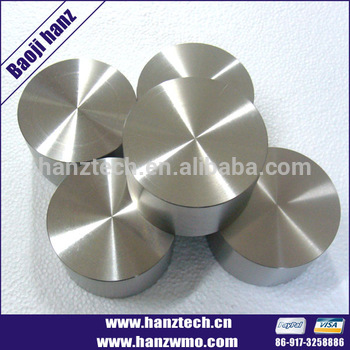

Astm f136 titanium bar
| Item name | Medical grade 2 titanium rod |
| Standard | ASTM F136,ASTM F67 ,ASTM B348, ASTM B381, AMS 4928 |
| Material | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23, |
| Diameter | 1.0-200mm |
| Length | <6000mm |
| Shape | 1. Round bar 2. Square bar 3. Hexagonal bar |
| Surface | acid pickling surface, polished surface, black surface |
| Conditon | Cold rolled(Y), Hot rolled(R), Annealed (M) |
| technology | hot forged , hot rolled , machining |
| Application | 1. Axis machining |
| 2. the frame of the planes | |
| 3. the equipments used in the seawater | |
| 4. titanium flanges and titanium screws | |
| 5. badminton racket ,cars | |
| 6. electroplating equipment | |
| 7. conductive material | |
| 8. medical industry | |
| 9. nuclear industry | |
| 10. construction industry ,etc | |
Special requirements can be customized ! |
|
Astm f136 titanium bar
Chemical Composition
Chemical Composition |
|||||||||||
Ti |
Al |
V |
Mo |
Ni |
Pd |
N |
C |
H |
Fe |
O |
|
GR1 |
balance |
/ |
/ |
/ |
/ |
/ |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
GR2 |
balance |
/ |
/ |
/ |
/ |
/ |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
GR3 |
balance |
/ |
/ |
/ |
/ |
/ |
0.05 |
0.08 |
0.015 |
0.30 |
0.35 |
GR4 |
balance |
/ |
/ |
/ |
/ |
/ |
0.05 |
0.08 |
0.015 |
0.50 |
0.40 |
GR5 |
balance |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
GR7 |
balance |
/ |
/ |
/ |
/ |
0.12~0.25 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
GR9 |
balance |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
GR12 |
balance |
0.2~0.4 |
0.6~0.9 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
|||
GR23 |
balance |
5.5~6.5 |
3.5~4.5 |
0.03 |
0.08 |
0.0125 |
0.25 |
0.13 |
|||
Machining Process
Astm f136 titanium bar
Feature
1.Low Density
2.Excellent Corrosion Resistance in acid,alkali and salt
3. High heat transfer capability
4. Good biocompatibility
5. Low elasticity module
6. Low thermal expansion coefficient
7.Superior strength-to-density ratio
8. Good mechanical properties at low and high temperature
Astm f136 titanium bar
We are manufacturer with 8 years' experience, supplying products to different customers.
And we also want to offer you what you need.

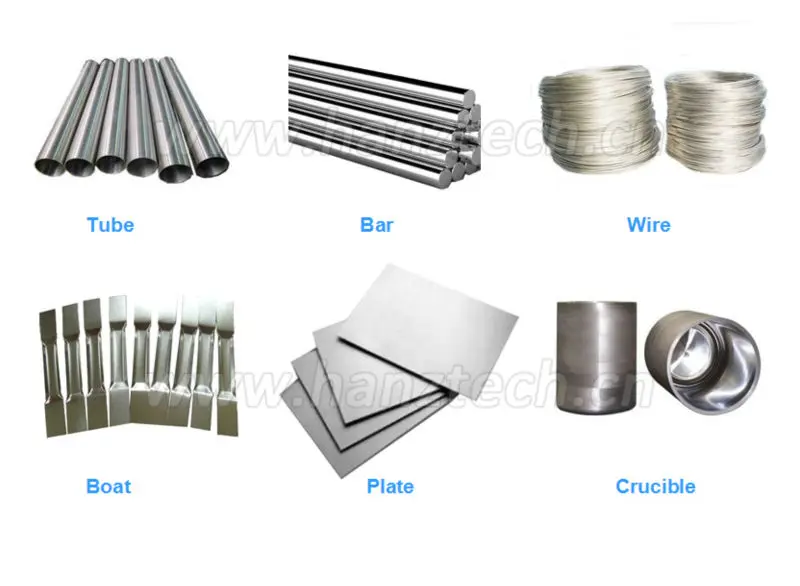

so please let me have the opportunity if you need the plate, bar, rod, foil, wire and tube
of tungsten, molybdenum, titanium and their alloy.
Package: Plastic bags and form paper as inside, plywood case as outside.

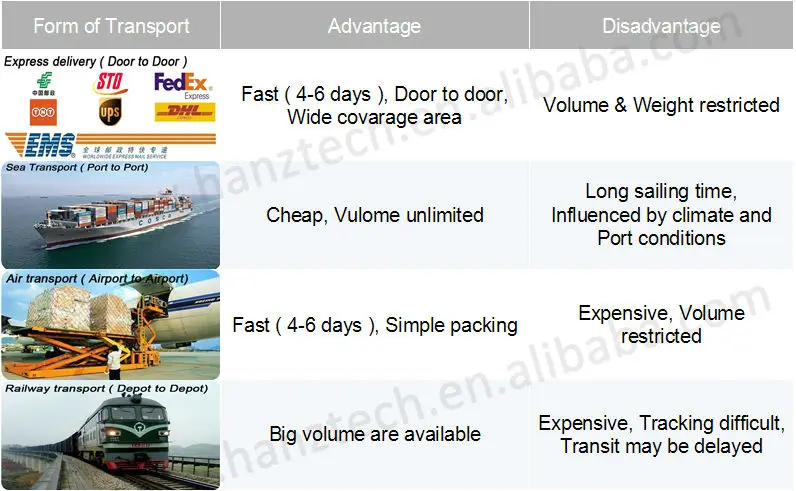

Shippment: TNT, UPS, FEDEX, DHL, Air transport, Sea Transport,etc.
About gr5 astm f136 titanium bar,we will choose the fastest ,cheapest and safest way for you!
------------------------------------------------------------------------------------------------------------------------------------------
