CWX-15N 2-way DC5V 1/2inch automatical control Stainless Steel 304 for water treatment

CWX-15N 2-way DC5V 1/2inch automatical control Stainless Steel 304 for water treatment

Parameteters
Rated Voltage: DC3-6V/AC/DC9-24V AC110V/220V
Rated Current: 45-100mA
Output Torque: 1.5NM-6NM
Valve Size(2way)
1/4"-1 1/4" (DN8-DN32) Brass BSP Thread Both Female/Male
1/2" -1" (DN15-DN25) SS304 BSP Thread Both Female/Male
1/2" ,3/4" (DN15,DN20) SS304 NPT Thread Both Female/Male
Valve Size(3way)
1/4"-1 " (DN8-DN25) Brass BSP Thread
1/2" (DN15) Brass NPT Thread
Open/Closed Time: 3-5 Seconds

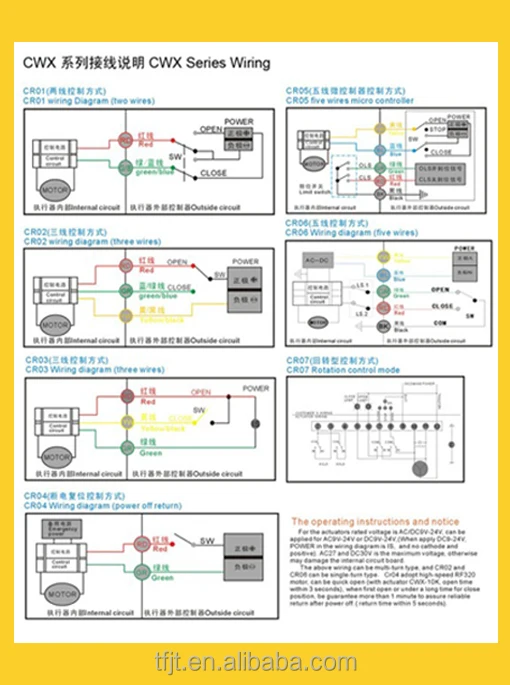

Control Mode: CR01/02/03/04/05/06
Enclosure: IP65
Working Pressure: Max1.0 Mpa
Medium Temperature: 0-90 Degree
Special Function: Position indicator/quick open
Product life: 100000 times

Products Chracteristic
1, smart shape, perform reliably, brass gear, PPO parts, large output
torque, long product life.
2, Electrical limit and machinery limit design, accurate position,
avoid gear and switch.
3, Multi-assembling, easy to install.
4, Float ball structure, no leakage, especially suitable for heavy
pollution conditions.
5, good substitution for solenoid valve.
6, High protection class, can be worked in moistconditions. IP65

Suitable for
1, IC card meters, heat energy meters, air-warm valve.
2, HVAC and fire work.
3, Water equipment, uto-controlwatersystem, industrial mini-auto
equipment
4, Irragation equipment, drinking water equipment, solar water heaters,
washing machins, water heaters, industrial
