Brand Name: CWX
Model Number: CWX-15Q.CWX-15N
Place of Origin: Tianjin, China (Mainland)

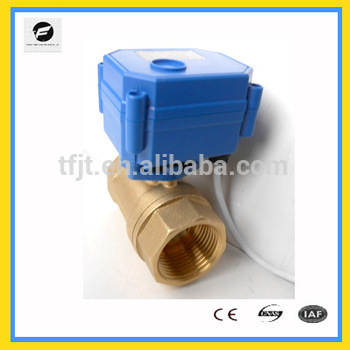

CWX15Q/N 2 way 9-24V ACDC , AC110V,AC220V electric motorized valve for water shut off system,water saving system,water leak detector
Technical Parameter:
Actuator rotation:90/180 degree
Actuator Motor:Reversible synchronous motor
Control wirng:2,3,5 wires/CR01 to CR06 Wiring
Medium temperature:0-100°C
Product life: 100,000 times
Rotation direction: Double acting
Special function:Position indicator;quick open
signal feedback,manual override
fail safe(auto-return) function
Working Medium:Pure water,water,50% glycol,Oil,Air
Actuator color:Black,Blue,Red
Actuator enclosure:IP65
Actuator output torque:15Q-1.5Nm,15N-2N.m,25S-2N.m,60P-6N.m
Power Consumption:15Q,15N,25S,20P<2W,60P<6W
Special function:Position indicator;quick open signal feedback,manual override fail safe(auto-return) function
Valve open/close time:15Q-3sec,15N-5sec,25S-7sec,60P-11sec
Valve thread Connection:GB/BSP/NPT
Valve Pressure:1.0Mpa/150psi/PN10
Valve body Material: Stainless steel (304, 316), Brass(Hpb58-3/59,Ni plated Brass
Valve Size: 1/4",1/2",3/4",1",1 1/4" ,8mm,10mm,15mm,20mm,25mm,32mm DN8,DN10,DN15,DN20,DN25,DN32
Working Medium:Pure water,water,50% glycol,Oil,Air
Actuator Working Voltage:5VDC,9-24VAC/DC,85-265VAC
Features:
1.All-metal reducing gear
2.Available for 3-6VDC,12VDC,24VDC,110V/120VAC 220/230VACwork volatge
3.Electrical limit and machinery limit design,accurate position,avoid gear with switch.
4.Excellent sealing performance what sealing class is IP65
5.Float ball structure,no leakage,especially suitable for heavy pollution conditions.
6.Good substitution for solenoid or pneumatic valve.
7.High flow capability, 3 times flow rate more than traditional zone valves
8.High protection class,can be worked in moist conditions.
9.Large output torque, which suitable for the pipe system with much scaling.
10.Long service life 80,000 to 100,000 circles
11.Low working current, only 50 to 150mA
12.Mini dimension suits for small equipment
13.Multi-angle assembling,easy to install.suitable for both vertical and horizontal installation
14.Multiple voltage and control mode, applicable to a variety of occasions.
15.Optional manual lever for convenient operation when power is off
16.Patent technology of scale prevention design which can postpone the scaling time.
17.Small volume, compact structure, small and exquisite outlooks, various assembling methods with manual control and switch indication.
18.Smart shape,perform reliably,brass gear,PPO parts,large output torque.
19.Smooth flow, no block up
20.Replacing solenoid valve, particularly when solenoid cannot work reliably
21.Tight close, no leakage
22.The power is cut off when the valve reaches the on/off position
23.The actuator cover adopts close structure which is resistive to humidity and ensures reliable operation for motor
24.This ensures long life service for the actuator
Material of main parts:
Actuator: heat-resistant ABS
Body: brass or stainless steel
Ball: brass or stainless steel
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Stem: brass or stainless steel
Applications:
1.Air-warm valve.HVAC and fire-flight sprinkler service,Fan coil and,hot water cycle system
2.Environmental Protection and drain water systemWater treatment project .
3.IC card meters,heat energy meters and reuse of rainwater and reuse of grey water system
4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5.Small equipment for automatic control,agricultural water conservation and water-saving irrigation system
6.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system.
7.Water,Irrigation system,cooling/heating system,Low voltage plumbing system
8.Water equipment,auto-control water system,industrial mini-auto equipment, Small equipment for automatic control
Paper Carton:
Large case:48x40x28(CM)/50-100pcs/0.054Cubic Meter
middle case:27x24x19(CM)/20-50pcs/0.012Cubic Meter
small case:13x10x8.5(CM)/1-2pcs/0.011Cubic Meter
mini motorized valve, actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, actuator valve, electric operated valve
Application:
1.HVAC
2.Pure water and water filter system and water treatment
3.Chemical process
4.Small equipment for automatic control
5.Replacing solenoid valve, particularly when solenoid cannot work reliably
6.Industrial humidifier
7.Water-saving shower system
8.Irrigation system
9.solar heater water system
10.water-cycle and offer-grid system
11. water and raw water piping systems, drainage and sewage piping systems,
12.salt water and sea water piping systems, acid and chemical solution systems and other industries.
13. food, environmental protection, light industry, petroleum, paper, chemicals, teaching and research equipment, and electric power industries of industrial automation control systems.
Features:
1).Smart shape,Perform reliably, large output torque, as long as 80000-100000 times.
MULTI-angel assembling,convenience for all kinds of requirements.
2).Float ball design,no leak, most suitable for heavy dirt and long time no action.
3).The conditions that solenoid valve can not be worked.
4). Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depend on the different type)
5). High protection class, can be worked in moist conditions.
Wire type: CR01-CR06(2,3,5wires)
Delivery details
Your item will be shipped within 48 hours in business days if payment for the order is cleared before 8PM PST daily (except Saturday, Sunday and Holidays). If there's an exception, we will inform you.
Buyer, as the importer, is responsible for paying the customs clearance cost or related TAX.
