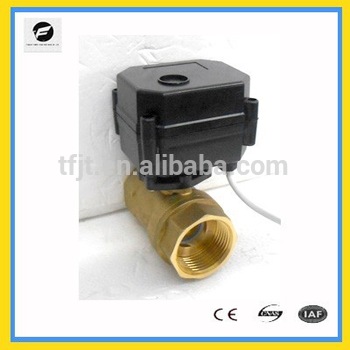

G 1" DC12V 2-way Brass motor Mini Motorized Ball Shut-Off Valve for water leakage detection system and equipement

G 1" DC12V 2-way Brass motor Mini Motorized Ball Shut-Off Valve for water leakage detection system and equipement

1.Small and compact
2.Modern
3.12 volt power
4.Digital read out
5.3/4", 1" 5/4"available,

Low voltage12Volt DC operation at very low current.
Return default positon when power off.
Zero current drain in default state

3-way motorized ball valve in L or T type,CE and ISO approval.

2-way motorized ball valve(electric actuated ball valve) is also available now,

Size:1/2",3/4",1",11/4" 15mm,20mm,25mm,32mm

Material:Brass or Stainless

Working pressure:150psi,10bar,1Mpa

Medium Temperature:0~100 centigrade

Open/Close:3-5 seconds

IP65 enclosure

2~5 wires ,signal feedback

Seal:EPDM,PTFE,VITON,

Small&compact design and very light weight,very suitable for small equipment

Low current drain,much lower power consumption than standard three 3 zone motorized ball valve,

Best economic alternative to solenoid valves

Long servicing life:100000 times.

Application:Solar heating system,hot water heating and solar glycol loop),ideal for off-grid system.

Domestic water,

Irrigation system

Under-floor heating system

Low voltage plumbing service
