Best price Wood pellet coal fired steam boiler

 Coal/solid fuel fired steam boiler specifications

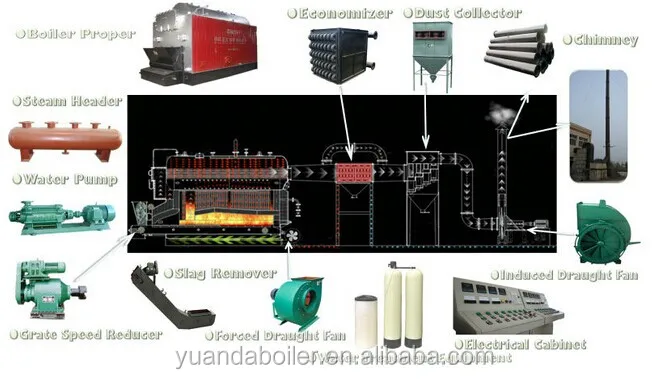

DZL series boiler is fire and water tube chain grate 3 return sboiler.The fire is refracted through the back

arch and transferred into the front smoke box through the two sides of host combustion chamber,then refracted

into the thread smoke tube of boiler drum from the front smoke box, through the back smoke box going into the

economizer,and then injected into the atmosphere from the induced draft fan drafting through the chimney flue

to the chimney.

1. Could you tell us your steam capacity?

In general, DZl series single drum steam boiler is suitable for the steam capacity from 1ton to 10ton.If need more

big steam capacity,need to use double drum steam boiler(in this case,pls see the foling,have detail introduction)

2.What's the boiler working pressure?

About pressure,pls tell us the actual pressure you need, the common type pressure have 4bar,7bar,10bar,13bar,16bar,20bar....

3.If you use Coal Fuel, pls notice the coal type.

   If choose biomass fuel, need to tell us the fuel size.Then we will give you the detail plans.

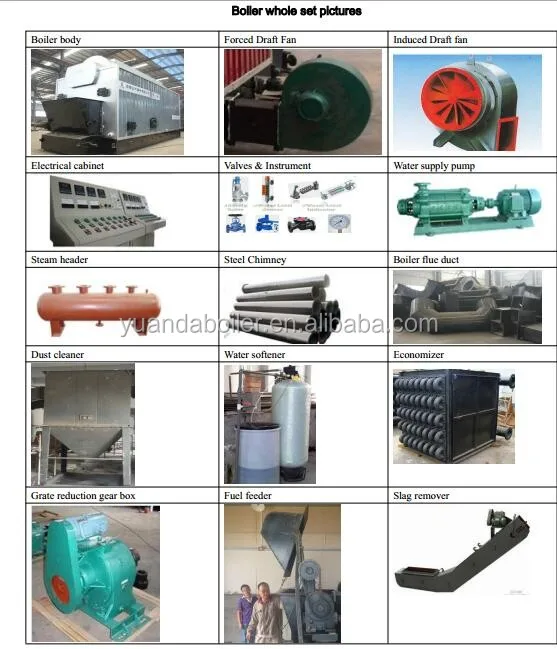

4.Which parts will be included in the boiler?

 ID Fan,fd fan,electric control system,valves&meters,grate speed reducer,water pumps,steam header,dust cleaner,water softener,chimney,smoke duct,fuel feeder,slag remover,economizer.We also could supply plc invert control system,water scrubber cleaner,bag type filter,steam storage tank,air preheater or other boiler parts.

1. Could you tell us your steam capacity?

In general, DZl series single drum steam boiler is suitable for the steam capacity from 1ton to 10ton.If need more

big steam capacity,need to use double drum steam boiler(in this case,pls see the foling,have detail introduction)

2.What's the working pressure?

About pressure,pls tell us the actual pressure you need, the common type pressure have 4bar,7bar,10bar,13bar,16bar,20bar....

3.If you use Coal Fuel, pls notice the coal type.

   If choose biomass fuel, need to tell us the fuel size.Then we will give you the detail plans.

4.Which spare parts about the boiler?

 boiler fire grate,water level gauge,stop valve,pressure gauge and so on

About Yuanda Boiler

- Established in 1956 year

- State Certificated Boiler Manufacturer

- China Industrial Boiler Association Member

- China Welding Association Member

- China Honoring & Credible Enterprise

- ISO9001-2000 Quality Management System.

So far,we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America.
