500kg Half Ton Gas Fired Steam Boilers WNS0 5 1 0 Q

500kg Half Ton Gas Fired Steam Boilers WNS0 5 1 0 Q

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Ton/Tons per Week

Port:

Shanghai, Qingdao, Tianjin, or other ports

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,0.5ton steam boiler

Brand:

Yuanda

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda

Model Number: WNS

Place of Origin: Henan, China (Mainland)

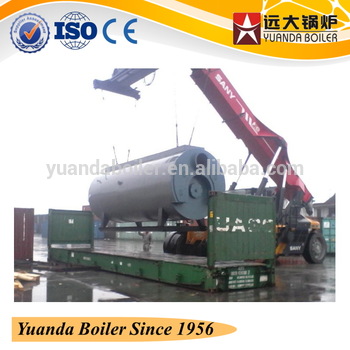

Packaging & Delivery

Packaging Details: Package of Horizontal Structure 0.5 ton Gas Steam Boiler For Sale, boiler proper, nude packing. Auxiliary machines: wooden cases. For marine shipment, 20'ft container.
Delivery Detail: 0-30days after order confirmed

Specifications

500kg Half Ton Gas Fired Steam Boilers WNS0.5-1.0-Q

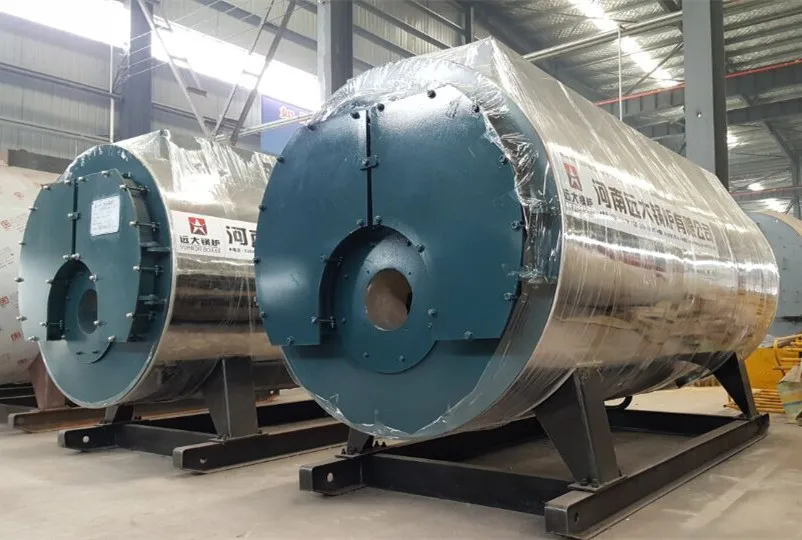

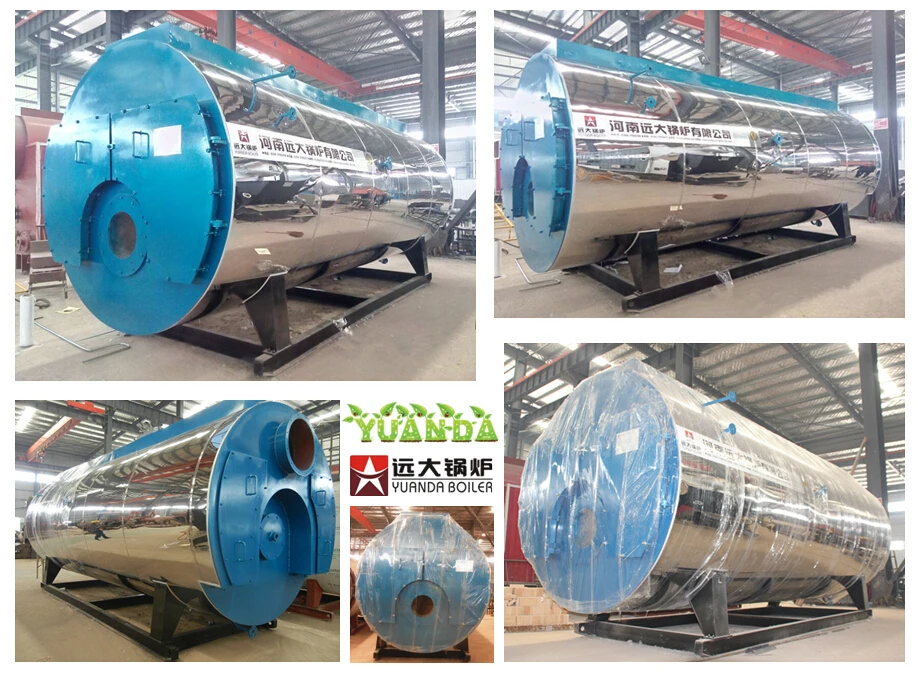

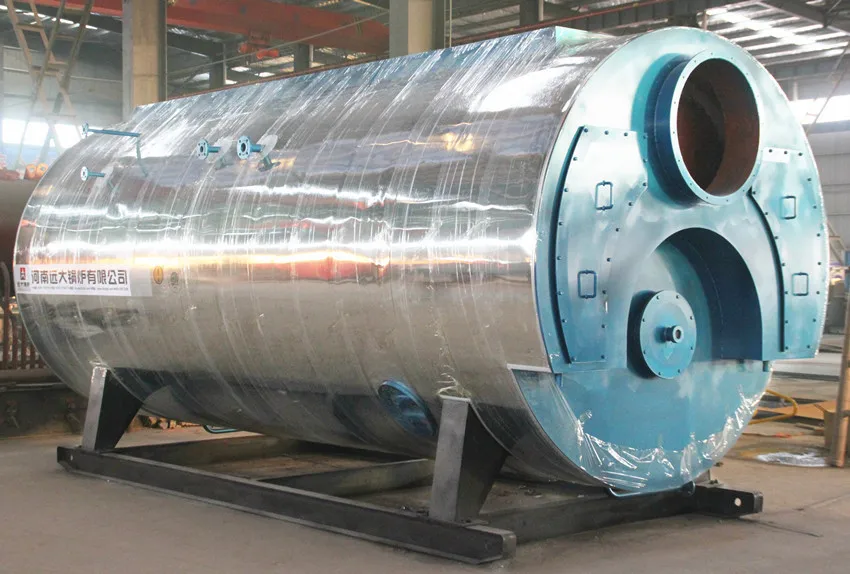

Product Overviews

WNS industrial low pressure horizontal single drum fire tube three pass wet-back gas fired steam boilers are single drum horizontal structure, large space corrugated furnace, threaded tubes, wet-back reversal chamber, equipped with brand burner, such as Baltur, Riello, Oilon, Weishaupt. High efficient insulating material greatly prevents heat loss.

WNS industrial low pressure horizontal single drum fire tube three pass wet-back gas fired steam boilers are suitable for NG natural gas, CNG(Compressed Natural Gas), LNG (Liquefied Natural gas), LPG (Liquefied Petroleum Gas), City gas, biogas, waste gas,etc., which are ideal choices for providing steam for food industry, texitile industry, chemical industry, pharmaceutical industry, garment factories, laundry rooms, plastic plants, other factories and industries.

Products Characters

1.Large combustion chamber with low heat release for complete combustion.

2.Rear smoke box includes slip-on stack connector and features hinged and davited rear door with access door with observation port.

2.Front doors are hinged, bolted and insulated to provide ready access to all firetubes.

3.Large size manholes are standard on units. Cleanout hand holes are furnished in the bottom of the boiler shell.

4.Insulated with high-density fiberglass, the shell is covered with grip jacketing and spray baked on powder coat finish.

5. steel firetubes are rolled and beaded on power boilers.

6.Twin lifting lugs are securely welded to the top of the shell.

7. Heavy steel support legs on skids provide support for the boiler & burner.

8. 500kg Half Ton Gas Fired Steam Boilers WNS0.5-1.0-Q

Auxiliary Machines

Henan Yuanda Boiler Company provides a complete line of boiler room peripherals and auxiliary equipments, such as burners, water pumps, electric cabinet, PLC control, water treatment equipments, condensor, meters and valves, exhausted gas vent, gas stacks.

Specifications

Specification Datas of 500kg Half Ton Gas Fired Steam Boilers WNS0.5-1.0-Q

Item	Datas
Product name	500kg Half Ton Gas Fired Steam Boilers WNS0.5-1.0-Q
Rated steam capacity	500kg/h, 0.5ton/h
Rated working pressure	7bar, 10bar
Rated steam temperature	171C, 184C
Rated feed water temperature	20C
Hydraulic test pressure	14bar
Radiation heating area	3.762m2
Convection heating area	6.88m2
Design fuels	natural gas, LPG, LNG, CNG, waste gas, biogas, city gas, propane
Boiler drum water volume	1.42m3
Economizer heating area	6.704m2
Design efficiency	92.3%
Exhausted gas temperature	119.8C
Boiler proper dimensions	300015001810mm
Boiler proper weight	3.5ton
Marine shipment	20'ft container

Technical datas of WNS Gas Fired Steam Boilers

Steam Boiler Models	Rated steam capacity(t/h)	Rated working pressure (bar)	Feed water temperature (℃)	Rated steam temperature (℃)	Fuel consumption
Steam Boiler Models	Rated steam capacity(t/h)	Rated working pressure (bar)	Feed water temperature (℃)	Rated steam temperature (℃)	natural gas(m3/h)
WNS1-1.0-Y(Q)	1	10	20	184	84.2
WNS 2-1.25-Y(Q)	2	13	20	194	165
WNS4-1.25-Y(Q)	4	13	20	194	323.6
WNS6-1.25-Y(Q)	6	13	20	194	450
WNS8-1.25-Y(Q)	8	13	105	194	642
WNS10-1.25- Y(Q)	10	13	105	194	805

Finished Boiler Room

Each boiler is compact, easily transported and quickly installed. The system can be supplied from our standard range or specially built to the customers' requirement. Fully automatic control can be included as well as monitoring devices, feedwater conditioning and all the necessary fittings, pipe work and electrical wiring.

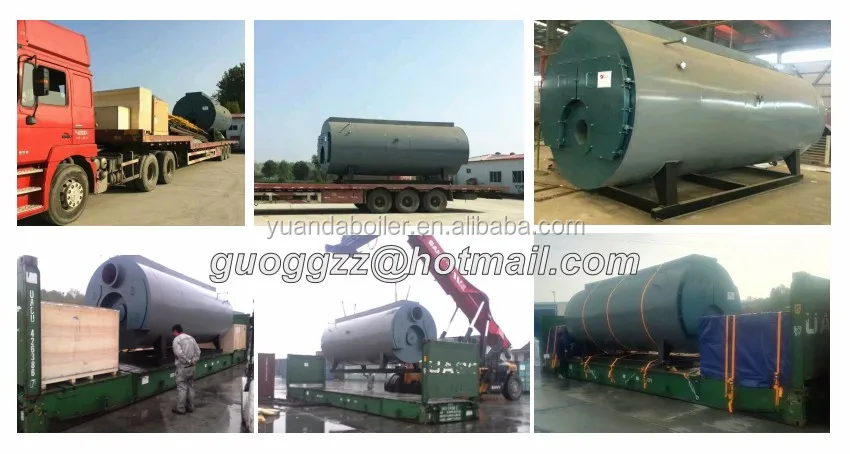

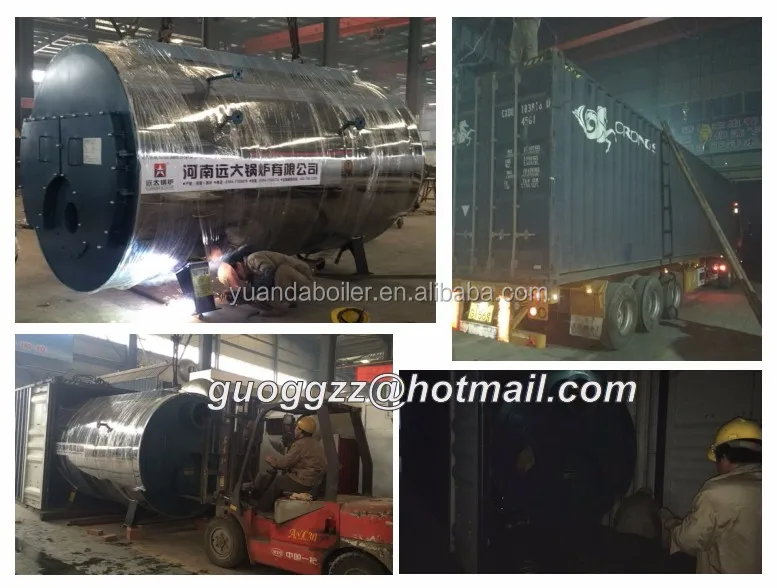

Delivery

Each unit is tested and inspected and registered with the National Board of Boiler and Pressure Vessel Inspectors. All the boilers must receive factory tests to check the construction, controls, and operation of the unit.

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
