30 bhp 40 bhp Gas fired Small steam boiler

FOB Price:

US 5000-10000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Ton/Tons per Year

Port:

Shanghai,Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

LHS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: LHS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy packing
Delivery Detail: 30 days

Specifications

Oil or Gas Boiler Automatic gas fired vertical boiler, Small gas steam boiler

Model	LHS0.3-0.4-Y(Q)	LHS0.5-0.4(0.7)-Y(Q)	LHS1-0.4(0.7)-Y (Q)
Rated evaporation ( t/h)	0.3	0.5	1.0
Rated steam pressure( Mpa)	0.4	0.4/0.7	0.4/0.7
Feed water temp (°C )	20	20	20
Rated steam temp(°C )	151	151/170	151/170
Applicable fuel	Light diesel ,Nature gas, Coal gas, Liquefied petrochemical gas
Oil consumption(g/h) 10240kcal/kg	19.2	32	65
Nature gas(Nm³) 8000kcal/m3	25.5	42.5	84
Coal gas(Nm³) 3800kcal/m3	53	70.5	132
LPG(Nm³) 24000kcal/m3	9.3	15.5	28
Burner Power consumption(Kw)	0.37	0.55	1.4
Weight of the boiler body(Kg)	991	1657	2561
water capacry(m3)	0.54	0.81	1.3
Overall dimension (mm) Diameter x Height	988x1956	1158x2190	1358x2468

Small gas steam boiler
1. Applicable fuel: Nature gas,LPG,Coal gas

2. Providing steam for small steam capacity users

3.automatic boiler,make alarm when overpressure,water lackage,flamout,make boiler at safe status.

Small gas steam boiler structure

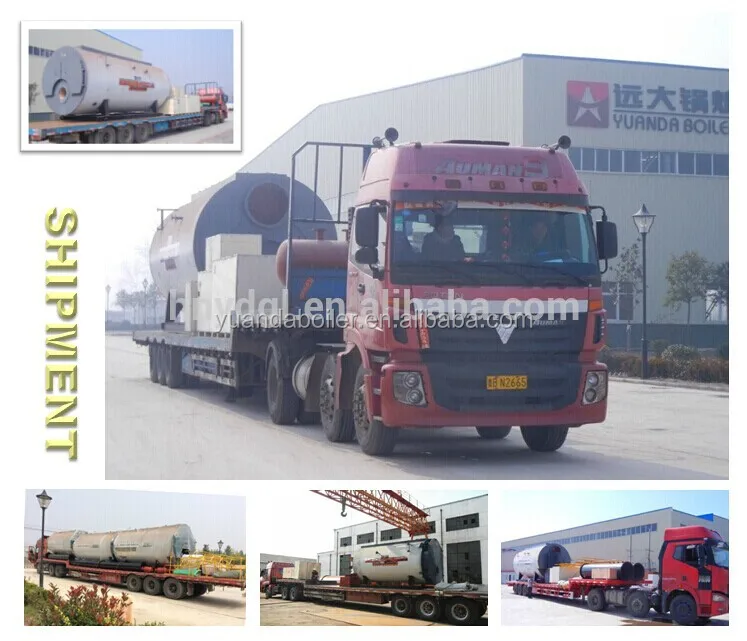

Packaging & Shipping

Company Information

About Yuanda Boiler

- Established in 1956 year

- State Certificated Boiler Manufacturer

- China Industrial Boiler Association Member

- China Welding Association Member

- China Honoring & Credible Enterprise

- ISO9001-2000 Quality Management System.

So far,we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America.

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
