Brand Name: Yuanda Boiler
Model Number: WNS
Place of Origin: Henan, China (Mainland)
Fire tube 1.5 ton steam boiler,100bhp gas steam boiler

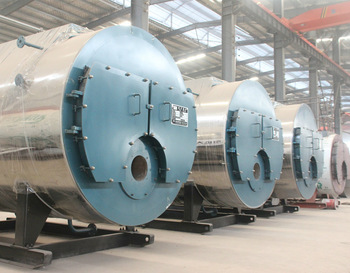

Overall pictures
Features:
1.3 pass wet back structure,high effiecincy gas steam boiler structure
2,Applied international latest technology for big volume combustion room design, and use brand burner machine
3,Corrugated furnace design make large heat transfer area and protect furnace
4,Using spirally corrugated tube , 1-2 faster heat transfer efficiency and remove hidden danger of welding cracks
5,Applied wet-back structure thatn can reduce faults rate and maintenance cost
6,Equipped with protection devices for overheating, overpressure, lacking water, leak detection, flameout etc.
1.5 ton gas steam boiler,100 bhp steam boiler apecifications
Gas steam boiler model | WNS1.5- 1.0-Y(Q) | ||
Rated evaporating capacity | t/h | 1.5 | |
Rated pressure | MPa | 1.0 | |
Feed water temperature | ° C | 20 | |
Rated steam temperature | ° C | 184 | |
Consumption | Light diesel(10240kcal/h) | Kg/h | 65.5 |
Heavy oil (10000kcal/h) | Kg/h | 61.3 | |
Natural gas (8500kcal/h) | m 3 /h | 76 | |
Liquid gas (24000kcal/h) | m 3 /h | 29 | |
City gas (3800kcal/h) | m 3 /h | 176 | |
Thermal efficiency | % | 92 | |
Main part weight | t | 4.3 | |
Main part Size(mm) | Length | 3561 | |
Width | 1690 | ||
Height | 1910 |
1.5 ton gas steam boielr internal structure
3PASS FIRE TUBE CORRUGATED FURNACE
Steam boiler Scope of supply
SN |
Item |
Unit |
Qty |
1 |
Boiler body with ladder |
Set |
1 |
2 |
Oil Burner |
Set |
1 |
|
Gas Burner |
Set |
1 |
3 |
Electrical Cabinet |
Set |
1 |
4 |
Instruments & valves |
Set |
1 |
5 |
Water feeding pump |
Set |
2 |
6 |
Chimney |
Set |
1 |
7 |
Water softener |
Set |
1 |
8 |
Steam header |
Set |
1 |
9 |
Economizer |
Set |
1 |

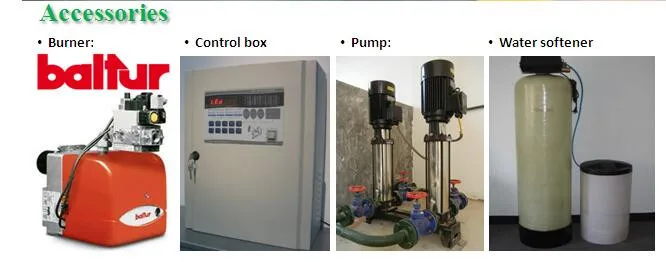

1.5 ton gas steam boiler accessories
Related products
Our Company Main product List
SZL 2 Ton-40Ton Biomass Boiler
DZL1 Ton-40 Ton Coal Boiler
WNS 0.5 Ton-20 Ton Oil/Gas Boiler
SZS 2 Ton-35 Ton Oil/Gas Boiler
DZH 1 Ton-6 Ton Wood Boiler
![]() |
![]() |
![]() |
Biomass Boiler 2 ton-8 ton package boiler | Coal boiler 1 ton-20 ton/hr | Manual wood/coal boiler 1 ton -6 ton/hr |
Customers visit
These are clients from Kenya for 2 ton steam boiler,Russia clients for 10 ton gas steam boiler,Malaysia clients for 6 ton gas steam boiler,Sri Lanka clients visit for 8 ton biomass steam boiler,Pakistan client visit for 10 ton coal fired steam boiler,Bangladesh clients visit for gas seam boiler,Ukraine clients visit for 4 ton pellet steam boiler.
How to select a gas steam boiler ?
1.kindly inform us your fuel type :natural gas,Lpg,LNG CNG
2.kindly advise us steam boiler or hot water boiler or thermal oil boiler
3.kindly advise us the boiler capacity
Your detailed requirements will help us to send you the accurate offer in early time.

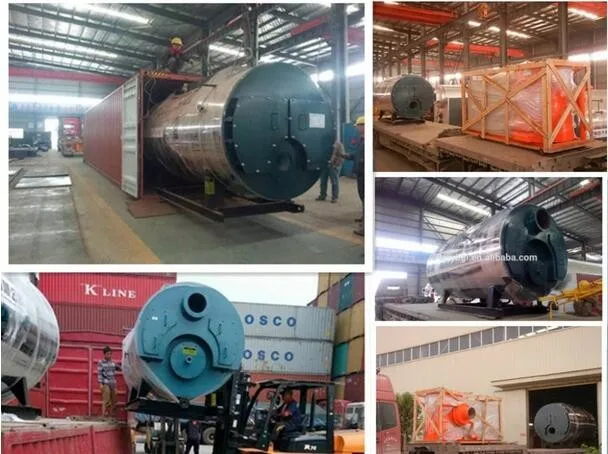

Gas steam boiler shhipment
