Top 10 sales 100 bhp 200 bhp 250 bhp coal fired boiler steam output

Top 10 sales 100 bhp 200 bhp 250 bhp coal fired boiler steam output

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Qingdao/Tianjin

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Henan yuanda brand 100bhp 200 bhp coal-fired steam boiler

Products Model:

DZL coal fired steam boiler

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda brand 100bhp 200 bhp coal-fired steam boiler

Model Number: DZL coal fired steam boiler

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: For this Top 10 sales 100 bhp 200 bhp 250 bhp coal-fired boiler steam ,we adopt nude package for the boiler body, wooden box package for the accessories and boiler room equipment
Delivery Detail: Shipped in 25 days after payment

Specifications

Top 10 sales 100 bhp 200 bhp 250 bhp coal-fired boiler steam output

Product Description

Top 10 sales 100 bhp 200 bhp 250 bhp coal-fired boiler steam here belongs to DZL boiler series ,Besides the fire-water tube,horizontal ,low pressure, industrial ,automatic these general features, it has the following advantages:

1.Spirally corrugated tube

Function:heat transfer enhancement, reduce the spirally corrugated tube numbers, and improve the suppleness to avoid the tube plate cracking.

2.Arched tube plate

Function:reduce the thermal stress of weld and improve the tube plate suppleness,meantime, simplify the structure and save the boiler room space.

3.Airfoil flue

Function:lower the high temperature of tube plate flue gas, and then reduce the thermal load of of the boiler bottom.

4.Complete protection device

Function:deal with the situation of overpressure,overtemperature,water shortage and flameout.

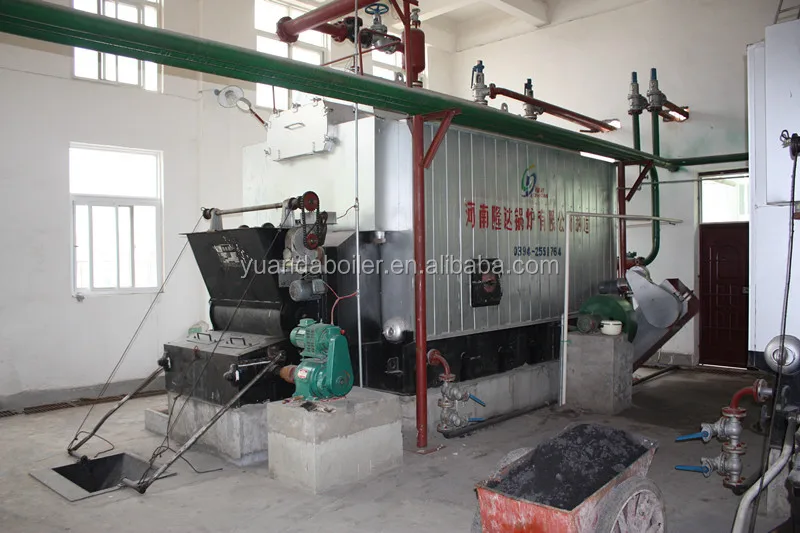

Boiler's running site:

Boiler techinical data:

100 bhp 200 bhp Coal-fired steam boiler	DZL1-1.0	DZL2-1.0	DZL4-1.25	DZL6-1.25	DZL10-1.25	DZL15-1.25	DZL20-1.25
Steam evaporation(t/h)	1	2	4	6	10	15	20
boiler pressure(Mpa)	1.0	1.0	1.25	1.25	1.25	1.25	1.25
Feeding water temp(°c)	20	20	60	60	105	105	105
Steam temp(°c)	184	184	194	194	194	194	194
Fire grate area(m²)	1.85	3.4	5.18	7.55	12	18	22.85
Boiler dimension(mm)	54882400 3332	59003100 3602	68293250 3834	82443880 4124	83954640 5416	96494220 5410	108844960 7610
Delivery mode	packaged boiler	packaged boiler	packaged boiler	packaged boiler	Assembly boiler	Assembly boiler	Semi-assembly boiler
Cold air temp(°c)	20	20	20	20	20	20	20

Boiler Accessories

The following is a brief picture of DZL boiler's accessories and boiler room equipment.from this picture,you could clearly see most of the boiler accessories and boiler room equipment,if you want to revise the boiler configuration, contact kara-0086-18638278138--freely,whatsapp/ wechat/skype are all ok,warm welcome!

To ensure the boiler's safe and high efficient running, we will provide the following complete machins for our cunstomers.

Boiler accessories
1. Induced fan	1set
2. Forced fan	1set
3. Electrical control cabinet	1set
4. Valves&Instruments	1set
5. Fire grate reducer	1set
Boiler room equipment
6. Water pump	1set
7. Steam header	1set
8. Chimney	1set
9. Gas duct	1set
10.Economizer	1set
11.Coal feeder	1set
12.Slag remover	1set
13.Dust catcher	1set
14.Water soften equipment	1set
We can also provide the air preheater,wet scrubber ,transformer according to the customer's requirements.

Packaging & Shipping

Wooden box and seaworthy package for the boiler when delivery to assure the safe,wooded box are prepared to transport many small and various spare parts,we will consider every small aspect to assure the boiler's safe while transportating.

Our Services

Warranty :

1.two-year warranty and full-life service for all our steam boilers.

2.60 years professional boiler manfuacturer since 1956.

3.X-ray test before delivery to guarantee the boiler's excellent quality.

4.NDT test before delivery to assure the boiler's excellent quality.

Accessories and boiler room equipment service:

1.A full range of original spare parts are available for all yuanda boilers.

2.free boiler online installation guidance service.

Product category

Quality is life for our company since found in 1956, during these 60 years , our company have created the following product categories:

1.DZL coal/biomass steam/hot water boilers, 0.5-20ton,1-2.5Mpa.

2.SZL coal/biomass steam/hot water boilers,0.5-20ton,10-25bar.

3.WNS gas/oil steam/hot water boilers,0.5-20ton,0.35-17MW, 0.7-2.5Mpa.

4.LHS vertical type gas/oil boilers, high automation and hign efficient.

5.pellet burner style steam boiler

6.modular steam boiler,transportable container boiler

7.vacuum boiler

8.electricity boiler

9.condensing boiler,over pass 100% heat efficiency.

Company Information

Quality is life for our company since founded in 1956, during these 60 years boiler manufacturing experience ,we have been committed to provide the best services to you !

---over pass 60000m2 factory area.

---Modern and advanced boiler manufacturing equipment.

---+500 working staff have been devoted to the boiler's innovation and producing.

---pls cotnact kara freely for the best coal-fired steam boiler prices! I will reply asap!

Workshop Scene/Quality control:

Company qualification:

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
