Brand Name: YuanDa
Model Number: DZL-Steam Output Wood Pallet Boiler
Place of Origin: Henan, China (Mainland)
Coal steam boiler
1.High efficiency >80%
2.Temperature.:100C~250℃
3.Pressure:4bar~30bar
4.Capacity:1ton/hr~30ton/hr
5.Simple maintenance:Suitable Preformed Hole
6.Meet customer's customized

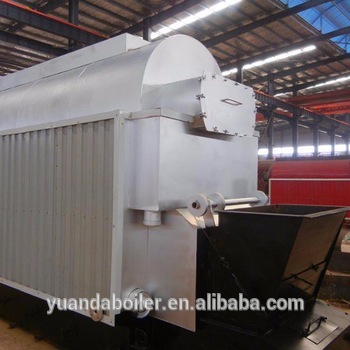

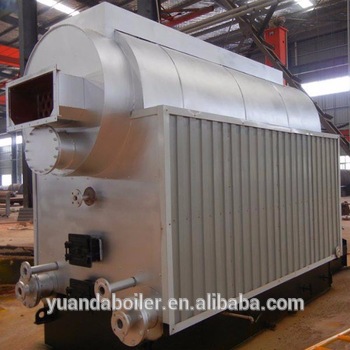

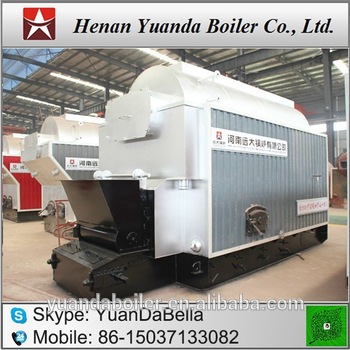

Factory Price Steam Output Wood Pallet Boiler
1.Adopting automatic screw feeding, with reasonable second air technology and half gasification structure
helping fuel combusting completely, the thermal efficiency can reach more than 90%. Stable flame, producing
steam cautiously.
2.Primordial dust emissions density is low:The volume of the coal-fired steam boiler is large and there is a dust
separation device, so the primordial dust emissions density will be controlled much lower than the standard allowed.
3.Control system: Installing microcomputer to operate with one-button, people just set the process, and it can
work automatically during the operating time. Once any abnormal situation to happen, stopping automatically
with sound-light alarm, and pointing to the failure code, so it saves time to maintain.
4.Our protected device is safe and reliable. Selecting superior pressure controller, safety valve, low water alarm,
overpressure alarm, over-temperature alarm, in order to make boilers operate safely.
5.Heating fast:There are many spiral gas tubes in the boiler and almost half of the coal fired steam boiler shell
can be heated, so the temperature can up soon.
6.It is simple to clean slag only after burning completing.
Boiler model | DZL1-1.25 | DZL2-1.25 | DZL4-1.25 | DZL6-1.25 | ||
Rated Evaporation | MW | 1 | 2 | 4 | 6 | |
Rating pressure | MPa | 1 | 1 | 1.25 | 1.25 | |
Feed Water Temp | °C | 20 | 20 | 20 | 20 | |
Rated Steam Temp | °C | 184 | 184 | 194 | 194 | |
Active Grate Area | m3 | 1.85 | 3.4 | 5.18 | 7.55 | |
Thermal Efficiency | % | 80.33 | 80.54 | 80.28 | 80.94 | |
Fuel Consumption | Kg/h | 118 | 238 | 472 | 685 | |
Weight | T | 14.2 | 23.2 | 28 | 47.6 | |
Dimension | mm | 5488X2400X3332 | 5900X3100X3602 | 6829X3250X3834 | 8244X3880X4124 |
Boiler model | DZL10-1.25 | DZL15-1.25 | DZL20-1.25 | DZL30-1.25 | ||
Rated Evaporation | MW | 10 | 15 | 20 | 30 | |
Rating pressure | MPa | 1.25 | 1.25 | 1.25 | 1.25 | |
Feed Water Temp | °C | 20 | 20 | 20 | 20 | |
Rated Steam Temp | °C | 194 | 194 | 194 | 194 | |
Active Grate Area | m3 | 12 | 18 | 22.85 | 27.5 | |
Thermal Efficiency | % | 80.91 | 81.5 | 81.44 | 81.37 | |
Fuel Consumption | Kg/h | 1128 | 1698 | 2241 | 3380 | |
Weight | T | 56 | ||||
Dimension | mm | 8395X4640X5416 | 9649X4220X5410 | 10884X4960X7610 | 10400X5617X7584 |
Product name | Quantity (set) |
Boiler Main Part | 1 |
Draft Fan | 1 |
Forced Fan | 1 |
Electric Controller | 1 |
Valve | 1 |
Pressure Gauge | 1 |
Grate Speed Reducer | 1 |
Water Pump | 2 |
Steam Distributor | 1 |
Smoke Chimney | 1 |
Smoke Ducting | 1 |
Economizer | 1 |
Fuel Feeder | 1 |
Slag Remover | 1 |
Ceramic-Cyclone | 1 |
Water Treatment Equipment | 1 |
Our Packaging and Shipping:
Fast Package Naked for main part (Boiler Host), wood case for auxiliary.
1) One Year Guarantee for Whole Machine
2) 24 Hours Technical Support by Email
3) Ues-friendly English software, user manual and detailed Videos / CD
