Coal biomass wood pellet steam boiler 1 ton 2 ton 4 ton 6 ton 8 ton 10 ton per hour price

Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Tianjin/Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Henan yuanda boiler

Products Model:

DZL solid fuel boiler

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda boiler

Model Number: DZL solid fuel boiler

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Nude package for the boiler body, wooden box for the accessories and boiler room equipments
Delivery Detail: 30 days in general, but we can advance the delivery time

Specifications

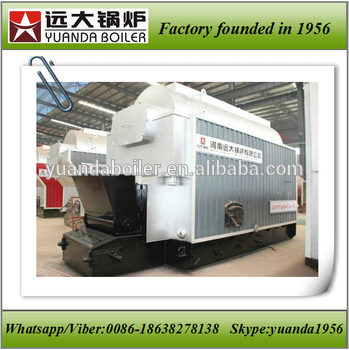

Coal biomass wood pellet steam boiler 1 ton 2 ton 4 ton 6 ton 8 ton 10 ton per hour price

Product Description

Coal biomass wood pellet steam boiler 1 ton 2 ton 4 ton 6 ton 8 ton 10 ton per hour price here belongs to DZL boiler series, Besides the fire-water tube,horizontal ,low pressure, industrial ,automatic

these general features, it has the following advantages :

1.Spirally corrugated tube

Function:heat transfer enhancement, reduce the spirally corrugated tube numbers, and improve the suppleness to avoid the tube plate cracking.

2.Arched tube plate

Function:reduce the thermal stress of weld and improve the tube plate suppleness,meantime, simplify the structure and save the boiler room space.

3.Airfoil flue

Function:lower the high temperature of tube plate flue gas, and then reduce the thermal load of of the boiler bottom.

4.Complete protection device

Function:deal with the situation of overpressure,overtemperature,water shortage and flameout.

Some types of automatic chain grate stoker (customized)----Solid fuel burns on that :

Boiler techinical data:

Solid fuel boiler model	DZL1-1.0	DZL2-1.0	DZL4-1.25	DZL6-1.25	DZL10-1.25	DZL15-1.25	DZL20-1.25
Steam evaporation(t/h)	1	2	4	6	10	15	20
boiler pressure(Mpa)	1.0	1.0	1.25	1.25	1.25	1.25	1.25
Feeding water temp(°c)	20	20	60	60	105	105	105
Steam temp(°c)	184	184	194	194	194	194	194
Fire grate area(m²)	1.85	3.4	5.18	7.55	12	18	22.85
Boiler dimension(mm)	54882400 3332	59003100 3602	68293250 3834	82443880 4124	83954640 5416	96494220 5410	108844960 7610
Delivery mode	packaged boiler	packaged boiler	packaged boiler	packaged boiler	Assembly boiler	Assembly boiler	Semi-assembly boiler
Cold air temp(°c)	20	20	20	20	20	20	20

Boiler accessories

The following is a brief picture of DZL boiler's accessories and boiler room equipment .

To ensure the boiler's safe and high efficient running, we will provide the following complete machins for our cunstomers.

Boiler accessories
1. Induced fan	1set
2. Forced fan	1set
3. Electrical control cabinet	1set
4. Valves&Instruments	1set
5. Fire grate reducer	1set
Boiler room equipment
6. Water pump	1set
7. Steam header	1set
8. Chimney	1set
9. Gas duct	1set
10.Economizer	1set
11.Fuel feeder	1set
12.Slag remover	1set
13.Dust catcher	1set
14.Water soften equipment	1set
We can also provide the air preheater,wet scrubber ,transformer according to the customer's requirements.

Packaging & Shipping

Wooden box and seaworthy package for the boiler when delivery to assure the safe .

Our Services

Warranty :

One-year warranty and full-life service for all our steam boilers.

Accessories and boiler room equipment service:

A full range of original spare parts are available for all yuanda boilers.

The factory manufacture situation are as follows:

Customer visiting

So far, our boiler have been sold to over 20 countries and have been highly praised by customers ! Sincerely welcome the factory visiting !

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
