Brand Name: YuanDa
Model Number: SZL(A)-10 ton coal fired steam boiler
Place of Origin: Henan, China (Mainland)
carbon boiler price, water tube boiler, water tube steam boiler
1. Water Tube Structure

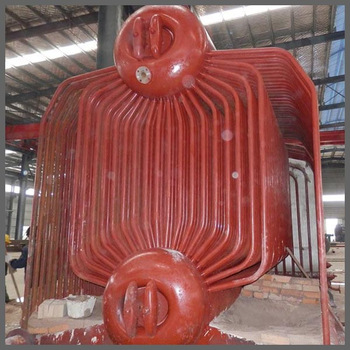

2. Double Boiler Drums
3. Big Combustion Furnace Volume
4. 10 ton coal fired steam boiler
5. used coal fired steam boiler

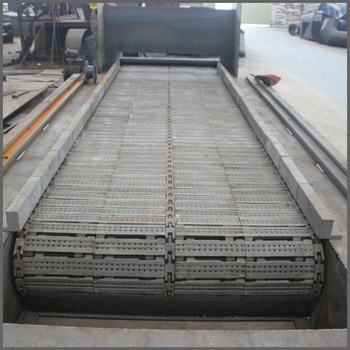

6. Chain Grate Stoker Steam Boiler
carbon boiler price, water tube boiler, water tube steam boiler
Based on our own strength of scientific technology and experience from domestic and abroad. Our company researched and developed a series biomass boiler, which can use various characteristic biomass fuel and possess independent property rights.
1.Fit for various biomass fuels, fully burning, with thermal efficiency above 80%;
2.High-efficient energy-saving arch which is specially designed for biomass fuel combustion;
3.Heating surface distribution is sufficient , heating-up and pressure boost -up quickly, strong output, high thermal efficiency;
4.Complete with automatic controls, monitoring instruments, highly automated , simple operation , safe and reliable;
5.It has the advantages of compact structure, less floor area, convenient installation and high efficiency.
Boiler model | SZL2-1.25/1.6/2.5 | SZL4-1.25/1.6/2.5 | SZL6-1.25/1.6/2.5 | SZL8-1.25/1.6/2.5 | SZL10-1.25/1.6/2.5 | ||
Rated Evaporation | MW | 2 | 4 | 6 | 8 | 10 | |
Rating pressure | MPa | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | |
Feed Water Temp | °C | 20 | 20 | 60 | 60 | 60 | |
Rated Steam Temp | °C | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | |
Active Grate Area | m3 | 3.1 | 4.6 | 7.8 | 10.1 | 11.8 | |
Thermal Efficiency | % | 81.6 | 81.6 | 81.6 | 81.6 | 81.6 |
Boiler model | SZL15-1.25/1.6/2.5 | SZL20-1.25/1.6/2.5 | SZL25-1.25/1.6/2.5 | SZL30-1.25/1.6/2.5 | ||
Rated Evaporation | MW | 15 | 20 | 25 | 30 | |
Rating pressure | MPa | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | |
Feed Water Temp | °C | 104 | 104 | 104 | 104 | |
Rated Steam Temp | °C | 194/204/226 | 194/204/226 | 194/204/226 | 194/204/226 | |
Active Grate Area | m3 | 17.3 | 21 | 24.3 | 31.9 | |
Thermal Efficiency | % | 81.6 | 81.6 | 81.6 | 81.6 |
carbon boiler price, water tube boiler, water tube steam boiler
Product name | Quantity (set) |
Boiler Main Part | 1 |
Draft Fan | 1 |
Forced Fan | 1 |
Electric Controller | 1 |
Valve | 1 |
Pressure Gauge | 1 |
Grate Speed Reducer | 1 |
Water Pump | 2 |
Steam Distributor | 1 |
Smoke Chimney | 1 |
Smoke Ducting | 1 |
Economizer | 1 |
Fuel Feeder | 1 |
Slag Remover | 1 |
Ceramic-Cyclone | 1 |
Water Treatment Equipment | 1 |
carbon boiler price, water tube boiler, water tube steam boiler

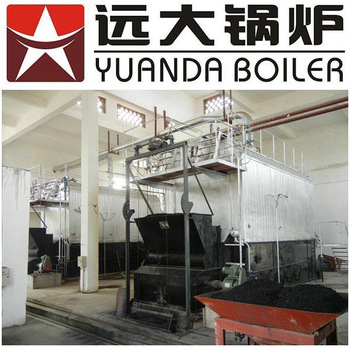

carbon boiler price, water tube boiler, water tube steam boiler Room Equipment
Our Packaging and Shipping:
Fast Package Naked for main part (Boiler Host), wood case for auxiliary.
