Brand Name: Yuanda Boiler
Model Number: SZL
Place of Origin: Henan, China (Mainland)
Biomass sugarcane bagasse steam boilers
Product Description:
1.This series of boiler could adopt varies of biomass.
2.Corrugated tubes achieve 1-2times higher heat transfer efficiency, reduce tube number.
3.Convex tube sheet improve flexibility and prevent cracking of the tube sheet.
4.Wing flue of the 2 sides effectively reduce heat load of the bottom of boiler.
5.Fire&water mixed tubes make smaller boiler volume and can save 1/3 building cost of boiler house.

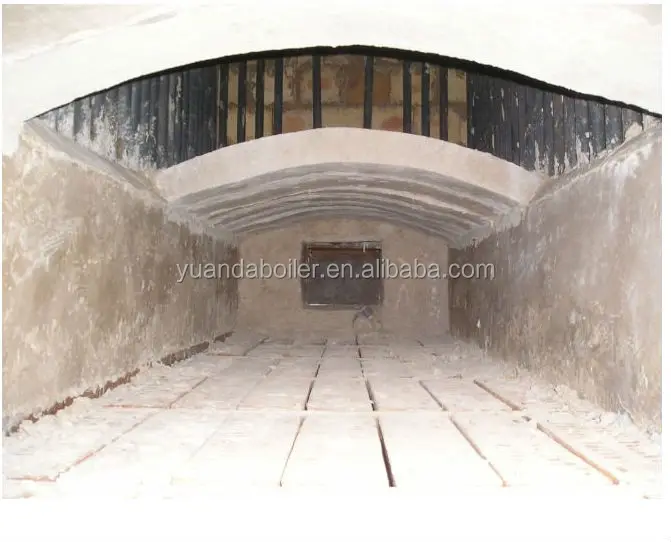

6.The inside of the furnace body equipped with man hole and hand hole that make it easier to repair.
Item |
Unit |
SZL2-1.25(2.5)-AII |
SZL4-1.25(2.5)-AII |
SZL6-1.25(2.5)-AII |
SZL8-1.25(2.5)-AII |
SZL10-1.25(2.5)-AII |
Rated evaporation |
T/Hr |
2 |
4 |
6 |
8 |
10 |
Rated working pressure |
Mpa |
1.25(2.5) |
1.25(2.5) |
1.25(2.5) |
1.25(2.5) |
1.25(2.5) |
Feed water temp |
℃ |
20 |
||||
Rated steam temp |
℃ |
194(225) |
194(225) |
194(225) |
194(225) |
194(225) |
active grate area |
m2 |
3.1 |
4.6 |
7.3 |
10.4 |
11.8 |
Heated area |
m2 |
120 |
169 |
190 |
220 |
280 |
Thermal efficiency |
% |
81.6 |
81.6 |
81.6 |
81.8 |
82 |
Fuel applicable |
Rice husk,wood chips,bagasse,coffee husk |
|||||
Fuel consumption |
Kg/h |
223(227) |
447(453) |
671(684) |
781(803) |
1113(1127) |
Transportation Weight |
T |
20(25) |
28(29) |
36(39) |
52 |
68(Assemble boiler) |
Transportation dimension |
mm |
5960X2960X3462 |
6510X3130X3462 |
7830X3346X3462 |
8870X3464X3462(3468) |
8500X3040X3462 |
