Industial palm shell boiler with all auxiliary equipments

Industial palm shell boiler with all auxiliary equipments

FOB Price:

US 19000-55000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

30 Set/Sets per Month

Port:

Qingdao, Shanghai

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Yuanda Boiler

Products Model:

SZL-D

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: SZL-D

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Fast Package Naked for main part, wood case for auxiliary. Industial palm shell boiler with all auxiliary equipments
Delivery Detail: Shipped in 10 days after payment

Specifications

Industial palm shell boiler with all auxiliary equipments

Boiler Feeding water quality:

	Terms	Standard value
Feeding Water	Turbidity/FIU	≤5.0
	Hardness/(mmol/L)	≤0.6
	PH value(25°C)	7.0~11.0
	DO°/(mg/L)	≤0.10
	Oil/(mg/L)	≤2.0
	TFe/(mg/L)	≤0.30
Boiler Water	PH value(25°C)	9.0~11.0
Boiler Water	Phosphate Group /(mg/L)	5.0~50.0

Advantage of the Industial palm shell boiler with all auxiliary equipments :
1	Cyclone 2nd-burning room design (Our Exclusive Technology)
2	Big Furnace, Offset Furnace, Chain Grate Stoker
3	Double Drum Design, “D” type structure Big Water Volume
4	Fast Pressure Up and Heating Up
5	Steam strong output
6	Fast-packaged Type

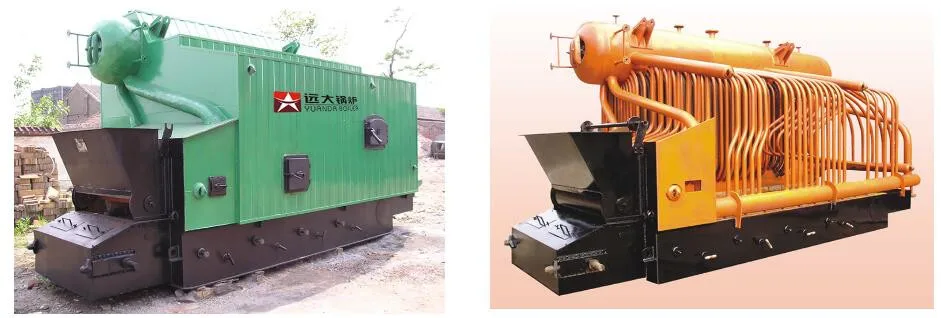

Product Description

SZL series product has a double-drum offset hearth (D-type layout), high technological content, environmental protection and energy conservation. The series of product has obtained National Scientific and Technological Progress Second Prize and Singapore New Product Expo Golden Lion Award, and is a key promoted product of national energy-saving projects.

Industial palm shell boiler with all auxiliary equipments Characteristics:

1. The hearth is designed with a cyclone reburning chamber, and high temperature fume achieves the effects of primary dedusting energy conservation and environmental protection through high speed revolution, mixed combustion and dust separation.
2. With a hearth with large volume and strong coal adaptability, it can use various biomasses as the fuel.
3. It has large heating surface, rapid boost, sufficient capacity, rapid warming and low energy consumption.

Honors of Industial palm shell boiler with all auxiliary equipments :
1) National Scientific and Technological Progress Second Prize
2). Singapore New Product Expo Golden Lion Award

Technical Parameters

Industial palm shell boiler with all auxiliary equipments:

Model	Rating capacity	Rating pressure	Feed water temperature	Rating steam temperature	Active grate area	Boiler heating area	Boiler efficiency	Coal consumption	Main part weight	Main part dimension	Package method
	t/h	Mpa	℃	℃	m²	m²	%	kg/h	t	mm	Package method
SZH2-1.25/2.5-AII	2	1.25/2.5	20	194/226	2.78	69.5	81	225/228	17/18.5	485026903468	Package bolier
SZH4-1.25/2.5-AII	4	1.25/2.5	20	194/226	4.5	119.2	81	450/462	22/24.8	545030403468
SZL2-1.25/2.5-AII	2	1.25/2.5	20	194/226	3.1	64.6	81.6	223/227	20/25	596029603468
SZL4-1.25/2.5-AII	4	1.25/2.5	20	194/226	4.6	115.3	81.6	447/453	28/29	651031303468
SZL6-1.25/2.5-AII	6	1.25/2.5	20	194/226	7.3	136.3	81.6	671/684	38/42	783033463468
SZL8-1.25/2.5-AII	8	1.25/2.5	20	194/226	10.4	173	81.8	781/803	52	820033463468

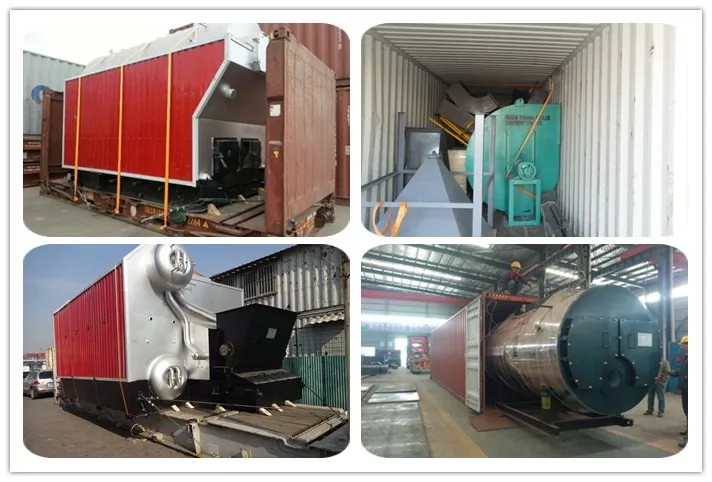

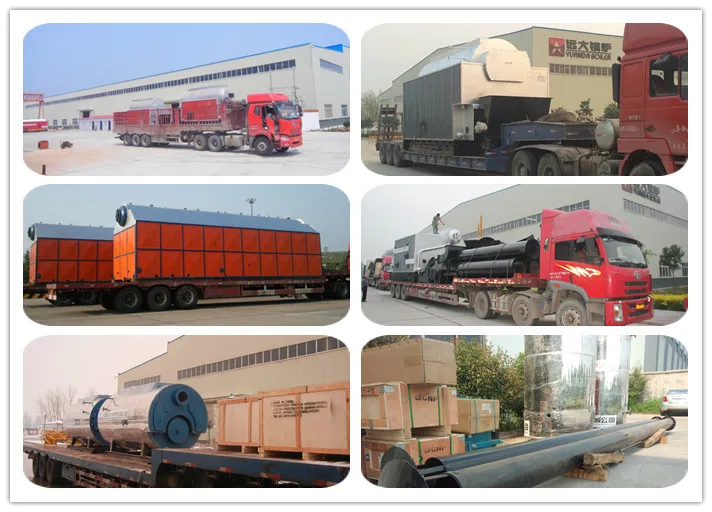

Packaging & Shipping

Inland Delivery:

Sea Transportation:

Our Services

♥ Experienced technicians guidance is available on the phone, and on the internet.
♥ Complete Pre-sale service, After-sale service, Technical service and communication, Delivery.
♥ Professional team is available to help you select the right boiler.
♥ Welcome to our factory to examine the product quality.

We have a Trade Assurance Amount US $10,300 granted by Alibaba.com. It means you will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms.
The new system will allow you to rate and review our experience before you place the order.

FAQ

1. Q: Can you give us a quotation right now?
A: Sorry, our products are all different and special. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.

2. Q: Can you give us your price list?
A: Sorry, we don’t have any. Our products are all manufactured according to customers’ requirements. So our products are all different and special.

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
