Brand Name: Henan yuanda brand 10 ton biomass wood boiler
Model Number: SZL series 10 ton biomass boiler
Place of Origin: Henan, China (Mainland)
Clean energy biomass wood fired 10 ton steam boiler
Clean energy biomass wood fired 10 ton steam boiler here is water tube structure ,double drum design, low pressure horizontal boiler,its features as follows:
Product brief description |
1.Product name: Clean energy biomass wood fired 10 ton steam boiler |
2.Working pressure :1.25-2.5Mpa,that is 15-25bar |
3.Boiler capacity: 1ton/hr-20ton/hr, that is 1000kgs-20000kgs |
4.Boiler burning fuel: biomass fuel |
5.Boiler categories: SZL(D)type |
Boiler quality assurance |
We yuanda boiler factory is a 60 years old factory with stated qualification for boiler and pressure vessel manufacturing. |
Warranty |
two year wanrranty and full-life service for all our yuanda boilers |
Spare parts service |
A full range of original spare parts are available for all yuanda boilers |
Remarks |
1.Adopt the X-ray detection to asure the boiler quality |
2.Manufacturing code:GB |
3.Payment terms:FOB,CIF,DAF,etc |

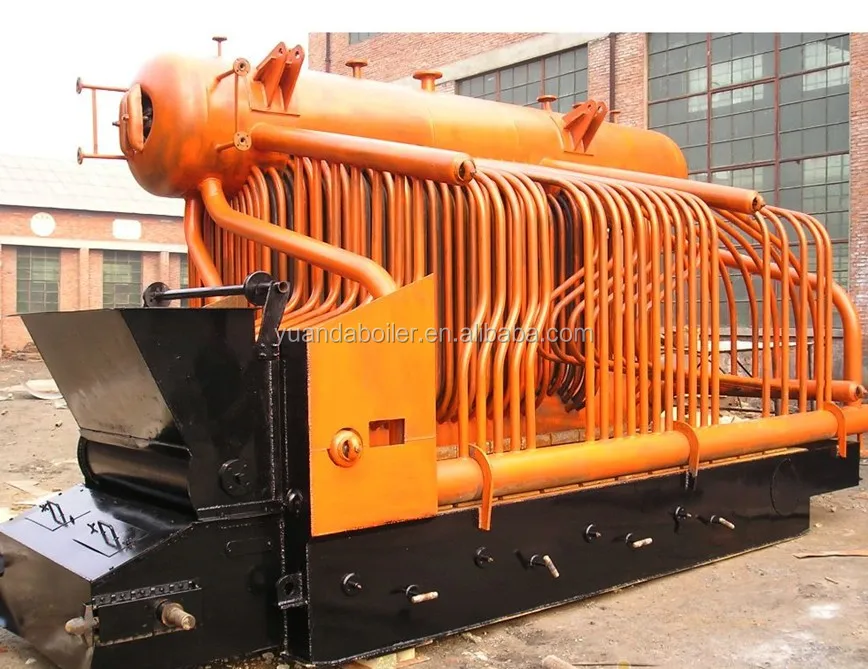

Boiler body : Boiler's inner structure:
Boiler's burning fuel--various kinds of biomass/wood:
Fuel burns like whirlwind in the boiler's furnace,the burning situation is excellent, so this SZL boiler series is very popular and be highly praised.
Biomass fuel's burning status in the furnace---cyclone burning type:
Boiler technical data:
Biomass boiler model | SZH2-1.25/2.5 | SZH4-1.25/2.5 | SZL2-1.25/2.5 | SZL4-1.25/2.5 | SZL6-1.25/2.5 | SZL8-1.25/2.5 | SZL10-1.25/2.5 | SZL15-1.25/2.5 | SZL20-1.25/2.5 |
Steam evaporation(t/h) | 2 | 4 | 2 | 4 | 6 | 8 | 10 | 15 | 20 |
Pressure(Mpa) | 1.25/2.5 | 1.25/2.5 | 1.25/2.5 | 1.25/2.5 | 1.25/2.5 | 1.25/2.5 | 1.25/2.5 | 1.25/2.5 | 1.25/2.5 |
Feeding water temp(°c) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
Steam temp(°c) | 194/226 | 194/226 | 194/226 | 194/226 | 194/226 | 194/226 | 194/226 | 194/226 | 194/226 |
Fire grate area(m²) | 2.78 | 4.5 | 3.1 | 4.6 | 7.3 | 10.4 | 11.8 | 17.7 | 20.8 |
Boiler heating area(m²) | 69.5 | 119.2 | 64.6 | 115.3 | 136.3 | 173 | 233 | 307.3 | 725.2 |
Fuel consumption(kg/h) | 225/228 | 450/462 | 223/227 | 447/453 | 671/684 | 781/803 | 1113/1127 | 1663/1686 | 2218/2246 |
Delivery weight(t) | 17/18.5 | 22/24.8 | 20/25 | 28/29 | 38/42 | 52 | 68 | 30 | 40 |
Delivery way | Packaged boiler | Packaged boiler | Packaged boiler | Packaged boiler | Packaged boiler | Packaged boiler | Assembly boiler | Assembly boiler | Assembly boiler |
To ensure the boiler's high efficiency and safe running, we suggest the following accessories and boiler room equipments list for our customers :
The detail accessories list as follows:
Boiler accessories | |
1. FD fan | 1 set |
2. ID fan | 1 set |
3. Electrical control cabinet | 1 set |
4. Valves&instruments | 1 set |
5. Fire grate reducer | 1 set |
Boiler room equipment | |
6. Water pump | 1 set |
7. Steam header | 1 set |
8. Chimney | 1 set |
9. Gas duct | 1 set |
10.Economizer | 1 set |
11.Fuel feeder | 1 set |
12.Slag remover | 1 set |
13.Dust catcher | 1 set |
14.Water soften equipment | 1 set |
We will also provide the wet scrubber ,air preheater, bag filter or other things according to customer's requirements. |
We will adopt many methods to protect the boiler whiling transportating, such as rubber pad, wooded box, strong rope and so on.
So far, our boiler have been sold to over 80 countries and have been highly praised by customers ! Sincerely welcome the factory visiting !
We can supply from stock when the customer are in urgent need of the boiler, the stock range is wide and include alomost all kinds of our products, so sincerely welcome !
Quality is life for our company since found in 1956, we have been committed to provide the best service to our customers !
