Brand Name: Henan yuanda boiler
Model Number: DZL
Place of Origin: Henan, China (Mainland)
Industrial biomass wood pellet hot water heating boiler 500kw
Industrial biomass wood pellet hot water heating boiler 500kw --DZL hot water boiler series !
High praised by the overseas customers !
High heat efficiency&Longer use life !
This boiler series with 100% stable quality!
Advantages:
1.Optimum structural design with fire & water mixing tube make smaller boiler volume and can save 1/3 building cost of the boiler house.
2.Spirally corrugated tubes achieves 1-2times higher heat transfer efficiency,and easy for maintenance.
3.New design and larger volume furnace enhance burning efficiency,also lower fuel requirements.
4.Longer use life and easy maintenance.

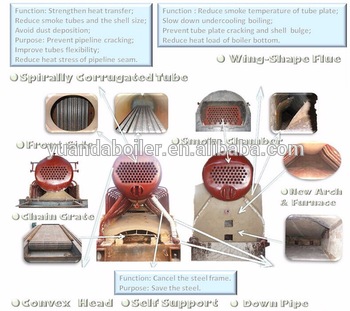

Boiler body:

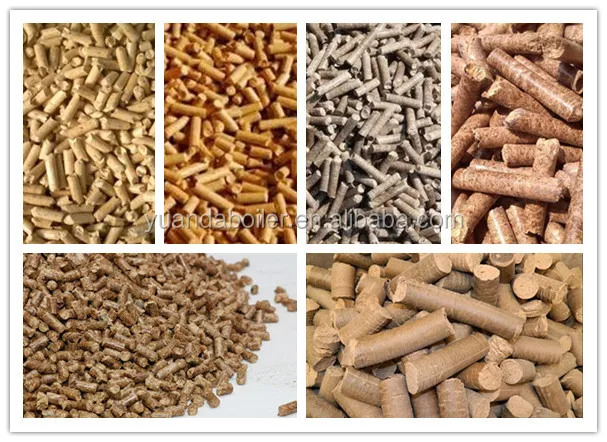

Boiler's burning fuel----pellet:
Technical data of this hot water boiler:
biomass hot water boiler model | Thermal power | Working pressure | Return water temp | Outlet water temp | Efficiency | fuel Consumption | Circulating water | Delivery weight | Delivery mode |
MW | Mpa | °c | °c | % | Kg/h | t/h | t | ||
DZL0.7-0.7/95/70-AII | 0.7 | 0.7 | 70 | 95 | 81 | 110 | 24 | 14.2 | Packaged boiler |
DZL1.4-0.7/95/70-AII | 1.4 | 0.7 | 70 | 95 | 81 | 222 | 48 | 22.6 | Packaged boiler |
DZL2.8-0.7/95/70-AII | 2.8 | 0.7 | 70 | 95 | 81 | 432 | 96 | 27 | Packaged boiler |
DZL4.2-0.7/95/70-AII | 4.2 | 0.7 | 70 | 95 | 81 | 633 | 144 | 45.5 | Packaged boiler |
DZL5.6-1.0/95/70-AII | 5.6 | 1.0 | 70 | 95 | 81 | 855 | 192 | 40 | Assembly boiler |
DZL7-1.0/115/70-AII | 7 | 1.0 | 70 | 115 | 81 | 1068 | 133 | 45 | Assembly boiler |
DZL10.5-1.0/115/70-AII | 10.5 | 1.0 | 70 | 115 | 81 | 1587 | 200 | 55.6 | Assembly boiler |
DZL14-1.0/115/70-AII | 14 | 1.0 | 70 | 115 | 81 | 2116 | 266 | 19.08 | Semi-assembly boiler |

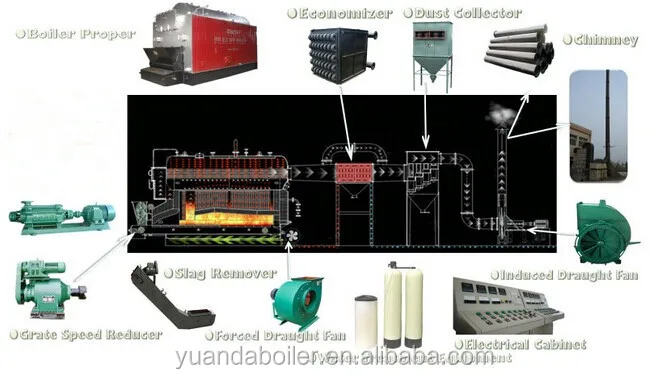

To ensure the boiler's safe and high efficient running, we will provide the following complete configuration for our customers.
That is the table below:
Boiler accessories | |
1. FD fan | 1set |
2. ID fan | 1set |
3. Electrical control cabinet | 1set |
4. Valves&Instruments | 1set |
5. Fire grate reducer | 1set |
Boiler room equipment | |
6. Hot water circulating pump | 1set |
7. Chimney | 1set |
8. Gas duct | 1set |
9. Economizer | 1set |
10.fuel feeder | 1set |
11.Slag remover | 1set |
12.Dust catcher | 1set |
13.Water soften equioment | 1set |
Quality Control
1.58 years corporate reputation.
2.B-grade boiler manufacturer qualification.
3.D-grade pressure vessel manufacturer qualification
4.High grade welder certificate.
Guarantee and After-sale service
1.One year warranty and full-life service for all our boilers.
2.A full range of original spare parts are available for all yuanda boilers.
3.24 hours technical support by email.
4.Engineers available to service overseas.

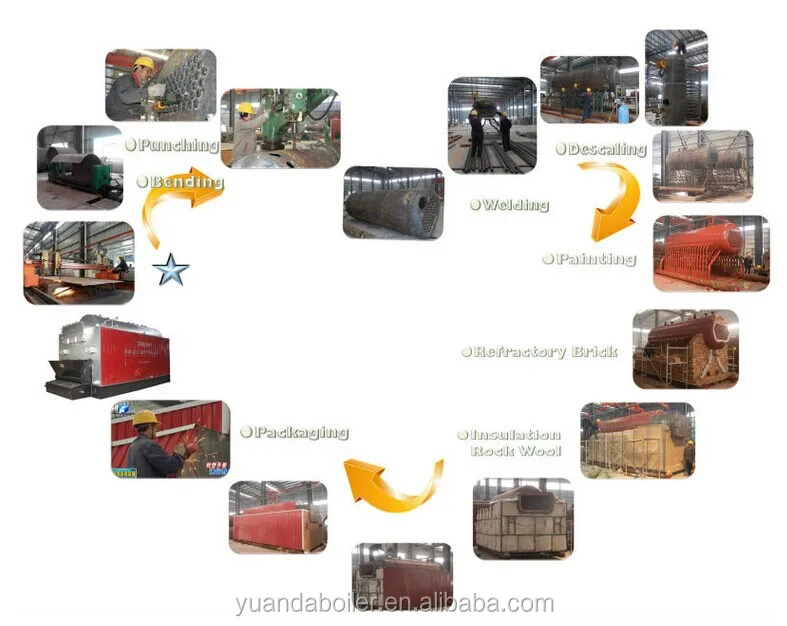

The factory daily manufacturer situation as follows:

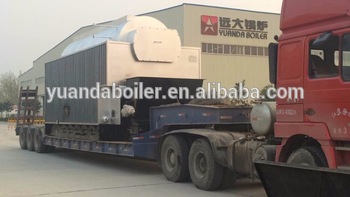

We will adopt many methods to protect the boiler while transportating, such as rubber pad, wooden box, strong rope and so on.
So far, our boiler have been sold to over 20 countries and have been highly praised by customers ! Sincerely welcome the factory visiting !

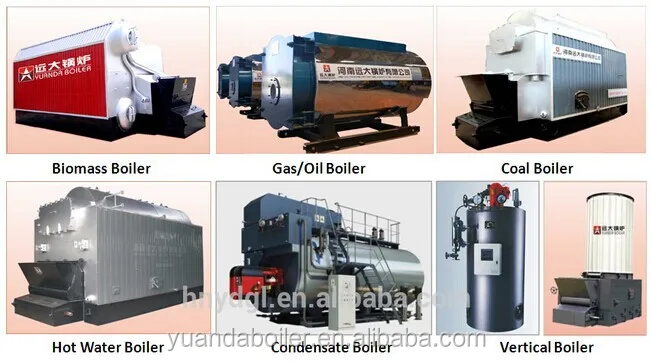

Since found in 1956, yuanda boiler have been committed to provide the best products to our customers, during these 58 years, we create and complete the following boiler and pressure vessel categories:
1.0.5-20ton steam boiler.
2.0.35-14MW hot water boiler .
3.Burning fuel:coal,biomass, wood, anthracite,natural gas,Lpg,heavy oil, diesel, and so on.
4.Boiler pressure:0.4-2.5Mpa,4-25bar.
5.Horizontal or vertical type.
We can supply from stock when the customers are in urgent need of the boiler , the stock range is wide ,and includes almost all kinds of our products.so Sincerely welcome to our company for a visit !

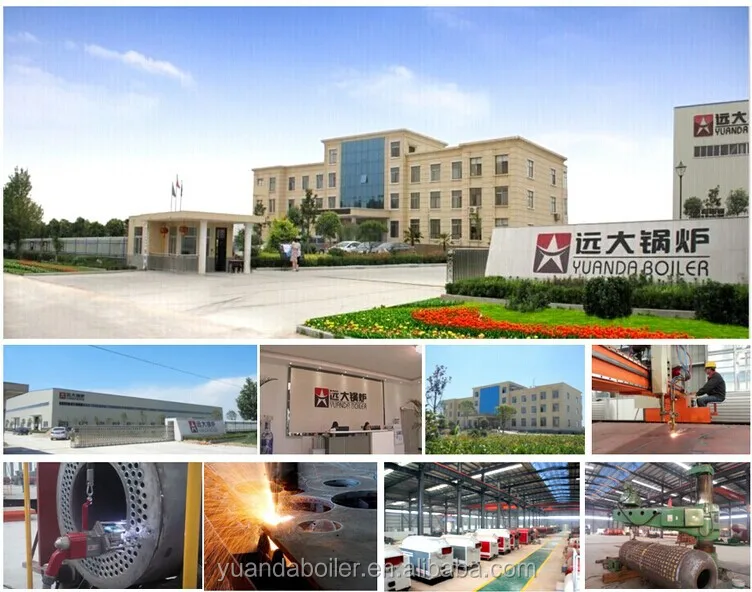

Company scene
Please contact Kara when you come to our company, sincerely welcome !
