175-185 / 200-185 / 210-195 degree 40 amp 4 pins / 5 pins radiator universal fan fan thermostat temperature switch relay kit

Description radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit 175-185 / 200-185 / 210-195 degree 40 amp 4 pins / 5 pins radiator universal fan fan thermostat temperature switch relay kit

For example: radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit

New 175 - 185 degree electric fan thermostat relay switch kit for your cooling system, It is a 3/8" pipe thread.
This kit is set up to turn your electric fan on at 185 degrees and shut off at 175 degrees and will work with any 12 volt system.
COMES ON AT 185º AND TURNS OFF AT 175º. radiator fan thermostat temperature switch relay kit

radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit

Specification radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit 175-185 / 200-185 / 210-195 degree 40 amp 4 pins / 5 pins radiator universal fan fan thermostat temperature switch relay kit

Material: Plastic and Metal

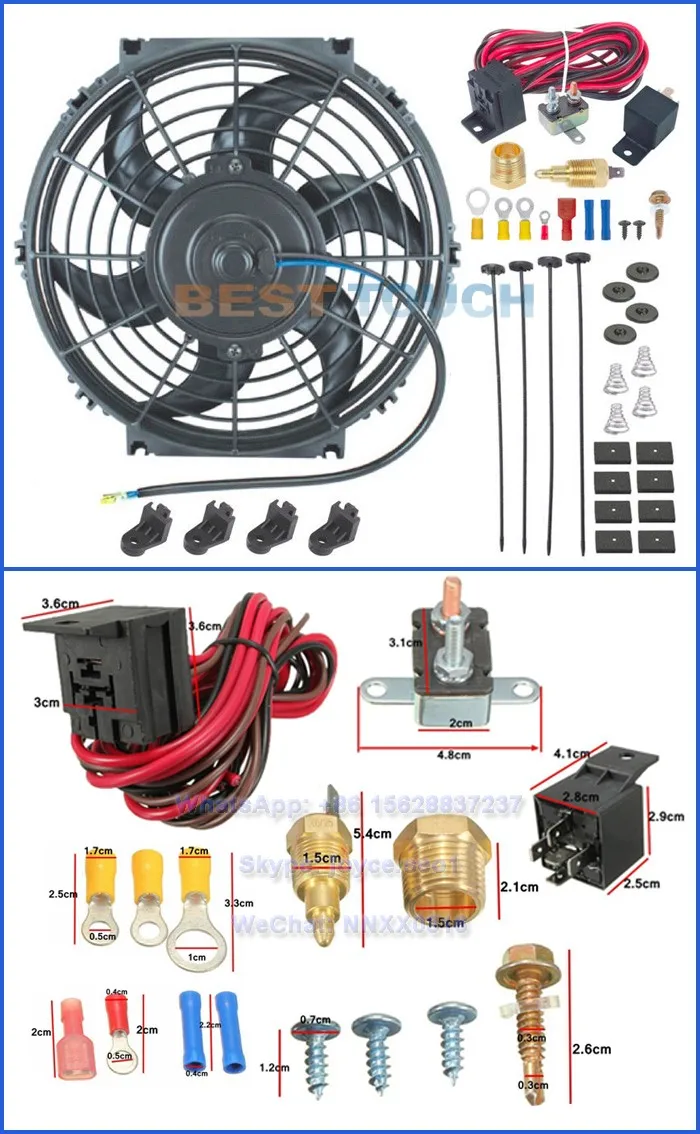

Size: As the pictures shown
Package Box SIze: 13.2×9×7cm (L W H)
Cable Length: appro.165cm
Voltage: 12V DC, 40 AMP

Feature radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit 175-185 / 200-185 / 210-195 degree 40 amp 4 pins / 5 pins radiator universal fan fan thermostat temperature switch relay kit

1. 100% Brand New. radiator fan thermostat temperature switch relay kit
2. Direct replacement part for original Blower Motor Resistor.
3 Low Power Consumption and Low Temperature, Eco design, Safe and reliable.

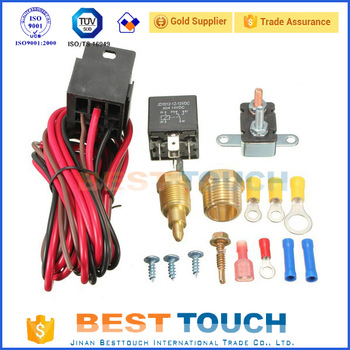

4. Package Includes a brass adapter to install the sending unit wires, relay switch, circut breaker, terminals and mounting screws.
5. How to wire Single Terminal Fan Thermostat Switches: radiator fan thermostat temperature switch relay kit
a. These switches should be used in conjunction with a relay. radiator fan thermostat temperature switch relay kit
b. The switch should operate the relay and the relay should provide power to the fan since an electric fan typically draws a lot of current. When the switch closes to ground (at high temps) the relay is energized and powers the fan. When temps drop, the switch opens and breaks the ground circuit. radiator fan thermostat temperature switch relay kit
c. The relay de-energizes and cuts power to the fan. radiator fan thermostat temperature switch relay kit

radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit

Instruction radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit 175-185 / 200-185 / 210-195 degree 40 amp 4 pins / 5 pins radiator universal fan fan thermostat temperature switch relay kit

Note:For the two red wires,please connect the short red wire to the fan and the long red wire to the battery.
1. Mount the relay under the hood in a convenient location as to the fan as possible.
Notice:Don't use the teflon tape or thread compoud on the thermostat or adaptor. For proper operation,the thermostat must ground through the threads to the engine and the engine must be ground. radiator fan thermostat temperature switch relay kit
2. Install thermostat into the head or intake manifold. Route the black wire to thermostat and cut to length. Crimp the red terminal onto the black wire and attach to thermostat. radiator fan thermostat temperature switch relay kit
3. Route and connect the red wire to the fan "+" terminal or power wire coming from the fan motor printed "to electric fan".
4. Mount the circuit breaker provided in a convenient location as close as possible to whichever power source(battery or large terminal on the starter solenoid)you are using for the fan relay. radiator fan thermostat temperature switch relay kit
5. Neatly route the red wire from the relay to one side circuit breaker installed in step 5. Cut to length and install using a small yellow ring terminal .With another small yellow ring terminal take the remaining red wire and connect the unused post on the circuit breaker to the battery source. This wire is printed "to battery/constant hot". radiator fan thermostat temperature switch relay kit
6. Route the brown wire to the ignition switch or the fan switch whichever is more convenient.

radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit

Application radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit 175-185 / 200-185 / 210-195 degree 40 amp 4 pins / 5 pins radiator universal fan fan thermostat temperature switch relay kit

radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit

Packing & Factory radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit 175-185 / 200-185 / 210-195 degree 40 amp 4 pins / 5 pins radiator universal fan fan thermostat temperature switch relay kit

radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit

Warranty radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit 175-185 / 200-185 / 210-195 degree 40 amp 4 pins / 5 pins radiator universal fan fan thermostat temperature switch relay kit
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without etra Charger(including shipping fee)After we Receive the Defective item. radiator fan thermostat temperature switch relay kit
If item Defective after 3 Month, Buyers can still send it back. Buyers Might Need to pay the Shipping fee For resend the replaced item. radiator fan thermostat temperature switch relay kit radiator fan thermostat temperature switch relay kit
