6t coal boiler from henan sitong boiler co ltd

6t coal boiler from henan sitong boiler co ltd

FOB Price:

US 4500-150000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

150 Unit/Units per Month

Port:

Qingdao/Tianjin/Shanghai

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,T/T,Western Union

Brand:

YUTONG

Products Model:

DZL

Products Details
Company Profile

Quick Details

Brand Name: YUTONG

Model Number: DZL

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up, and then covered with dedicated water-proof paulin, the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box, some auxiliaries are single packaged, such as burner. The products could be transported by ship and train, customers could designate the ports. If necessary, the small auxiliaries could be transported by airplane.
Delivery Detail: Shipped in 15-20 days after payment

Specifications

6t coal boiler from henan sitong boiler co ltd

Application of 6t coal boiler from henan sitong boiler co ltd

DZL series chain grate boiler has the advantages of automatic feeding, wide adoptability of

different fuel types, high thermal efficiency, and environmental protection, it is usually used for textile printing

and dyeing, cooking, chemical engineering, auto industry, food processing, wood processing, and prevention

frostbite of mine, etc.

Product Description of6t coal boiler from henan sitong boiler co ltd

DZL series coal fired horizontal type packaged boiler is single drum longitudinal type with natural circulation, the main components are installed within the factory. After installing the large parts, just need to setup pipeline, instrumentation valves, flue duct, and slag extractor, etc, connect water and electricity power, and incorporated into the heating network system, then the boiler could operate.

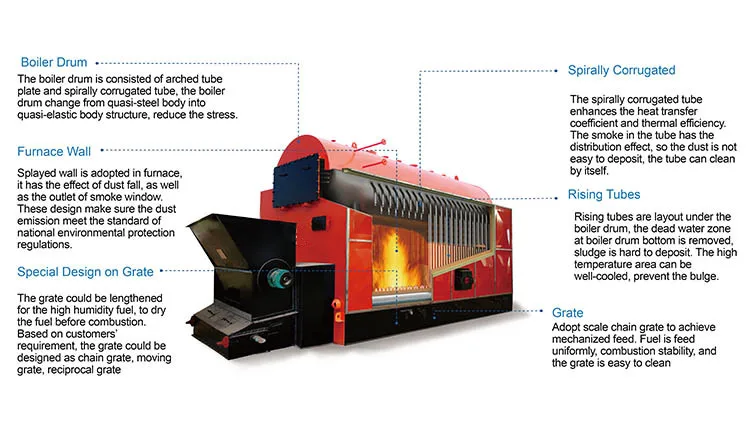

This boiler is consisted of boiler drum, furnace and convection pass, which are made up of two sides water-cooled tubes, the front smoke box is consisted of four casing pipes and front tube plate, the boiler drum is equipped with thread convection tubes. Chain grate is under the water cooling system, to support the whole boiler body, to form a packaged boiler.

Features of 6t coal boiler from henan sitong boiler co ltd

Advanced Design and Configuration	Function / Advantage
New Dust Collection	Achieve almost zero pollution
Smoke and Dust Separation Chamber	Decrease the original emission concentration of smoke
Splayed Wall	Has the function of dust suppression, protect environment
Small Scale Flaker Type Grate	New metallurgy formulate make the grate withstand high temperature more than 1600℃, make sure running without stop even when repair.
Spirally Corrugated Tube	Improve heat transfer coefficient, thermal efficiency increase to 83%.
Airfoil Shape Flue	Decrease the flue gas temperature in the area of high temperature tube plate, prevent tube plate cracking and swell.
Spark Retaining Wall in Furnace	Improve the combustion efficiency.
New Type Furnace Arch	Strength combustion, improve the adaptability of different coal types.
Header Backwater Ejection	Avoid water wall tube crack
Large Heating Area	Make sure excess output
Secondary Air Design	Improve combustion efficiency and reduce emissions
Economizer/ Air Preheater	Improve thermal efficiency

Technical Parameters of 6t coal boiler from henan sitong boiler co ltd

Model Item	DZL1-0.7-T DZL1-1.0-T DZL1-1.25-T	DZL2-0.7-T DZL2-1.0-T DZL2-1.25-T	DZL4-1.25-T DZL4-1.6-T	DZL6-1.25-T DZL6-1.6-T	DZL8-1.25-T DZL8-1.6-T	DZL10-1.25 DZL10-1.6
Rated evaporation capacity (t/h)	1	2	4	6	8	10
Working pressure(Mpa)	0.7/1.0/1.25	0.7/1.0/1.25	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6
Rated steam temperature(℃)	170/184/194	170/184/194	194/204	194/204	194/204	194/204
Feed water temperature(℃)	20	20	20	20	20	20
Effective area of grate(m2)	2.22	4.1	5.85	7.95	9.75	10.77
Fuel consumption (Kg/h)	200	400	800	1200	1600	2010
Exhaust flue gas temperature(C)	150	150	150	150	150	150
Thermal Efficiency (%)	82	82	82	82	82	82
Size(m)	5.1x 2.2x 3.0	5.5x 2.3x 3.3	6.6x 2.6x 3.6	8.2x 2.9x 3.8	8.1x 3.1x 3.8	7.7x 3.2x 3.6 8.6x 3.0x 2.6
Weight (t)	17	23	25	35	45	33 28

Case of 6t coal boiler from henan sitong boiler co ltd

4ton DZL Series Coal Fired Chain Grate Boiler for Philippines Palm Oil Mill, and 6tph Wood Fired Chain Grate Steam Boiler for Bangladesh Wood Processing

Henan Sitong boiler Co., Ltd. is the national fixed-point production grade A boiler manufacture enterprise. Sitong boiler industrial park adjacent to national highway No.311 and Zhou-Shang expressway, the traffic is convenient, radiation far-reaching. Our company has perfect quality assurance system and advanced production technology, Rigorous scientific management mode and excellent service before-selling, sale and after-selling, Deep farce management concepts and the elegance of the enterprise culture. In the Trade Union, Our Company may be said that: brilliant achievements and well-established. It is also "Sitong boiler finds its way into every family, safety warm him, you and I.

Our major products are coal, oil, gas, steam (hot) water boiler, Electric heating steam (hot) water boiler, Environment and Energy-saving half gas boiler steam (hot) water boiler, Organic heat carrier furnace, Wastes incinerator, High, medium-temperature hot air stove and other 18 series of 100 specifications. Our company has strong development capacity, professional development engineer adopts CAD computer design, clay modelling and rapid prototyping technology, use the optical 3D scanner to engage in data acquisition engineering, and apply to auxiliary product appearance design, to complete test analysis and detection equipment and tools. Thus we make you enjoy the frontier technology of infinite scene from design and manufacturing of each procedure.

Our Company adhere to the science and technology as the guide, human as the support, quality as assurance and service continuously advance. and follow the management idea of "While a boiler leaves our factory , we make a friend, build a demonstration project and develop a piece of the market", 24 hours of experts substation telephone and computer network service, so as to provide sincerely help at any moment. We constantly win more market share and the trust of customers, which lay the foundation for the internationalization of "Sitong boiler".

Qualification massiness, enterprises culture full-bodied, technology-first, "Sitong boiler" walk the development of "Industrialization, Scalization and Branding", targeting technology commanding heights, building a "Yutong" brand, create the China boiler industry brilliancy hand in hand with the domestic colleague.
