Brand Name: YUTONG
Model Number: SZL8-1.25-AII
Place of Origin: Henan, China (Mainland)
8 ton Industrial double boiler drum steam boiler & coal fired steam boiler for sale
The arch tube plate of the series boiler, the two wings of the flue, threaded pipe and other new technology to solve the shell type boiler tube plate cracks, drum lower part of the drum kit, Water Wall, low thermal efficiency, insufficient output, coal adaptand poor.
Characteristicsand advantages:
1.Adopted with the structure of two drums distributed on the top and bottom .Reasonable design, compact structure
2.Light chain grate as combustion equipment ,convenient to operate and maintain
3.Ex-factory assembly ,good for transport
4.Burning stability, high thermal efficiency
5.Equipped with high desulfurization wet dust catcher
6.Meet the environmental protection requirement.
Double drums full-automatic multi-fuel steam boiler:
This product with reasonable design,compact structure,and light chain as combustion equipment. Easy to operate and maintain.It has the advantages of buring stably and high efficiency,match with efficient wet style dirt catcher,it is very environmental.
Technical Specification of Boiler
Model | DZL4-1.25-AII DZL4-1.6-AII DZL4-2.5-AII | SZL6-1.25-AII SZL6-1.6-AII SZL6-2.5-AII | SZL8-1.25-AII SZL8-1.6-AII SZL8-2.5-AII |
SZL10-1.25-AII SZL10-1.6-AII SZL10-2.5-AII |
SZL15-1.25-AII SZL15-1.6-AII SZL15-2.5-AII | SZL20-1.25 SZL20-1.6-AII SZL20-2.5-AII |
Rated steam capacity(t/h) | 4 | 6 | 8 | 10 | 15 | 20 |
Rated worKing pressure(MPa) | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 |
Rated steam temperature (ºC) | 194/204/225 | 194/204/225 | 194/204/225 | 194/204/225 | 194/204/225 | 194/204/225 |
Feed water temperature(ºC) | 20 | 20 | 20 | 20 | 20 | 20 |
boiler body heating surface(m2) | 99.5 | 134 | 210 | 233.6 | 310.5 | 478 |
Economizer heating surface (m2) | 38 | 60 | 109 | 130 | 174 | 257 |
Effective chain great heating surface(m2) | 5.3 | 7.8 | 10.2 | 12 | 18 | 23 |
design coal type | AII | AII | AII | AII | AII | AII |
coal consumption(kg/h) | 591 | 884 | 1150 | 1443 | 2157 | 2866 |
heating efficiency(%) | 81 | 81 | 81 | 81 | 82 | 82 |
largest weight(ton) | 32 | 21 | 26 | 28 | 30 | 35 |
largest transporation dimension(LXWXH) mm | 7.46x2.65x3.52 | 7X2.7X3.5 | 6.9X3.16X3.5 | 7.89X3.26X3.53 | 10X3.2X3.5 | 11X3.2X3. |

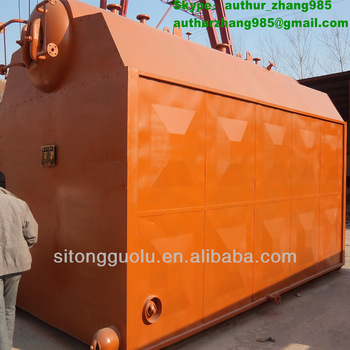

Boiler picture
Certificate
Customer to visit
Auxiliary machine
