Electric Cartridge Resistance with Fibre Glass Sleeve

FOB Price:

US 8-20 / Unit

Min.Order Quantity:

5 Unit/Units

Supply Ability:

50000 Unit/Units per Quarter

Port:

Shen Zhen/Hong Kong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,D/A,T/T,Western Union,Paypal

Brand:

OEM Electric Cartridge Resistance

Products Model:

DT-ASF-01

Products Details
Company Profile

Quick Details

Brand Name: OEM Electric Cartridge Resistance

Model Number: DT-ASF-01

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Electric Cartridge Resistance: 1.15kgs per carton 2.carton material:k.k two layer 3.60pcs per carton
Delivery Detail: 10 business days

Specifications

Electric Cartridge Resistance with Fibre Glass Sleeve

Electric Cartridge Resistance

The Detai cartridge heater incorporates engineering excellence and is supported by over 20 years of solid industry performance across a broad range of simple and complex applications. With selected premium materials and tight production controls, Detai cartridge heater provides superb heat transfer and resistance to oxidation and corrosion even under elevated temperature. Every system component that leaves our manufacturing facilities meets our strict quality assurance specifications, in addition to those set forth by leading standards and regulating industries.

Product Description

Technical data of Electric Cartridge Resistance

Resistance wire	Iron wire, nickel wire(Nicr20/80)
Material	SUS304, 316, 321; Incoloy800, 840
Max temperature	750C (1382F)
Heater diameter	6~25mm
Heater length	20~2000mm
Non heating area	5-25mm(depend on length)
Watt density	10w/cm*2 max (advisable)
Power tolerance	+5% -10%
Lead type	silicone wire, teflon wire, fiberglass wire, metal proection wire,etc

Applications of Electric Cartridge Resistance

Maintaining mold temperature, preventing freezing, ice makers, and medical equipment, etc.

1. Injection moulding - Internal heating of nozzles

2. Hot runner systems - Heating of manifolds

3. Packaging industry - Heating of cutting bars, hot stamps

4. Laboratories - Heating of analytical equipment

5. Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

6. Telecommunications: Deicing, Enclosure Heater

7. Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters

8. Food Service: Steamers, Dish Washers

9. Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

Features & benefits of Electric Cartridge Resistance

Key features	Benefits

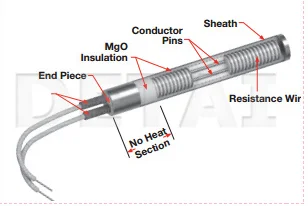

• Main components: o High-grade nickel chromium resistance wire, o MgO core, o Stainless steel tubing, o Stranded leads with silicon-impregnated mica glass insulation, or swaged in • Special sizes, wattages, and materials are available upon request; • Custom-designed to meet your specifications. • Pin leads are available	• Easy and economical to install • Designed with first-class materials • Maximized heat transfer • Easy to maintain • Uniform temperatures • Oxidation and corrosion resistant

Packaging & Shipping

1. Packaging

Usually PE bag first then caron box. Wooden box is available if requested.

2. Shipping

FAQ

1. What is the watt density of a cartrdige heater?

Watt density is the heat flow rate per square inch of heated surface area of the cartridge heater. It depends on the Wattage (W) of the Nichrome wire and calculated as

W / (3.14 x Diameter in inches x Heated Length in inches).

2. How can you guarantee your quality?

Quality is our culture. Certificates do not guarantee but samples do!

3. List some companies you have been working with.

Sinbo, Toshiba, Media, Glanz, Orbis, etc.

4. How can I trust you with my order and money?

We are Alibaba trade assurance supplier with USD 46000 limit. You may place order via Alibaba with us.

How to order

Please kindly provide us with below information as detailed as possible

1. Diameter

2. Length

3. Watt & volt

4. Cable

5. Thermocouple (if needed)

6. Flange/thread(if needed)

Precautions

Theas heaters are available in length from 20 mm to 1800 mm.
Use them in water or inserting metallic molds in contact with the objects to be heated. Reduce the surface temperature when using them in air.
Contact us if you have any special request not shown above. Heaters are also available in inch sizes.

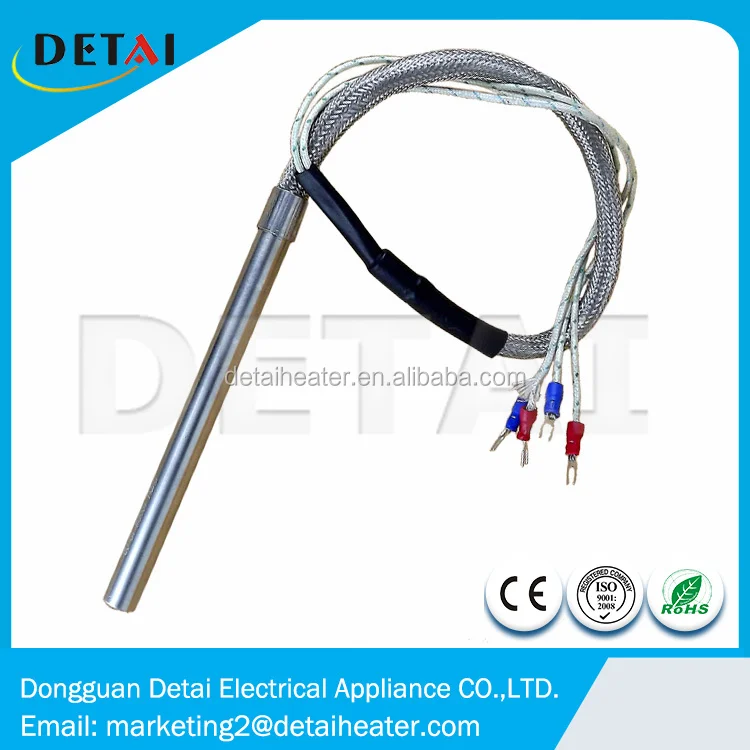

Detailed Images

Dongguan Detai Electrical Appliance Co., Ltd. was founded in March of 1995 with original investment of 5 million RMB. Our plant covers an area of 10,000 square meters. We have 5 senior engineers, more than 20 engineering technicians.

Our company specializes in manufacturing high-temperature heating tubes, stainless steel pipes, iron copper pipes, single-head pipes, copper pipes, aluminum tubes and non-standard industrial control products which are widely used in household appliances, ovens and other mechanical equipment. Our products are exported to Southeast Asia, West Europe, North America and other countries and regions.

We have the most advanced heating pipe manufacturing equipment and testing apparatuses. We use national GB4706 and 1-92/JB4088-85 standards and international standard in the production process for all-round monitoring.

We have attained ISO9001:2008 quality management system certification. Our products have passed the evaluation of CE, UL, CAS, CQC and SGS certifications. We also have been the qualified supplier for many manufacturers. We insist on our philosophy of "Surviving by Quality and Developing by Credit" to strengthen the management, regard "Surpassing the Needs of the Customers" as the purpose of management and warmly welcome customers from at home and abroad to send samples to us for developing and come to our company for negotiation. We hope our products and services can benefit your company, and our cooperation can be mutually beneficial win-win situation.
