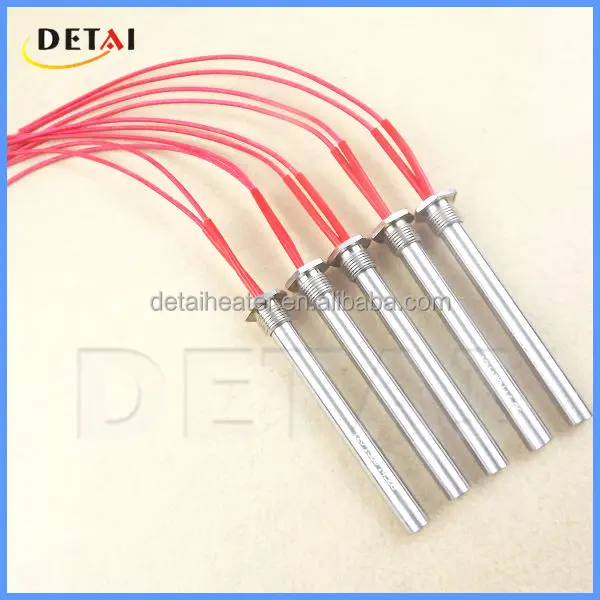

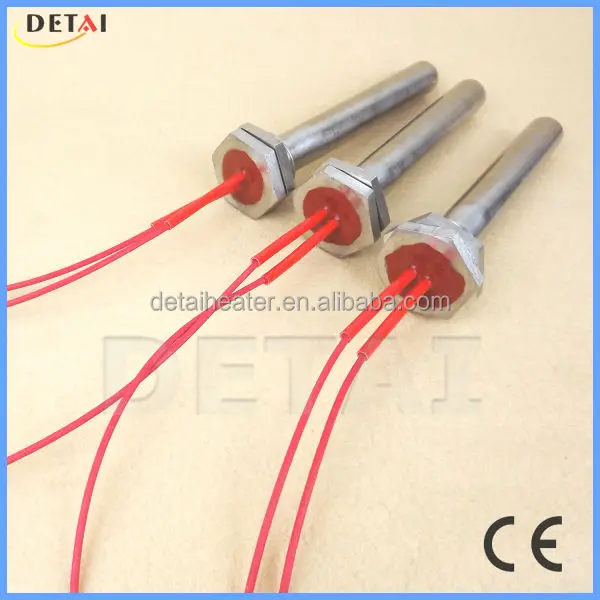

Brand Name: Detai Electric cartridge heater with thermocouple
Model Number: DAC-0182
Place of Origin: Guangdong, China (Mainland)
Widely used immersion electric cartridge heater with thermocouple
Electric cartridge heater with thermocouple application
1. Heating of Mould Tools
2. Tooling
3. Packaging Machinery
4. Heat Sealing Equipment
5. Plastic Process Machinery
6. Food Process Machinery
7. Catering
8. Printing
9. Hot Foil Printing
10. Shoe manufacturing Machinery
11. Laboratory / Test Equipment
12. Vacuum Pumps
Electric cartridge heater with thermocouple Specs, Recommended for temperatures up to 750°C
All cartridge heaters are available with a built in Thermocouple Type J or K
Sheath Material |
SUS 304/316/ Incoloy 840 |
Spirals |
Nickel - Chrome |
Insulation |
Magnesium Oxide Powder |
Voltage Supply |
12V to a maximum of 480V |
Maximum Temperature |
750 °C |
Resistance Tolerance |
+10% - 5% |
Wattage Tolerance |
+5% - 10% (closer tolerances are available upon special request) |
There are many lead options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred.
When ordering Electric cartridge heater with thermocouple , please specify the following information
1.Type of heater cartridge ( please refer to Termination Options ).
2.Ø of heater cartridge .
3.Overall length for a straight heater cartridge.
4.Wattage & voltage
5.Lead type ( glass fibre / PTFE ) & lead length.
Electric cartridge heater with thermocouple optional usage
1.Plastic Processing
2.Packaging Machinery
3.Injection and Blowing Moulding
4.Extruders
5.Foundries
6.For Fastening of turbine bolts
7.Soldering pots
