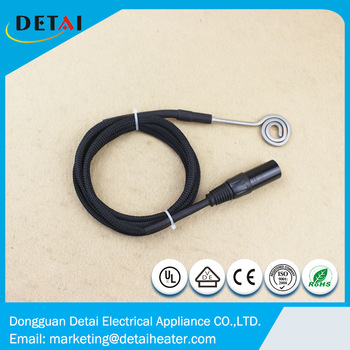

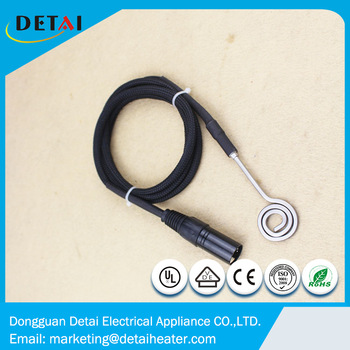

Electric flat enail coil heater with K type thermocouple

Electric flat enail coil heater with K type thermocouple

FOB Price:

US 10-50 / Piece

Min.Order Quantity:

5 Piece/Pieces

Supply Ability:

2500 Piece/Pieces per Week

Port:

Shenzhen/Hong Kong25

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

OEM flat enail coil heater

Products Model:

DTBO-F7710

Products Details
Company Profile

Quick Details

Brand Name: OEM flat enail coil heater

Model Number: DTBO-F7710

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: flat enail coil heater 15KGS per Carton Box Material of Carton:K.K
Delivery Detail: Shipped in 10 days after payment

Specifications

Electric flat enail coil heater with K type thermocouple

Production description of flat enail coil heater

Hot runner heater within 20-3000mm is mainly used for hot runner mold as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology. The wire is annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.

Specifications of flat enail coil heater

Sheath Material for Coil Heater	Cr Ni-Steel for Coil Heater
Insulation Material	MgO
Resistance Wire	Ni Cr 80-20
Maximum Sheath Temperature	700°C
Die Electrical Strength	800V A/C
Insulation	> 5 M W
Thermocouple	J type (Standard) or K type
Length Tolerance (Straight)	5%
Wattage Tolerance	+ 10% (+ 5% Available Upon Request)
Resistance Tolerance	+ 10% (+ 5% Available Upon Request)
Unheated Length	35mm (Standard)
Dimensional Tolerance	Coil I.D + 0.1 to 0.2mm
Dimensional Tolerance	Coil Length + 1mm

Features of flat enail coil heater

1. Standard sizes available with various cross section

2. Various Watt Density option available

3. Designed for even heat profile

4. Precision fit on Hot Runner Nozzles

5. Highly Non-corrosive

6. Choice of Terminal Exits

7. Advanced Thermal Engineering

8. Available with in built Thermocouple.

Applications of flat enail coil heater

1.Hot Runner & Bushings

2.Tube Extrusion

3.Pipe, rod and tube heating

4.Hot Runner Mould

5.Plastic Injection Machine

6.Plastic Extruder Machine

7.Cutting & sealing bars

8.Medical equipment

9. Semiconductor manufacturing

10.Heat tracing

Detailed Images
