500mm 1000W ruby color halogen heater elements,ruby infared lamp,shoes machine infrared quartz tube

Ruby infrared lamp is made of high-temperature heating body (tungsten wire, carbon fiber, etc.) round into strips, processing with special package, sealed in a high-quality rubies quartz glass tube, repass pumping air into vacuum state, and filling the mixture of inert gas.

Specifications and features:
1, wavelength peak:1200-1400 nm
2, pipe diameter: 8, 10, 11, 12, 14, 16mm (we usually use pipe diameter 10mm to make it.)
3, filament temperature: 1800-2400 oC
4, it can effectively filter part of the visible and ultraviolet light.

voltage:220V

power:1000W

pipe diameter: 10 mm

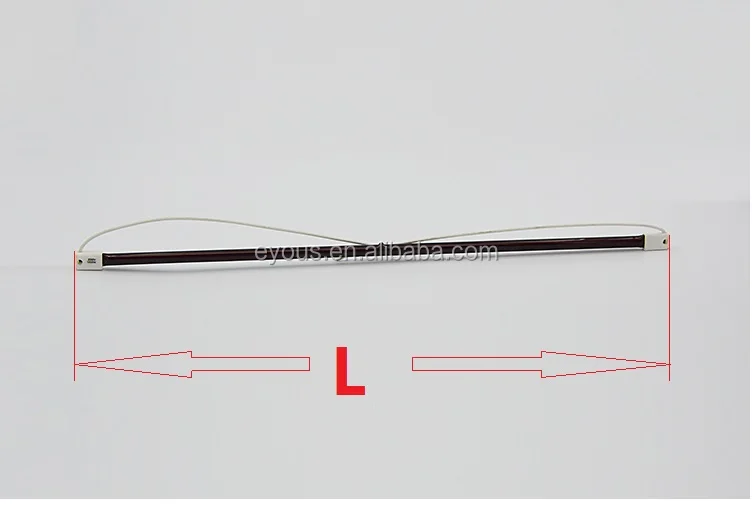

size(L):500 mm

Packaging Details: Paper carton, Wooden case, or any other packing ways as your need

Delivery Detail:  5-15 working days after payment

 Our company is specialized in the production and sales of various types of electric heating element, complete varieties, specifications comprehensive. Insist on adopting high quality material at home and abroad, specializing in the production of copper, aluminum, titanium, stainless steel material such as electric heat pipe, heating bar, hot plate, industrial special black and white porcelain electric heat tube, quartz electric heat pipe, titanium products and industrial non-standard electric heat pipe, widely used in industry, food oven, household electrical appliances, and other machinery and electronic equipment. Product life long and stable quality. We can also be customized according to customer demand of different specifications, material. There are  advanced detection equipment, strict quality management system, the factory products are in line with JB4088-85 standard, already through the CQC authentication.
