WM-30 High Temperature Circulating Industrial oil Pump with german technology
WM hot water hot oil pump
♦♦ Detailed Introduction |
WM series pump is widely used in small TCL,ultrasonic cleaning machine testinginstruments, small hot oil furnace. machine tools,rubber extruding machine and other area. the pump transfer the non flammale and explosion liquid without the particles, fiber.
♦♦ Technical Parameter |
Type |
FlangeDiameter |
Motor |
performance parameter |
Pump Weight (kg) |
|||||
Power (KW) |
(Hp) |
Voltage (V) |
Frequency (Hz) |
Speed (r/min) |
Max Head (m) |
Max Capacity (l/min) |
|||
WM-033 |
G3/4”,G1”
|
0.25 |
0.33 |
3ø-380 |
50 |
2760 |
20 |
35 |
9 |
WM-033S |
1ø-220 |
9 |
|||||||
WM-05 |
G3/4”,G1”
|
0.37 |
0.5 |
3ø-380 |
50 |
2760 |
28 |
42 |
9 |
WM-05S |
1ø-220 |
||||||||
WM-10 |
G3/4”,G1”
|
0.75 |
1 |
3ø-380 |
50 |
2760 |
38 |
56 |
12.5 |
WM-10S |
1ø-220 |
||||||||
WM-20 |
G1”
|
1.5 |
2 |
3ø-380 |
50 |
2760 |
60 |
110 |
18 |
WM-20S |
1ø-220 |
||||||||
WM-30 |
G1.5”,G1.2” |
2.2 |
3 |
3ø-380 |
50 |
2760 |
85 |
140 |
24 |
♦♦ Material |
Item |
Name |
Material |
Technical Feature |
01 |
Pump Cover |
ductile cast iron |
Brass Precision Casting and Forming, High Manufacturing Precision , Superior Hydraulic Performance; Fastened by the Bolt |
02 |
Shaft Seal Base |
||
03 |
Motor |
H Varnished Wire+SUS Spindle +CRS |
Inserting Line Automatically , Vacuum Paint Dipping, SUS304 Spindle , F class Insulation , IP54, Imported High temperature Bearing |
04 |
Mechanical Seal |
Carborundum +Graphite+Rubber+SUS spring |
Heat-Resistant , Good Abrasion Performance, Stable Performance (Customizing According to the Medium ) |
05 |
Impeller |
Copper |
High Temperature Forging Forming , High Density , High Manufacturing Precision , Superior Hydraulic Performance |

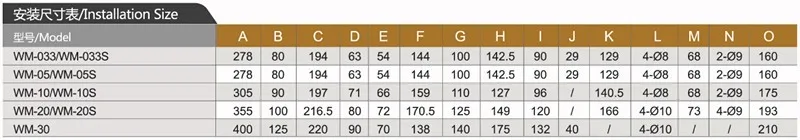

♦♦ Installing Drawing |

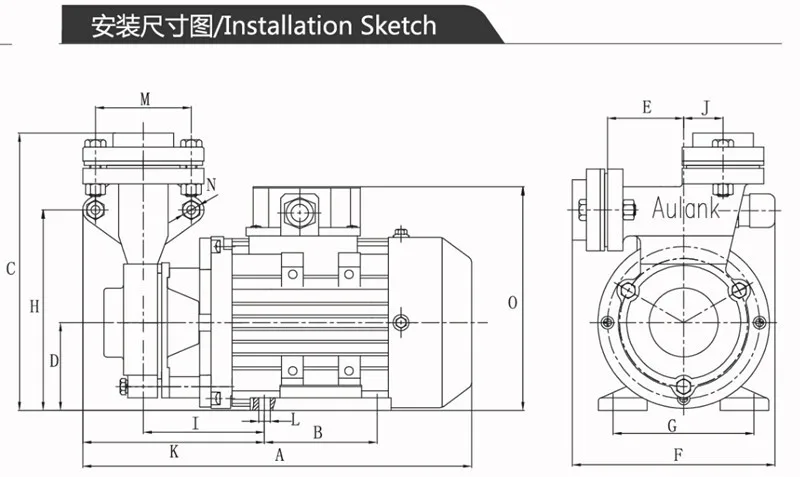

♦♦ Installation sketch |

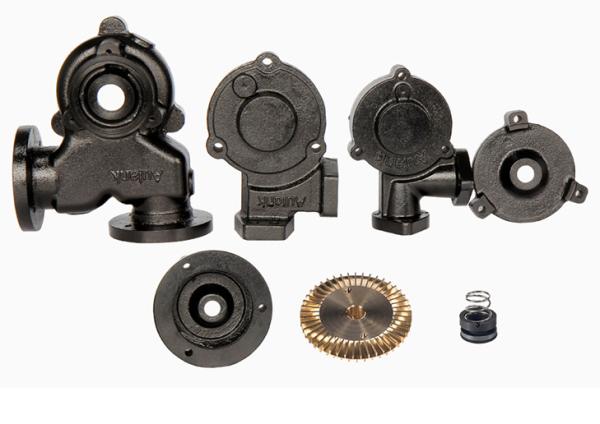

♦♦ Components parts |
♦♦ Application Scope |
