air cooler motor winding and cooling pad water air cooler for sale

FOB Price:

US 1-499 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,cash

Brand:

Xingke

Products Model:

XK-60C

Products Details
Company Profile

Quick Details

Brand Name: Xingke

Model Number: XK-60C

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export carton package. Packing size:660*670*730mm. 72 units can be loaded with a 20 feet container. 157 units can be loaded with a 40 feet container.
Delivery Detail: Shipped in 8 days after payment

Specifications

air cooler motor winding and cooling pad water air cooler for sale

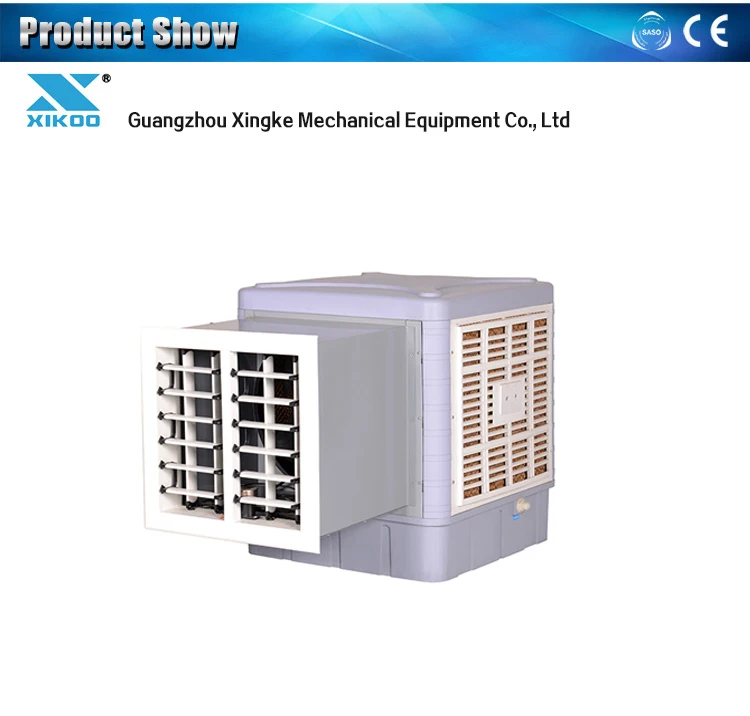

Product Show

Product Parameters

Product Parameters
Model:	XK-60C		XK-80C
Voltage/frequency:	220V/50~60HZ	12V/24V	220V/50~60Hz
Air flow:	6000m3/h		8000m3/h
Power:	80~150W		350W
Dimension(mm):	640640700MM		640640700MM
Air outlet :	430*430mm		430*430mm
Noise(dB):	53dB		60dB
Net Weight:	23KG		28KG
Applicable area:	30m2		50m2
Air Delivery:	8-10M		8-10m
Water consumption:	5-10L/h		5-10L/h
Fan type:	Axial		Centrifugal fan
Delivery time:	Within 7~15 working days		Within 7~15 working days
Packing:	Standard export carton package		Standard export carton package

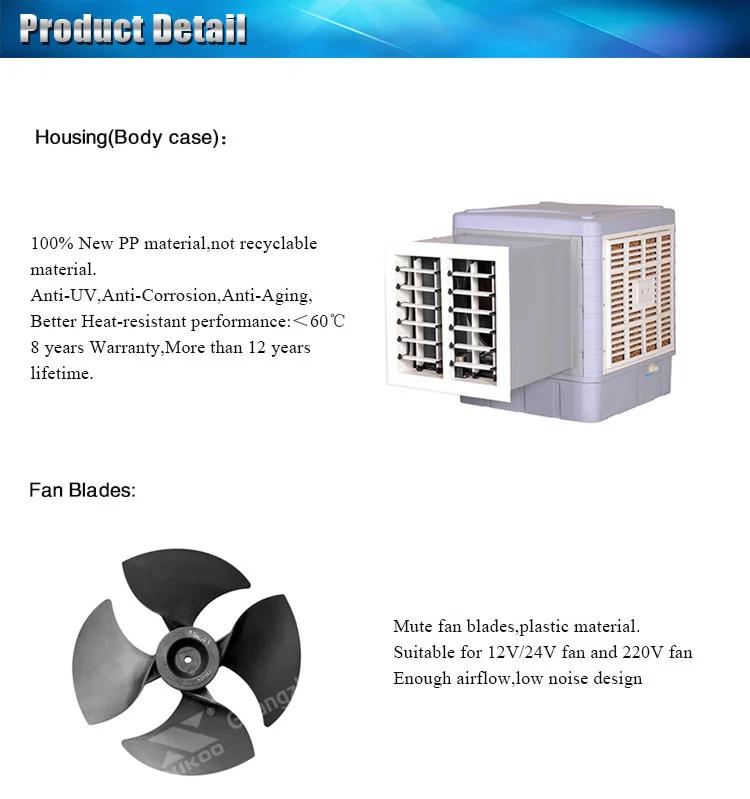

Product Detail

How does evaporative air cooler works?

A Evaporative air cooler uses the basic principle of evaporative along with simple technology and electrical power to create cold air flow. First one motor pumps water into pads of fibrous, absorbent substance similar to hay, called cellulose. Then another motor powers a fan that pushes air through the cooling pad, always pregnant with fresh water. When the entering air is very hot and very dry, some of the water evaporates into it. Evaporation needs molecular energy, otherwise known as heat, which ends up reducing the temperature of the air and adding humidity. Finally, the cooler air is pushed through a duct into a central location. Therefore, evaporative air cooler should operate in the ventilation, high temperature, dry environment.

Applicantion

Almost all place which require cooling or ventilation can be used, such as:

1.Textile, printing and dyeing , plastics , steel , machinery, ceramics, chemical industry, metallurgy, glass,

metal, leather and other industrial plants workshop;

2.Planting,electronics,footwear,printing and dyeing, clothing, printing, packaging, flld processing industry sites;

3. Hospitals hotels, stadiums, exhibition halls, schools, waiting rooms, supermarket , laundry room:

4.Kitchen markets,large-scale entertainment center, underground parking,stations and other public places

5.Greenhouse,flowers,poultry,livestock and other kinds of farms.

More Products

Company and Packing

Packing and loading

Inner:PE film & plywood pallet

Outside:Standard carton,plastic ribbon

20GP: 72 sets (CBU)

Delivery time:5~7 working days after receipt of deposit.

40HQ: 157 sets (CBU)

Delivery time:7 ~10 working days after receipt of deposit.

Exhibition

Warranty and Service

1).Warranty:

A.Completely machine:one year

B.Motor and fan blade:two years

C.Cooling pads:three years

D.Body case: more than five years

E.Other parts: one year

2).After service policy:

A.We will supply some free spare parts to our client before shipping.

B.We will try our best to give our clients the technical support all along,such as in installation,maintainence.

C.More details,please see our manual.
