HVAC Equipments Industrial Air Conditioning Units For Methanol Plant

HVAC Equipments Industrial Air Conditioning Units For Methanol Plant

Price:

US 100-20000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5 Set/Sets per Week

Port:

Guangzhou/Shenzhen

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Head-Power

Products Model:

HAC50 / SW50

Products Details
Company Profile

Quick Details

Brand Name: Head-Power

Model Number: HAC50 / SW50

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Specifications subject to changes without prior notice.
Delivery Detail: Shipped in 30 days after payment

Specifications

Product Description

Industrial Air Conditioning Units For Methanol Plant, HVAC Equipments Schedule

Project Study:

Project Name: *** Methanol Plant 7000 MTPD
HVAC Equipments: 10 sets of direct expansion air conditioning units, model HAC50/SW50, as well as 10 sets of centrifugal exhaust fan, IP55;
Delivery time: 8 weeks after payment

Specifications:

Model				HAC50
Quantity			unit	10
Cooling capacity			kW	127
Supply Air Flow			m3/h	26600
External Static Pressure			Pa	500
Power supply				400V/3PH/50Hz
Refrigeration				R134a
Mixing Air Section		Fresh air	m3/h	1400, with manual damper
		Return air		25200, with manual damper
		Damper		Manual regulation
Filter	Prefilter			Sand filter, fresh air inlet
	First filter			Washable aluminium mesh filter, after mixing section
	Section filter			Plate filter G4, afer aluminium filter
Evaporator	Capacity		kW	127
	Type			Copper tubes with aluminium fins (with anti corrosion coating)
	Frame mateial			Stainless steel SS304
Eliminator	Type			Aluminium alloy type
Drain tray	Mateial			Stainless steel SS304
Supply fan	Type			DIDW, backward centrifugal type
	Air volume		m3/h	26600
	External static pressure		Pa	500
	Motor power		kW	15 (IP55)
	Drive method			Belt drive
Dimensions(LWH)			mm	360020502300
Net weight			kg	1830

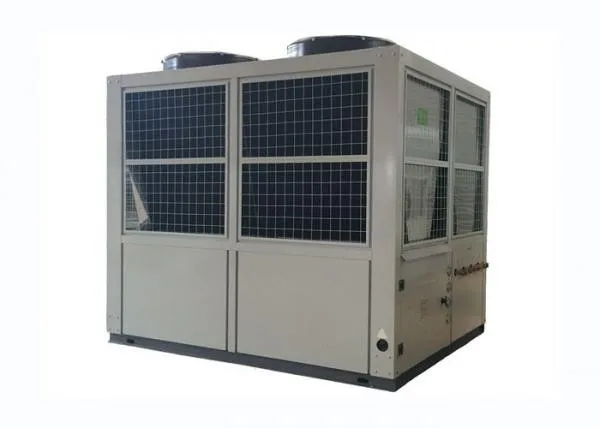

Outdoor condensing unit model				SW50
Quantity			units	10
Cooling capacity			kW	127
Compressor		Type		Copeland hermetic scroll type
		Power input	kW	37
		Quantity	pcs	4 or 6
Refrigerant				R134A
Condensing fan		Type		Low noise axial type
		Quantity	pcs	4
		Each fan power	kW	1.5, IP55
		Air flow	m3/h	19510 (each fan)
Condenser		Type		Copper tubes with aluminium fins (with anti corrosion coating)
Dimensions(LWH)			mm	2450205021
Net weight			kg	1400

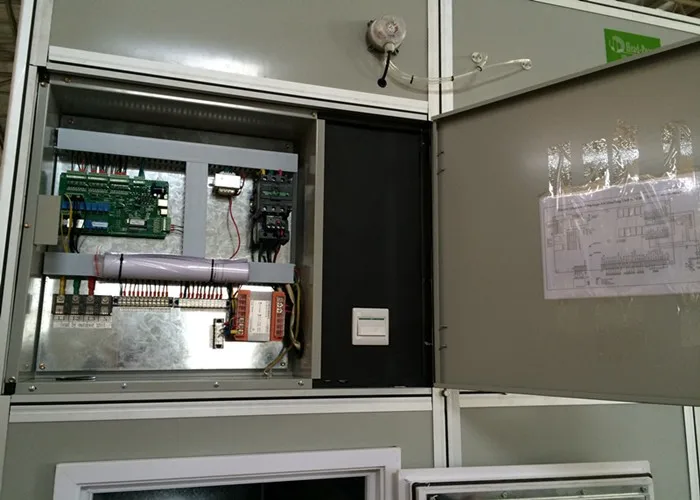

Electric controller				LCD microcomputer intelligent controller, english display screen

Description:

R134A Copeland scroll compressor, famous brand element parts.
Frame and panel: Aluminium alloy fram, anti cold bridge design; Double skin panel, 50mm thickness according to requirement and specifications, painted galvanized steel sheet panel, beautiful appearance.
Fan system: DIDW backward curved blade centrifugal fan; Impeller, shaft and casing have service lifespan for not less than 15years under normal condition; low running noise, high efficiency, finish dynamic balance test for delivery.
Motor: famous brand good quality motor, insulation class F. Belt drive, high quality V-shaped belt, anti vibration rubber or spring damper, reduce vibration transmission. Protection grade IP55 for both supply fan motor and condensing fan motor.
Copper tubes with aluminium fins, with anti - corrosion layer, suitable for anti-corrosion field. are designed with CAD software, with excellent heat exchange effect.
Drain pan: Suitable slope drain pan, easy for water drainage, stainless steel material. All pans have done leakage and pressure test.
Aluminium alloy air damper, manual regulation.
Sand filter is provided specially for fresh air intake, also plate type aluminium filter and G4 filter added for mixing section.

Advantage:

Customized service is offered for each customer, standard configuration, higher configuration, special size or apperance, as only you tell us requirements, we promise to offer satisfied solution for you.

Guangdong Head-Power Air Conditioning Co., Ltd. located at Shiling Chenbian Section,321National Highway, Shishan Town,Nanhai District, Foshan, Guangdong, China. We've been specilized in central air conditioning for over ten years, which makes us have rich experience in producing all kinds of central air conditioning, we also carry on many projects for factory, hotel, commercial building,etc .

Our factory has introduced many advanced equipments and technology from abroad and built the most authoritative platform for product testing. Besides we have a close relationship with Central South University in Hunan Province and cooperation with famous institutes. With so strong technical background, all products meet national technical standards.

We provide a wide range of products in Air Conditioning and Refrigerating, including Heat Pump Heat Recovery Unit, Water Source Heat Pump, Air Cooled Screw Chiller, Water Cooled Screw Chiller, Water Cooled Scroll Chiller, Air Cooled Scroll Chiller, Split Type Air Conditioner, Water Cooled Packaged Unit Rooftop Packaged Unit, Air Source Heat Pump, Fan Coil Unit, Air Handling Unit, Heat Recovery Fresh Air Unit, Precision Air Conditioners,Dehumidifiers,etc.Our products are widely used in factories, schools, hospitals, organizations, hotels, supermarkets,marine etc. The customers speak highly of our products.

We can also produce different type air conditioning equipments according to customers' special requirements.
The products of our company have the characteristics of low noise, energy saving and high efficiency. Head-Power follows ISO9001 international quality control system and ISO14001 international environment control system strictly, thus our product quality and services are ensured.

Water-cooled packaged unit,Chiller,Split system,rooftop packaged unit,Dehumidifier,Fresh air handling unt, Heat pump,Heat recovery unit,Metal coil slitting Machine,Leveling cross cutting machine,Flying shear equipment for factories.

Equipment takes the Pearl River Delta as the base point, radiates the Yangtze River Delta inward, encircles the Bohai economic circle, increases market share, and maintains the leading position of domestic peers. In recent years, it has continuously expanded the market of Asia, Africa and Latin America, entered Europe and America, and achieved most of the global strategic goals.
