Single Deflection Adjustable Air Direction Grille

Single Deflection Adjustable Air Direction Grille

Price:

US 5-15 / Piece

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

5000 Piece/Pieces per Month

Port:

Shanghai, Shenzhen

Place of Origin:

Sichuan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Products Model:

HY-KDB-0020

Products Details
Company Profile

Quick Details

Brand Name: HY

Model Number: HY-KDB-0020

Place of Origin: Sichuan, China (Mainland)

Packaging & Delivery

Packaging Details: Carton package, or Wooden case package, or as Customer request
Delivery Detail: --

Specifications

Name: Single Deflection Adjustable Air Direction Grille

Model: HY-KDB

Certificate

Our company’s air diffuser/grille is manufactured in compliance with the standard JG/T 14-2010 <Air outlets and inlets for ventilation and air conditioning> and JG/20-1999 <Method of testing for rating air distributor performance> of Construction Industry Standard of People’s Republic of China.

Advantages

With these advantages of reasonable design, superior materials, manufacture of high precision, complete variety, easy installation and etc. The air diffusers/grilles are all made of high quality aluminum alloy extrusions, its surface is processed by anodic oxidation, so it is smooth, clean, beautiful, corrosion resistance. The color of air diffuser/grille is natural color of aluminum-alloy (silver white), also can be other color according to customers’ requirement by spraying plastic.

Description

1. It is usually used as air outlet and return air vent, as well as supply air vent.

2. It can be directly used as air outlet.

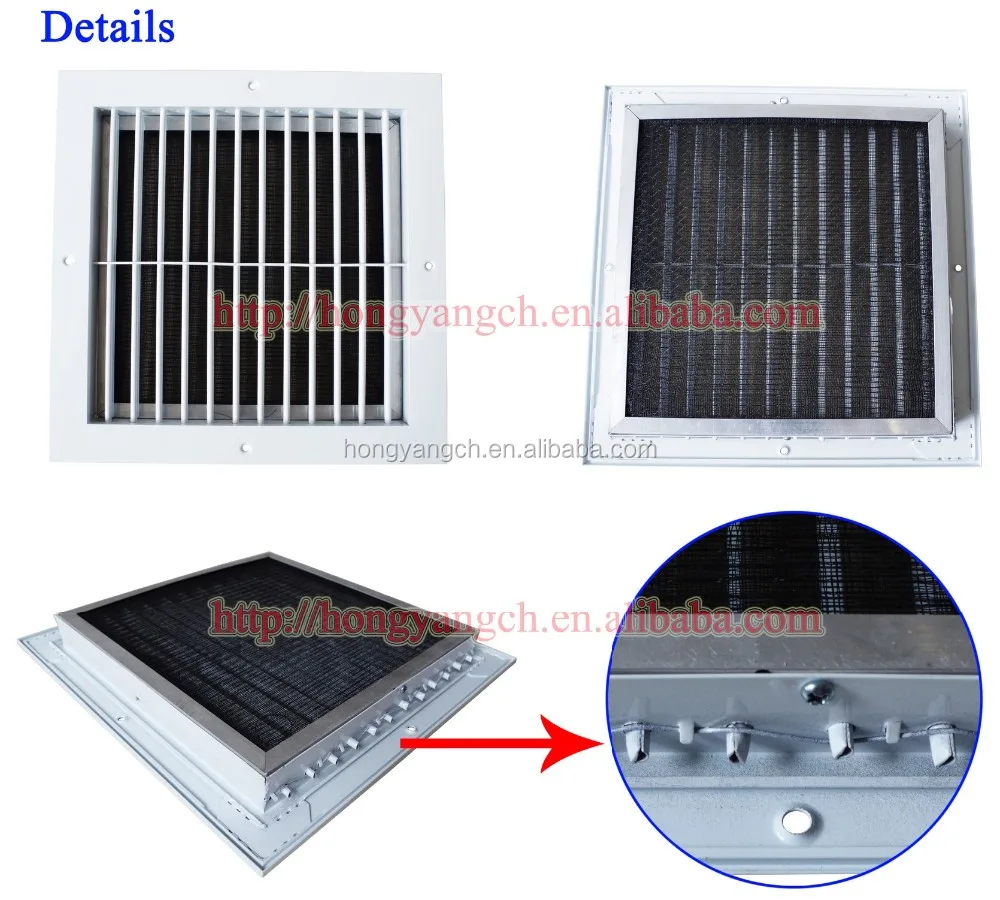

3. As the return air vent, it is derived from HY-KDB single deflection air grille. There just add an inner frame to make the blade parts into openable door structure. The openable door be opened when the bolt is unlock and it is easy to install, clean filter net, maintain. It can be equipped with HY-KFG air vent filter (HY-KFG-L aluminum net air vent filter, HY-KFG-N nylon net air vent filter).

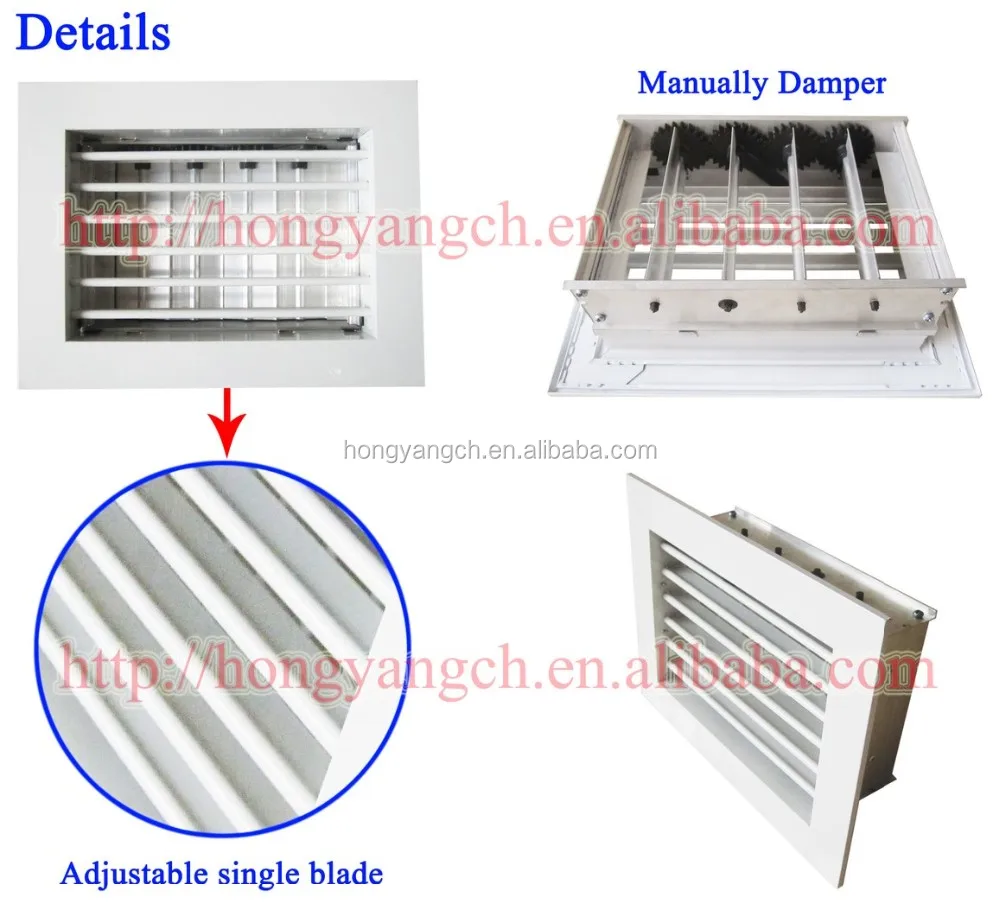

4. As the supply air vent, it can be equipped with HY-KJTrectangle air control damper (HY-KJT-S hand-operated with handle, HY-KJT-Z hand-operated with axis, HY-KJT-D electric controlled.

5. The blade can be adjusted within angle range 0~180°. It can form different diffuse angle and air supply distance by adjusting different angle combinations of blade .

6. The frame has two types of narrow and wide. In the diagram, the size in the bracket is wide type. Please definitely tell us the type of narrow or wide when you order. Otherwise, it should be manufactured according to the narrow type.

7. The blade can be parallel with the long side, or be vertical with the long side. Please definitely tell us which kind you need. Otherwise, it should be manufactured according to the parallel with the long side.

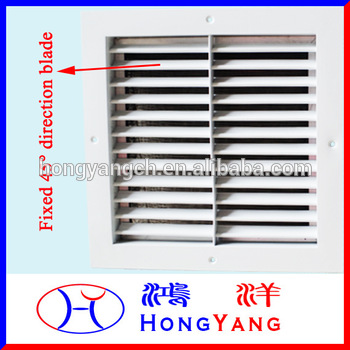

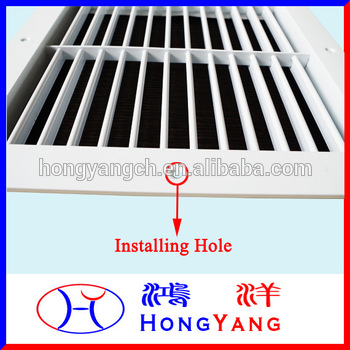

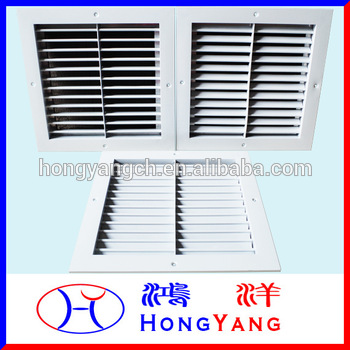

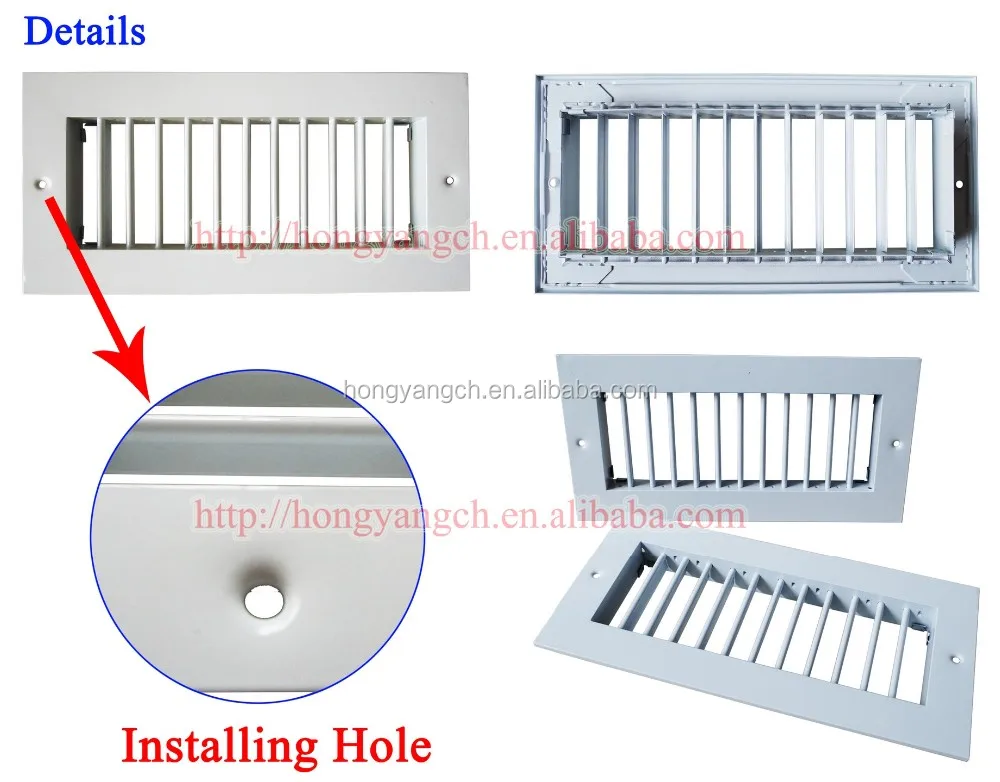

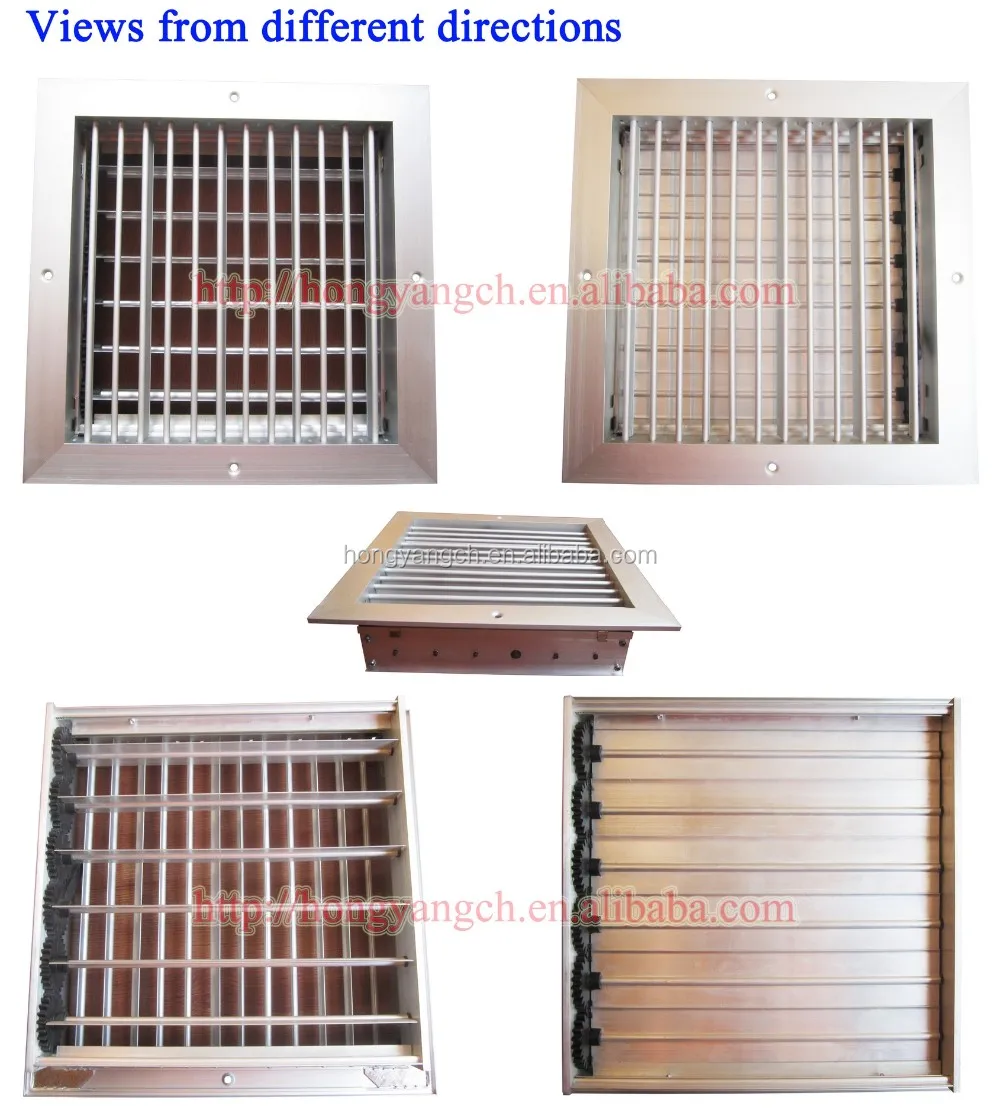

Product Picture

Our Contact Information

Sichuan Hongyang HVAC Equipment Co., Ltd. (HY)

Add: B District High-tech Industrial Park, Chengdu City, Sichuan Province, P.R.China

Tel: 0086-28-83511339 Fax: 0086-28-83511339

Sales(at)hongyangch.com Skype: Hy_daniel

Website: http://hongyangch.en.alibaba.com

Products

Projects

Certificate

Factory

Sichuan HongYang HVAC Equipment Co., Ltd. (HY) is a modern large enterprise which integrate research and development, design, produce, sell, install and maintain. The company covers an area of about 30,000 square meters, complete infrastructure, advanced technology and equipment, has a number of first-class level of production lines. Also, our company independent designs and manufactures a number of new and advanced production equipment, improve and ensure product quality and technological level. Such as: Sweeping approach bench saw of 90° (Used for product of air vent), Blade molding machine (Used for product of air volume damper and fire/smoke damper), Integrated frame working-machine (Used for product of air volume damper and fire/smoke damper), CNC hydraulic flanging machine (Used for product of air volume damper, fire/smoke damper and fan) and others advanced equipment.

Basic Information

Business Type: Manufacturer
Main Products: Sales: mechanical equipment and spare parts, central air conditioning equipment and spare parts, building materials, metal materials, hardware products, electronic products; import and export of goods; building air-conditioning equipment, ventilation system installation services. The project approved by law may be operated after approval by the relevant department.
Location: Sichuan, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS
Accepted Payment Currency: USD,RMB,EUR,CNY
Accepted Payment Type: L/C,D/P,T/T,Western Union,MoneyGram,Credit Card,PayPal,Cash
Nearest Port: shanghai,shenzhen,guangzhou
