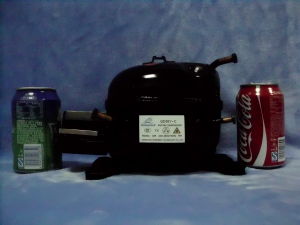

Qd35y-C R600A Refrigeration Mini Compressor 1/15HP Lbp Piston for Refrigerator

QD35Y-C R600A Refrigeration Compressor 1/15HP LBP Piston for Refrigerator
AC Compressor: R600A LBP Hermetic Piston Reciprocationg Compressor
Model: QD35Y
Power Supply: 220-240/50V/Hz
Displacement: 3.5CC
Nominal Power: 1/15HP
Rated Power: 49W
Cooling Capacity: 52W
COP: 1.07W/W
Motor Type: RSIR
Starting relay: PTC
Starting Capacitor: /μ F
Running Capacitor: /μ F
Cooling Type: S
Application: LBP
Certificate: 3C/CB/CE/VDE
1X20'FCL: 2880PCS

Application:
LBP: Low back pressure; Refrigerator, Freezer, Wine cooler
MBP: Medium Back Pressure; Air-conditioner, vending machine
HBP: High Back Pressure: Air-conditioner, ice maker

LBP ASHRAE Test Condition:
Evapration Temperature: -23.3 º C
Condensing Temperature: 54.4 º C
Subcooling Temperature: 32.2 º C
Ambient Temperature: 32.2 º C

MBP ASHRAE Test condition:
Evapration Temperature: -5 º C
Condensing Temperature: 54.4 º C
Ambient Temperature: 35 º C
Subcooling Temperature: 46.1º C
Suction Temperature: 35 º C

HBP ASHRAETest condition:
Evapration Temperature: 7.2º C
Condensing Temperature: 54.4º C
Ambient Temperature: 35º C
Subcooling Temperature: 46.1º C
Suction Temperature: 35º C

Parameter Variation Range:
Cooling Capacity: ≥ 95%
Inpurt Power: ≤ 115%
Current: ≤ 110%
COP: ≥ 95%

Cooling Type:
S: Natural cooling
F1: Fan cooling, 200mm fan diameter, 1.5m/s air speed
F2: Fan cooling, 200mm fan diameter, 3m/s air speed
