IHG Vertical stainless steel chemical transfer centrifugal pump

IHG Vertical stainless steel chemical transfer centrifugal pump

FOB Price:

USD 500-10000 / Set

Min.Order Quantity:

1 Set

Supply Ability:

1000 Set per Month

Port:

Shanghai

Place of Origin:

MADE IN CHINA

Payment Terms:

T/T

Brand:

kenshine-pump

Products Model:

IHG80-200

Products Details
Company Profile

Quick Details

Brand Name: kenshine-pump

Model Number: IHG80-200

Place of Origin: MADE IN CHINA

Packaging & Delivery

Packaging Details: plywood case
Delivery Detail: 10 days

Specifications

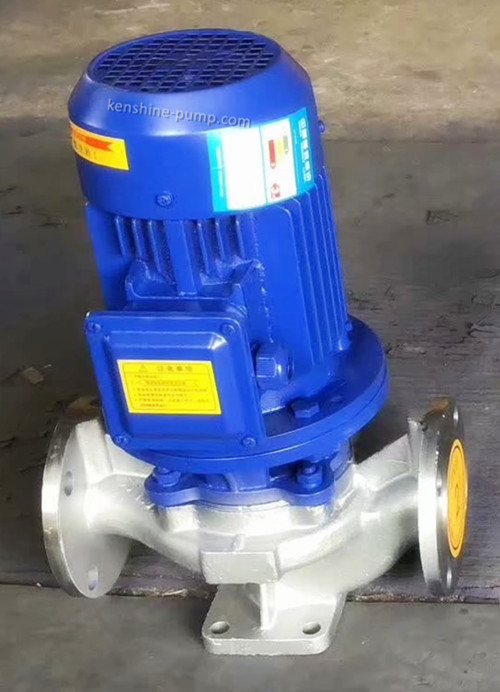

IHG Vertical stainless steel chemical centrifugal pump is made of stainless steel material(SUS304,SUS316,SUS316L etc)and driven by normal motor or explosion proof motor.

1、ISG vertical pipeline pump is used to transport the clear water and other liquids as same as clear water in physical and chemical characteristic and liquids temperature is no more than 80℃. Such as industry and city water, boost and supply water for high-building, gardening, fire fighting and warm and cooling circulation etc.
2、IRG vertical hot water pump is used for hot water boost and circulation in power resource and metallurgy and wood process and chemical industry and weave and making –paper and restaurant and city heat circulation. Liquid temperature is not more than 120℃。
3、IHG chemical industry pump is suitable to transport the corrosive liquids in weave and petroleum and chemical industry and pharmacy and food etc. Liquid temperature is -20℃～+120℃。
4、YG vertical pipeline oil pump is to transport the gasoline and kerosene and diesel oil etc petroleum product. Liquids temperature is -20℃～+120℃。

Parameter:

Model	Capacity		Head (m)	Efficiency (%)	Speed (r/min)	Power (kw)	Cavitations (NPSH)r	Weight (kg)
Model	m3/h	L/s	Head (m)	Efficiency (%)	Speed (r/min)	Power (kw)	Cavitations (NPSH)r	Weight (kg)
15-80	1.1 1.5 2.0	0.3 0.42 0.55	8.5 8 7	26 34 34	2800	0.18	2.3	17
20-110	1.8 2.5 3.3	0.5 0.69 0.91	16 15 13.5	25 34 35	2800	0.37	2.3	25
20-160	1.8 2.5 3.3	0.5 0.69 0.91	33 32 30	19 25 23	2900	0.75	2.3	29
25-110	2.8 4 5.2	0.78 1.11 1.44	16 15 13.5	34 42 41	2900	0.55	2.3	26
25-125	2.8 4 5.2	0.78 1.11 1.44	20.6 20 18	28 36 35	2900	0.75	2.3	28
25-125A	2.5 3.6 4.6	0.69 1.0 1.28	17 16 14.4	35	2900	0.55	2.3	27
25-160	2.8 4 5.2	0.78 1.11 1.44	33 32 30	24 32 33	2900	1.5	2.3	39
25-160A	2.6 3.7 4.9	0.12 1.03 1.36	29 28 26	31	2900	1.1	2.3	34
32-100	4.5	12.5	12.5	44	2900	0.55	2.0	27
32-100(I)	4.4 6.3 8.3	1.22 1.75 2.32	13.2 12.5 11.3	48 54 53	2900	0.75	2.0	32
32-125	3.5 5 6.5	0.97 1.39 1.8	22 20 18	40 44 42	2900	0.75	2.3	28
32-125A	3.1 4.5 5.8	0.86 1.25 1.61	17.6 16 14.4	43	2900	0.55	2.3	28
32-160	6.5	5	32	44	2900	1.5	2.3	39
32-160A	4	1.1	25	34	2900	1.1	2.0	38
32-160(I)	4.4 6.3 8.3	1.22 1.75 2.32	33.2 32 30.2	34 40 42	2900	2.2	2.0	4.7
32-200	4.5	12.5	50	32	2900	3	2.0	55
32-200(I)	4.4 6.3 8.3	1.22 1.75 2.32	50.5 50 48	26 33 35	2900	4	2.0	43
32-200A	2.8 4 5.2	0.78 1.11 1.44	44.6 44 42.7	34 40 42	2900	2.2	2.0	74
40-100	4.4 6.3 8.3	1.22 1.75 2.31	13.2 12.5 11.3	48 54 53	2900	0.55	2.3	32
40-100A	3.9 5.6 7.4	1.08 1.56 2.06	10.6 10 9	52	2900	0.37	2.3	32
40-125	4.4 6.3 8.3	1.22 1.75 2.31	21 20 18	41 46 43	2900	1.1	2.3	34
40-125A	3.9 5.6 7.4	1.08 1.56 2.06	17.6 16 14.4	40 45 41	2900	0.75	2.3	33
40-160	4.4 6.3 8.3	1.22 1.75 2.31	33 32 30	35 40 40	2900	2.2	2.3	47
40-160A	4.1 5.9 7.8	1.14 1.64 2.17	29 28 26.3	34 39 39	2900	1.5	2.3	43
40-160B	3.8 5.5 7.2	1.06 1.53 2.0	25.5 24 22.5	34 38 37	2900	1.1	2.3	38
40-200	4.4 6.3 8.3	1.22 1.75 2.31	51 50 48	26 33 32	2900	4.0	2.3	74
40-200A	4.1 5.9 7.8	1.14 1.64 2.17	45 44 42	26 31 30	2900	3.0	2.3	62
40-200B	3.7 5.3 7.0	1.03 1.47 1.94	38 36 34.5	29	2900	2.2	2.3	52
40-250	4.4 6.3 8.3	1.22 1.75 2.31	82 80 74	24 28 28	2900	7.5	2.3	105
40-250A	4.1 5.9 7.8	1.14 1.64 2.17	72 70 65	24 28 27	2900	5.5	2.3	98
40-250B	3.8 5.5 7.0	1.06 1.53 1.94	61.5 60 56	23 27 26	2900	4.0	2.3	77
40-100(I)	8.8 12.5 16.3	2.44 3.47 4.53	13.2 12.5 11.3	55 62 60	2900	1.1	2.3	34
40-100(I)A	8 11 14.5	2.22 3.05 4.03	10.6 10 9	60	2900	0.75	2.3	32
40-125(I)	8.8 12.5 16.3	2.44 3.47 4.53	21.2 20 17.8	49 58 57	2900	1.5	2.3	38
40-125(I)A	8 11 14.5	2.22 3.05 4.03	17 16 14	57	2900	1.1	2.3	33
40-160(I)	8.8 12.5 16.3	2.44 3.47 4.53	33 32 30	45 52 51	2900	3.0	2.3	56
40-160(I)A	8.2 11.7 15.2	2.28 3.25 4.22	29 28 26	44 51 50	2900	2.2	2.3	47
40-160(I)B	7.3 10.4 13.5	2.38 2.89 3.75	23 22 20.5	50	2900	1.5	2.3	43
40-200(I)	8.8 12.5 16.3	2.44 3.47 4.53	51.2 50 48	38 46 46	2900	5.5	2.3	85
40-200(I)A	8.3 11.7 15.3	2.31 3.25 4.25	45.0 44 42	37 45 45	2900	4.0	2.3	75
40-200(I)B	7.5 10.6 13.8	2.08 2.94 3.83	37 36 34	44	2900	3	2.3	63
40-250(I)	8.8 12.5 16.3	2.44 3.47 4.53	81.2 80 77.5	31 38 40	2900	11	2.3	145
40-250(I)A	8.2 11.6 15.2	2.28 3.22 4.22	71.0 70 68	38	2900	7.5	2.3	95
40-250(I)B	7.6 10.8 14	2.11 3.0 3.89	61.4 60 58	37	2900	5.5	2.3	94
40-250(I)C	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36	2900	5.5	2.3	88
50-100	8.8 12.5 16.3	2.44 3.47 4.53	13.6 12.5 11.3	55 62 60	2900	1.1	2.3	36
50-100A	8 11 14.5	2.22 3.05 4.03	11 10 9	60	2900	0.75	2.3	35
50-125	8.8 12.5 16.3	2.44 3.47 4.53	21.5 20 17.8	49 58 57	2900	1.5	2.3	43
50-125A	8 11 14.5	2.22 3.05 4.03	17 16 14	57	2900	1.1	2.3	38
50-160	8.8 12.5 16.3	2.44 3.47 4.53	33 32 30	45 52 30	2900	3.0	2.3	59
50-160A	8.2 11.7 15.2	2.28 3.25 4.22	29 28 26	44 51 50	2900	2.2	2.3	51
50-160B	7.3 10.4 13.5	2.38 2.89 3.75	23 22 20.5	50	2900	1.5	2.3	47
50-200	8.8 12.5 16.3	2.44 3.47 4.53	52 50 48	38 46 46	2900	5.5	2.3	101
50-200A	8.3 11.7 15.3	2.31 3.25 4.25	45.8 44 42	37 45 45	2900	4.0	2.3	80
50-200B	7.5 10.6 13.8	2.08 2.94 3.83	37 36 34	44	2900	3	2.3	68
50-250	8.8 12.5 16.3	2.44 3.47 4.53	82 80 77.5	29 38 40	2900	11	2.3	160
50-250A	8.2 11.6 15.2	2.28 3.22 4.22	71.5 70 68	38	2900	7.5	2.3	115
50-250B	7.6 10.8 14	2.11 3.0 3.89	61.4 60 58	37	2900	5.5	2.3	114
50-250C	7.1 10.0 13.1	1.97 2.78 3.64	53.2 52 50.4	36	2900	5.5	2.3	108
50-100(I)	17.5 25 32.5	4.86 6.94 9.03	13.7 12.5 10.5	67 69 69	2900	1.5	2.5	41
50-100(I)A	15.6 22.3 29	4.3 6.19 8.1	11 10 8.4	65 67 68	2900	1.1	2.5	36
50-125(I)	17.5 25 32.5	4.86 6.94 9.03	21.5 20 18	60 68 67	2900	3.0	2.5	56
50-125(I)A	15.6 22.3 29	4.33 6.19 8.1	17 16 13.6	58 66 65	2900	2.2	2.5	48
