Home > Products > Water System > Water Pump

YW,YWP Submerged sewage pump

FOB Price:

USD 300-10000 / Unit

Min.Order Quantity:

1 Unit

Supply Ability:

1000 Unit per Month

Port:

Shanghai

Place of Origin:

MADE IN CHINA

Payment Terms:

T/T

Brand:

kenshine-pump

Products Model:

YWP150-180-30-30

Products Details
Company Profile

Quick Details

Brand Name: kenshine-pump

Model Number: YWP150-180-30-30

Place of Origin: MADE IN CHINA

Packaging & Delivery

Packaging Details: plywood case
Delivery Detail: 10 days

Specifications

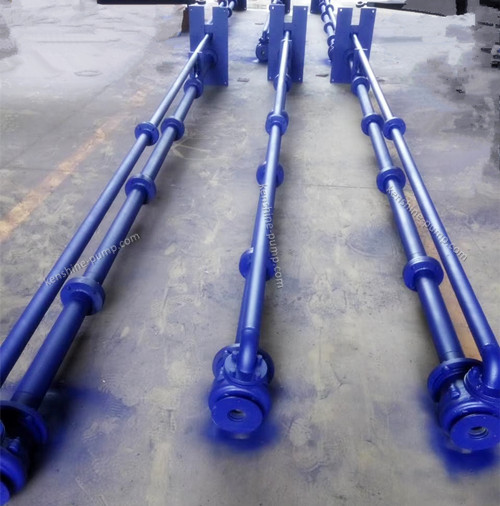

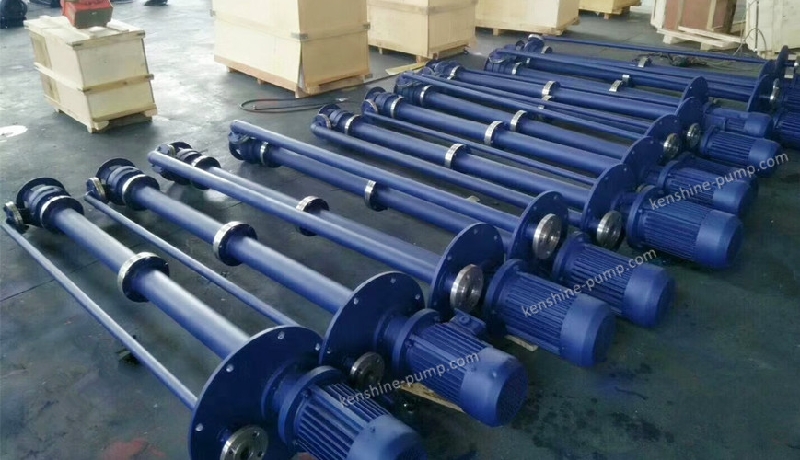

YW,YWP Submerged sewage pump is made of cast iron or stainless steel material. The pump is used to transfer the wastewater or waste liquids with solid grain or fiber etc impurity and not clogged.

The submerged depth for the pump can be done according to the working requirements.

1.YW non-clogging vertical sewage pump waste water submerged pump is used to drain dirty water, waste water, rainwater, and living water in cities containing solid grains and various long fabrics.

2. It has two models of single pipe and double pipes. Pipes below the fixed plate may be submersible, at least the pump casing at the bottom should be submerged in water.

3. The impeller adopts particular large channel structure, so the drain capacity has been improved greatly.

4. The sewage submerged pump is mainly used for municipal works, industrial buildings, hotels, civil air defense, mines etc. To drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.

Technical parameter sheet:

Model	Speed	Power	Efficiency
outlet-flow-head	(r/min)	(kw)	(%)
(mm)(m3/h)(m)
25-8-22-1.1	2825	1.1	38.1
32-12-15-1.1	2825	1.1	40
40-15-15-1.5	2840	1.5	42
40-15-30-2.2	2840	2.2	48
50-20-7-0.75	1390	0.75	54
50-10-10-0.75	1390	0.75	56
50-20-15-1.5	2840	1.5	55
50-15-25-2.2	2840	2.2	56
50-18-30-3	2880	3	58
50-25-32-5.5	2900	5.5	53
50-20-40-7.5	2900	7.5	55
65-25-15-2.2	2840	2.2	52
65-37-13-3	2880	3	55
65-25-30-4	2890	4	58
65-30-40-7.5	2900	7.5	56
65-35-50-11	2930	11	60
65-35-60-15	2930	15	63
80-40-7-2.2	1420	2.2	52
80-43-13-3	2880	3	50
80-40-15-4	2890	4	57
80-65-25-7.5	2900	7.5	56
100-80-10-4	1440	4	62
100-110-10-5.5	1440	5.5	66
100-100-15-7.5	1440	7.5	67
100-85-20-7.5	1440	7.5	68
100-100-25-11	1460	11	65
100-100-30-15	1460	15	66
100-100-35-18.5	1470	18.5	65
125-130-15-11	1460	11	62
125-130-20-15	1460	15	63
150-145-9-7.5	1440	7.5	63
150-180-15-15	1460	15	65
150-180-20-18.5	1470	18.5	75
150-180-25-22	1470	22	76
150-130-30-22	1470	22	75
150-180-30-30	1470	30	73
150-200-30-37	1480	37	70
200-300-7-11	970	11	73
200-250-11-15	970	15	74
200-400-10-22	1470	22	76
200-400-13-30	1470	30	73
200-250-15-18.5	1470	18.5	72
200-300-15-22	1470	22	73
200-250-22-30	1470	30	71
200-350-25-37	1480	37	75
200-400-30-55	1480	55	70
200-350-40-75	980	75	70
250-600-9-30	980	30	74
250-600-12-37	1480	37	78
250-600-15-45	1480	45	75
250-600-20-55	1480	55	73
250-600-25-75	1480	75	73
250-800-12-45	1480	45	76
300-500-15-45	980	45	70
300-800-15-55	980	55	73
300-600-20-55	680	55	75
300-800-20-75	980	75	78
300-950-20-90	980	90	80
300-1000-25-110	980	110	82
350-1100-10-55	980	55	84.5
350-1500-15-90	980	90	82.5
350-1200-18-90	980	90	83.1
350-1100-28-132	740	132	86.2
350-1000-36-160	740	160	78.5
400-1500-10-75	980	75	82.1
400-2000-15-132	740	132	85.5
400-1700-22-160	740	160	82.1
400-1500-26-160	740	160	86.5
400-1700-30-200	740	200	83.5
400-1800-32-250	740	250	82.1
400-1760-7.5-55	540	55	82.1
500-2500-10-110	740	110	82
500-2600-15-160	740	160	83

Our company is specialized in water pumps, electromechanical equipments and accessories etc for many years
Various fluid pumps(centrifugal pump, chemical industrial pump, submersible pump, self priming pump, sewage pump, electromagnetic pump, diaphragm pump, gear pump, screw pump etc and their parts such as mechanical seal, pump casings, coupling, impellers etc)
Oil drilling equipments and parts (triplex mud pump, mud valve, drilling motor, drilling bits and parts of mud pumps such as piston, cylinder, valves and seats etc)
Mechanical parts and tools, instruments etc
Our products are widely exported to Egypt, Indonesia, Lebanon, Qatar, Israel, Vietnam, Philippines etc countries and product quality & prices and service etc are recognized by our clients. Our company has our own independent export rights and got rid of the shipment from import and export agent and then has the advantages such as low cost, convenient operation, good service etc.
Based upon the motto of “Development from science, survival from quality, image from brand and superiority from service“ and the marketing philosophy of “customers foremost and pure-hearted service. We are committed to provide users with high quality products and satisfactory service by advanced production management and rigorous quality control with low cost. Welcome new and old clients inquiries and cooperation.
