Tonsen Craft Beer 1000L Stainless steel Fermentation Tank

Fermentation Tank

Stainless  steel 1000L Beer conical fermenter

This Fermentation Tank is widely applied in beer production line.Mainly used for beer fermenting.It can be used as both fermentation tank and storage tank.According to different fermenting request, the structure of fermenting tanks could be designed accordingly.

General speaking, the fermentation tanks/fermentors have dished heads, cone bottom, polyurethane insulation layer, dimple cooling jacket and all matched valves and pipes.



Fermentor Structure:

Tank internal and exterial wall are made of international quality standards of sanitary 304 stainless steel.
The inlet and outlet pipes are installed in conical bottom.Tank equipped with cleaning system, roof device, outlet tube, inflatable device, liquid level meter, sampling valves, temperature sensor and so on.

Could be equipped with PLC control system and fulfill fully automatic or semi-automatic controlling.

The ratio between tank diameter and height is 1:2 ~ 1:4, cone angle 60 degree ~ 90 degree.Of course, all could be deisged based on customer request.

Inner tank - cooling jacket - insulation layer - outer tank

Note: Other capacity fermenters could be customized based on your actual requirement.

More Pictures

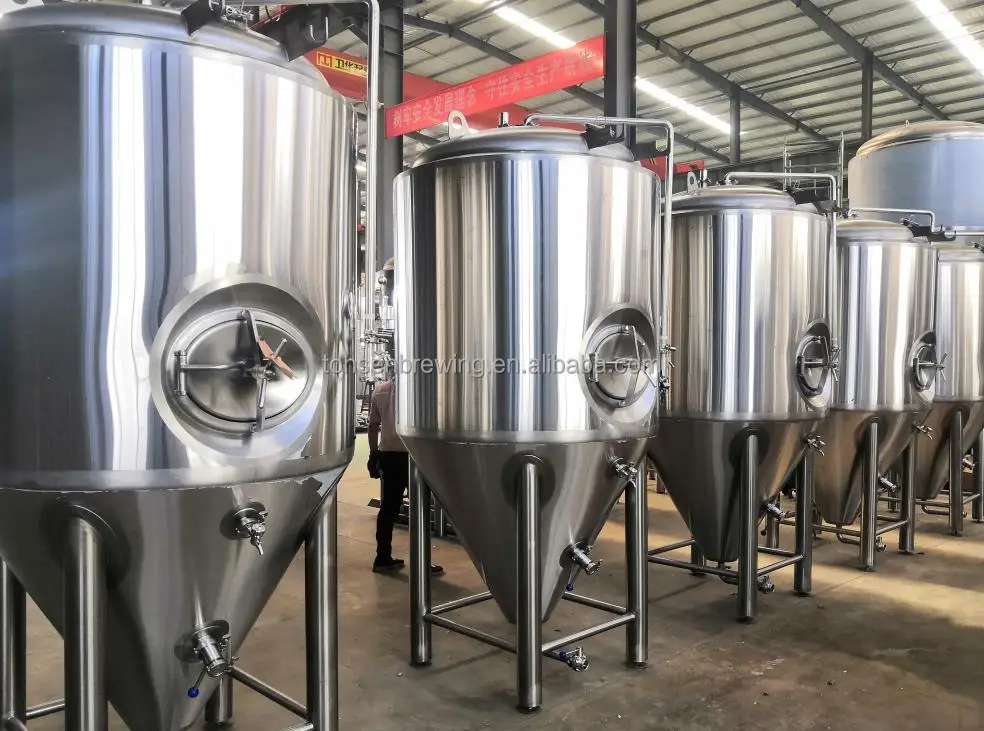

1000 liter CCT fermentation tanks with Side manway


More Pictures

Detail Image

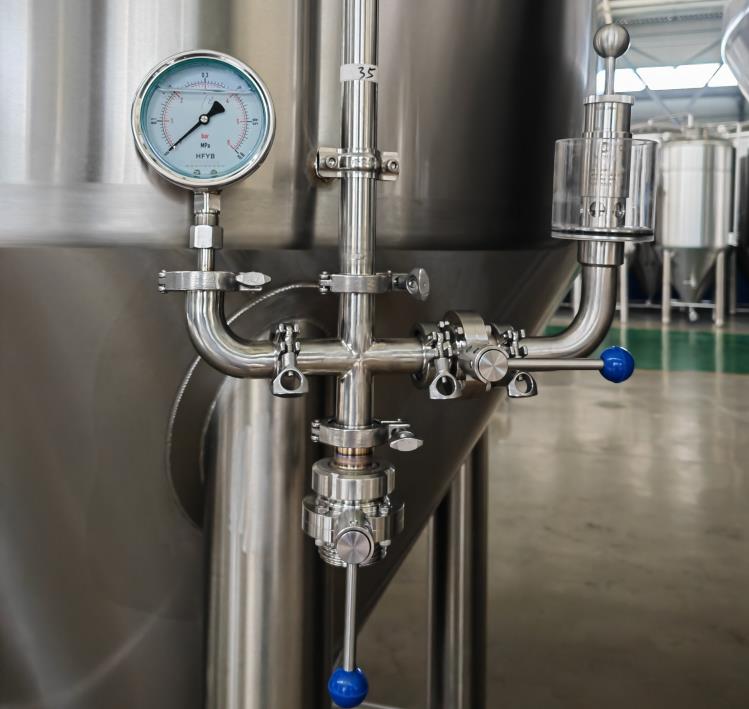

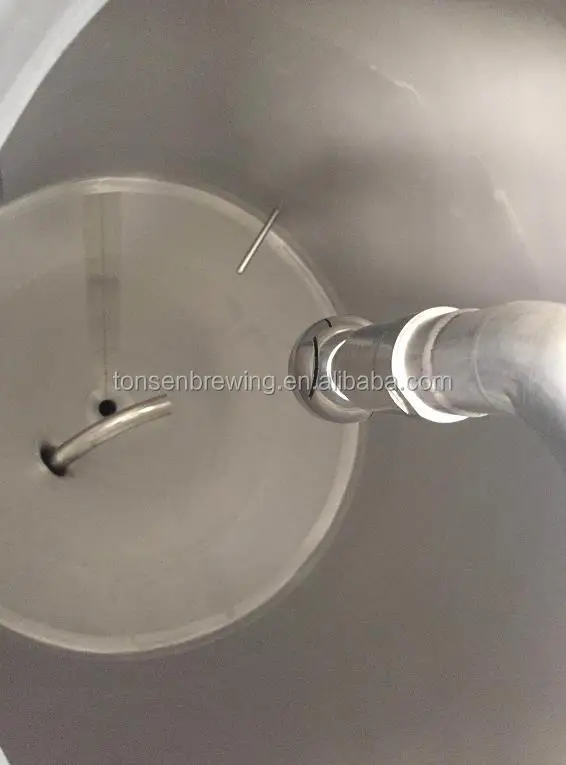

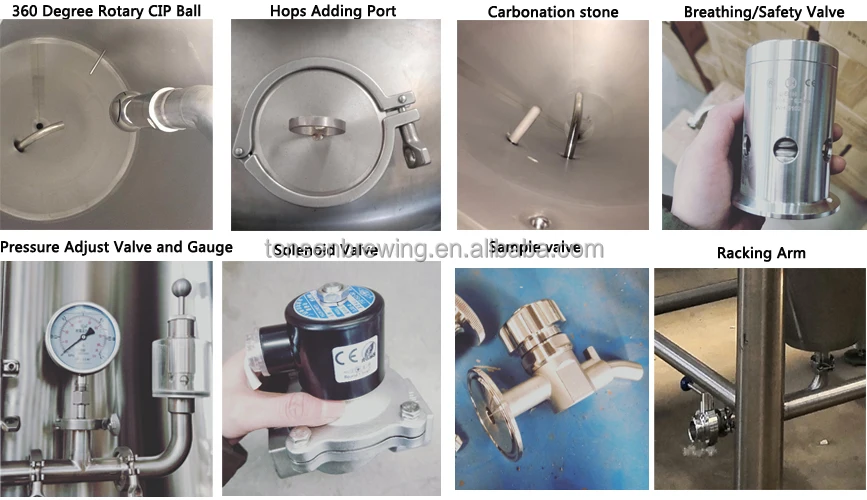

Fermentation tank detail pictures:

Packaging & Shipping

Our Company

Shandong Tonsen Equipment Co., Ltd. is an international comprehensive factory in China.

Our company has 80 front-line production employees,10 production management staff,5 top Professional and 8 technical personnel.

All equipments produced according to CE standard that to be used in brewery, hotel, restaurant, hotel, brewpub, bars and teaching laboratory.

ShandongTonsen supply high quality beer brewing equipment, installation service and brewing technique training.
