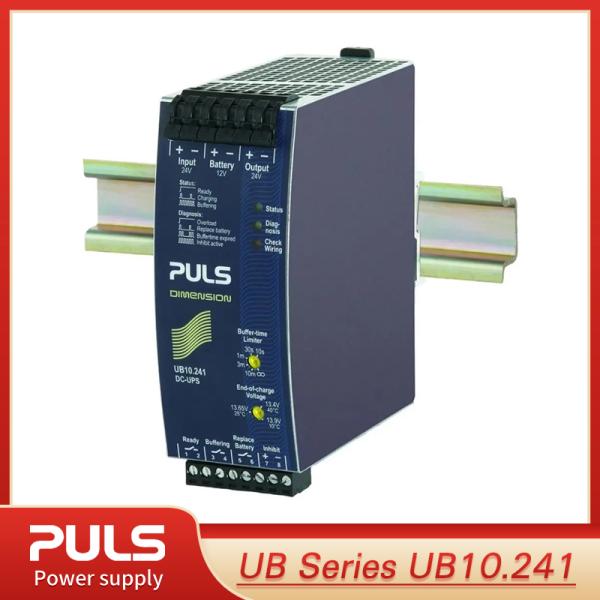

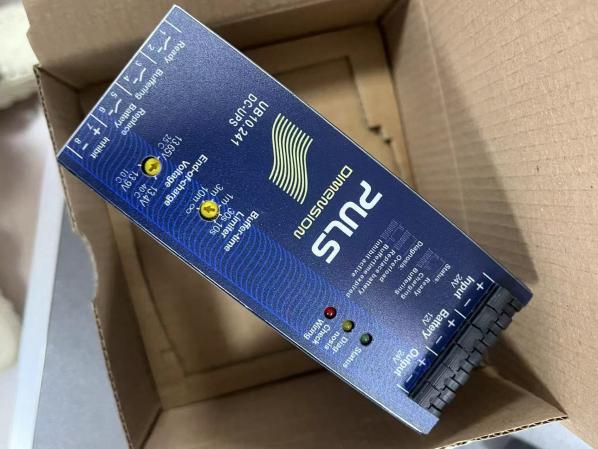

Puls Dimension Ub10.241 Power Supplies DC-UPS Control Unit 24V 10A

Puls Dimension Ub10.241 Power Supplies DC-UPS Control Unit 24V 10A

FOB Price:

USD 200-230 / Piece

Min.Order Quantity:

1 Piece

Supply Ability:

100 Piece per Day

Port:

Ningbo

Place of Origin:

Czech Republic

Payment Terms:

T/T, Western Union, Cash

Brand:

PULS

Products Model:

Ub10.241

Products Details
Company Profile

Quick Details

Brand Name: PULS

Model Number: Ub10.241

Place of Origin: Czech Republic

Packaging & Delivery

Packaging Details: carton
Delivery Detail: 1-2 days

Specifications

UB10.241

DC-UPS control unit
24 V, 10 Afor battery sizes from 3,9Ah to 40Ah

DC output	DC 24 V
	10 A
Input	DC 24 V
Dimensions (WxHxD)	49 x 124 x 117 mm
Weight	530 g

Input data

DC Input voltage	DC 24 V
Int. current consumption (incl. charging current)	1.3 A

Output data

Nominal voltage	24 Vdc
	22.5 Vds
Output current	15 A
	10 A
Derating	0.25 W/°C for >+60 °C

Buffering

Storage element	External lead acid battery
Allowed battery size	12 V, 3.9 to 40 Ah VRLA lead acid
Temperature tracking of the end-of-charge voltage	manual-select

Overview

Dimensions (WxHxD)	49 mm x 124 mm x 117 mm
Weight per unit (excl. packaging)	530 g
Mounting method	DIN rail
Operating temp. range	-25 °C to 70 °C
Connection method	Spring clamps
MTBF SN 29500 @ 40 °C (h)	886000 h
DC-OK signal	yes

Puls Dimension Ub10.241 Power Supplies DC-UPS Control Unit 24V 10A
