SHTDE-11 Thermal Expansion Valve (SH)

FOB Price:

US 28-29 / Set

Min.Order Quantity:

100 Set/Sets

Supply Ability:

10000 Set/Sets per Month

Port:

SHANGHAI,NINGBO

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

SANHENG

Products Model:

SHTDE11

Products Details
Company Profile

Quick Details

Brand Name: SANHENG

Model Number: SHTDE11

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Each product packed in single box, then pack in big carton box.
Delivery Detail: 20-25 Days

Specifications

SHTDE-11 Thermal Expansion Valve (SH)
1)One-way outfall type
2)Suited for R22, R134a and R407C

SHTDE-11 Thermal Expansion Valve (SH)

Product Description

Product	SHTDE11 Thermal Expansion Valve
Model	SHTDE11
Brand	SANHENG

Product Introduction

SHTDE(B) Series thermal expansion valve, which adopts the top class technic, is used

for air-conditioner system, heat pump, auto air-conditioner, chiller, and traditional refrigeration system.

It is a throughway valve and is solder connected with refrigeration system.

SHTDE: One-way outfall type

Have K, AC and N series for different temperature range

Suited for R22, R134a and R407C

Specifications

A wide type of thermal expansion valve form Sanheng Refrigeration

Manufacturer

Max. sensing bulb temperature	150°C
Max. Valve Body Temperature	120°C
Max. short term Valve Body Temperature	150°C
Max. Work Pressure	28bar
Max. Testing Pressure	32bar

MOP

Te: evaporating temperature Pe: evaporating pressure

Refrigerant	K Series -25°C~+10°C	AC Series -10°C~+15°C
Refrigerant	Te=+15°C/+60°F	Te=+20°C/+68°F
R22	Pe=100psi/6.9bar	Pe=120psi/8.5bar
R407C	Pe=95psi/6.6bar	Pe=115psi/8.0bar
R134a	Pe=55psi/5bar

K=-25°C~+10°C MOP 100psi/ 6.9bar

AC=-10°C~+15°C MOP 120psi/ 8.5bar

N=-40°C~+10°C

SS=4K

Outfall Type	Model	Connection Size		Nominal Refrigerating Capacity (KW)
Outfall Type	Model	in	mm	R22	R407C	R134a
One-way	SHTDE3	3/8×5/8	10×16	10.5	10.5	8.1
	SHTDE3	1/2×5/8	12×16	10.5	10.5	8.1
	SHTDE4	1/2×7/8	12×22	14	14	10.8
	SHTDE6	1/2×5/8	12×16	21	21	16.2
	SHTDE6	1/2×7/8	12×22	21	21	16.2
	SHTDE6	5/8×7/8	16×22	21	21	16.2
	SHTDE7.5	5/8×7/8	16×22	26	26	20
	SHTDE8	5/8×7/8	16×22	28	28	22
	SHTDE11	5/8×7/8	16×22	38.5	38.5	30
	SHTDE11	5/8×1-1/8	16×28	38.5	38.5	30
	SHTDE12.5	5/8×7/8	16×22	44	44	34
	SHTDE12.5	5/8×1-1/8	16×28	44	44	34
	SHTDE16	5/8×1-1/8	16×28	56	56	43
	SHTDE16	7/8×1-1/8	22×28	56	56	43
	SHTDE19	7/8×1-1/8	22×28	66.5	66.5	51

Remark: Nominal refrigerating capacity is based on the condensing temperature 32°C,evaporating emperature 5°C.

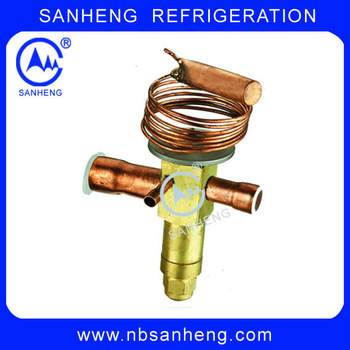

Product Image
