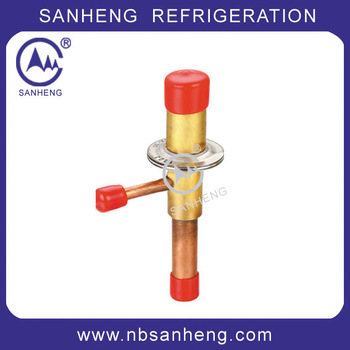

Cheap Discharge Bypass valve Constant Pressure Expansion Valve CGX-05

FOB Price:

US 10-12 / Set

Min.Order Quantity:

100 Set/Sets

Supply Ability:

10000 Set/Sets per Month

Port:

NINGBO,SHANGHAI

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

SANHENG

Products Model:

Discharge Bypass valve (CGX-05)

Products Details
Company Profile

Quick Details

Brand Name: SANHENG

Model Number: Discharge Bypass valve (CGX-05)

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Each Product is packed in single box
Delivery Detail: 20-25 days

Specifications

Cheap Discharge Bypass valve Constant Pressure Expansion Valve CGX-05

Production

The basic function of the Model CGX Discharge-Bypass Valve by our company is that it can open or close within measure automatically when outlet pressure varies to ensure the outlet constant on the set value in manual regardless the influence of the inlet pressure(within a certain range). It plays different roles when installing in different places.

Features

The Discharge-bypass valve is used in the refrigerating compressor set, which is not equipped with energy unloading device, to realize the systematic energy regulation.

The Discharge-bypass valve can be used as automatic expansion valve under fixed pressure to maintain the fixed evaporation pressure (temperature).

The Discharge-bypass valve is capable to prevent the refrigerating compressor set from extract pressure decreasing lower than the minimum value.

Connecting means: Flare with thread and ODF copper pipe welding.

Suitable mediums: various kinds of Freon and hydrocarbon compounds.

Maximum working pressure: 2.8MPa

Specification

Type	Adjustment rang	Capability(KW)			Factory setting	Connecting size ODF
Type	Adjustment rang	R134a	R22	R502	Factory setting	Connecting size ODF
CGX-05	0~0.7 Mpa	1.5	2.8	2	0 Mpa	Inlet: 8 Outlet: 10
CGX-08		2.4	4.5	3
CGX-10		3	5.6	3.8
CGX-15		4.2	8.4	5.8
CGX-20		5.7	11.2	7.5
CGX-30		8.5	16.8	11.7

Type	Adjustment rang	Capability(KW)			Factory setting	Connecting size ODF
Type	Adjustment rang	R134a	R22	R502	Factory setting	Connecting size ODF
BV-1	0.05~0.7 Mpa	1.8	3.5	2.4	0.4 Mpa	Flare M18 1.5 M16 1.5 ODF 10 1
BV-2		3.5	7	4
BV-3		5.5	10.5	7.3
BV-4		7.5	14	8.5
BV-5		9	17.5	12.3

v Pay by T/T, LC

v Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refuse

paypal fee when you choose it

v Loading Port: ShangHai or NingBo, China

v Samples are available within 7-10 working days.

v Mass Production Delivery: 20 -50days after sample confirmation
