Newest design electronic thermostat ed330 temperature controller

Thank you for you attention.

Carmen is here waiting for you!

Advantages of Zhongshan Shangfang Instrument Meter Co,.Ltd

1.Rich experience. We have been specialized in digital temperature controller for 15 years.

2. Customer-centric. We have our own technical team and production line. We design and manufacture the products according to customers’ requirements.

3. High quality & reasonable price. We develop high quality products with 15 years endeavor. Our products are CE, CQC, UL, ROHS, TUV approved.

Model:ED330(Heating and Cooling selectable)

Newest design electronic thermostat ed330 temperature controller

Features

• Temperature Control
• Refrigerating & heating modes selection
• Value Storing
• Self Testing

Technical data

Range of temperature display:-45~120℃  (-40~248℉)
Range of set temperature:-45~120℃  (-41~248℉)
Accuracy:±1℃ (±2℉)
Resolution:0.1℃ (-19.9~99.9℃)
Relay output: N.O. 10A/250VAC
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

Note:It can work with 230VAC or 120VAC.

Parameter

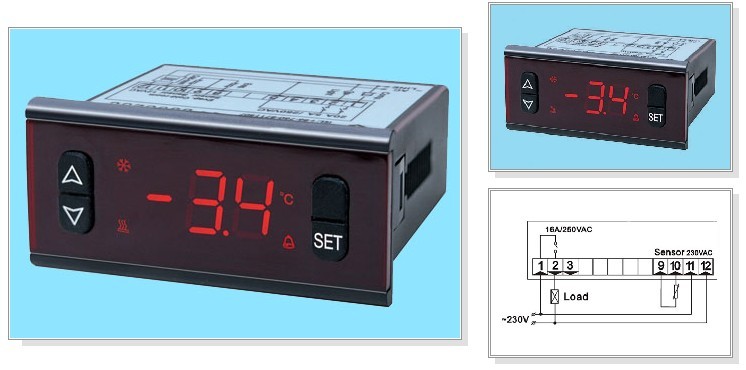

Wiring Diagram

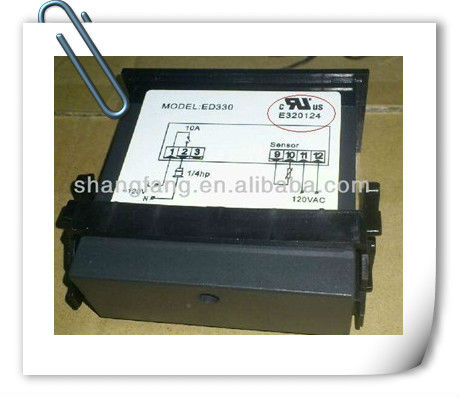

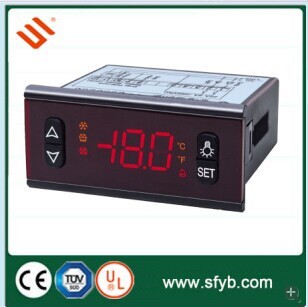

Photos for ED330

Our products have to pass the strict aging testing before packaging.

Is it your desired temperature controller?

If your answer is "yes", Carmen will quote it for you!

If your answer is "no",just tell us your requirements,we will recommend a suitable one for you.

Excellent service is provided as you are our distinguished clients!

Please do not hesitate to contact me!
