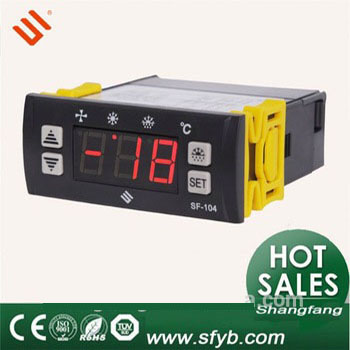

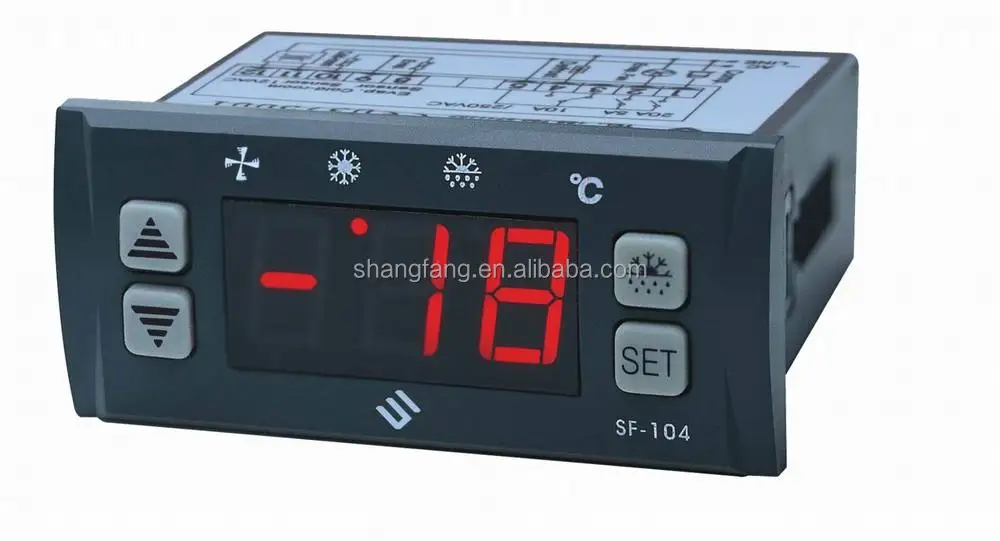

SF-104P Password Commercial Refrigerator Temperature Controller Cold Storage Thermostat

FOB Price:

Open price

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

30000 Unit/Units per Month

Port:

Zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Shangfang

Products Model:

SF-104P

Products Details
Company Profile

Quick Details

Brand Name: Shangfang

Model Number: SF-104P

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 50pcs/standard export carton, carton size:49.5x43.5x18.5cm
Delivery Detail: 15 business days

Specifications

Product Description

Product Breif Recommendation

Product Name	Digital Temperature Controller
Brand	Shangfang
Model	SF-104P
Features	Digital temperature display and control, ideal for freezer, defrost by electric heater. Enter parameter setup by password.

Technical Data

1 Temperature control
2 Evaporator fan control
3 Automatic/manual defrost by electric heater
4 Time/temp. seting to end defrost
5 Celsius/Fahrenheit degrees
6 Re-start delay

7 Range of temperature displayed : -45~45°C(-40~120°F)
8 Range of set temperature: -45~45°C (-40~120°F)
9 Accuracy:±1°C (±2°F)
10 Compressor: N.O. 30A/250VAC
11 Defrost: N.O. 30A/250VAC
12 Evap. Fan: N.O. 30A/250VAC

Dimension
Dimension:77(Length)×35(Width)×30(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

Parameter

Parameter	Function	Set range	Default
PA	Password	00~99
E1	Lower setpoint limit	-45℃/-45℉~Set temp.	-22℃/-8℉
E2	Higher setpoint limit	Set temp.~45℃/120℉	10℃/50℉
E3	Temp.Hysteresis	1~20℃/1~36℉	5℃/9℉
E4	Comp.start delay time	0~10Min	2Min
E5	Offset on room temp.	-20~20℃/℉	0
E6	Offset on evap.temp.	-20~20℃/℉	0
F1	Max.defrost duration	1~60Min	20Min
F2	Defrost interval time	0~24Hr	4Hr
F3	Defrost termination temp.	0~30℃/32~68℉	12℃/54℉
F4	Display during defrost	0=Normal display 1=Last value before defrost	1
F5	Fan operating function	0=Parallel with comp. 1 = Continuous running except defrost 2= Evaporator temper-ature control	0
F6	Dripping time	0~10 Min	2Min
F7	Fan delay start mode after defrost	0=time 1=Controlled by F9	1
F8	Fan delay start time after defrost.	0~10Min	2
F9	Fan start temp. (Defrost sensor temp.)	-30~30℃ -22~86℉	-4℃ 25℉
C1	Temperature unit	Celsius=℃Fahr.= ℉	℃
C2	High temperature alarm	Set value~49℃/121℉~OFF	40℃ 104℉
C3	Low temperature alarm	OFF~~44℃/44℉~Set value	OFF
C4	Alarm time delay	0~90Min	30Min

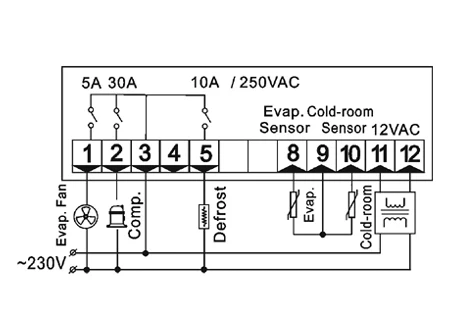

Wiring Diagram

Packaging & Shipping

Package:

50 pieces per carton

Shipping:By sea or by air.

Company Information

Shangfang,established in 1998, started from customizing digital temperature controllers for freezer manufacturers.

We produced digital temperature & humidity controllers widely used in refrigeration,air conditioning,heating,food and packaging machinery etc according to market demand.

As you all know, there are many Shangfang products on alibaba.com, maybe our price is higher, but I hope you believe what price, what goods. 14 years endeavor establishes our brand and good reputation, which worths your trust!

According to the idea of "Credit standing roots quality, quality creates brand", Shangfang is ISO9001:2000 certified.

Each production procedure is processed under austere safety& quality control, each product needs pass strict aging, environmental temperature& humidity tests before leaving factory to ensure the customers choose Shangfang all over the world can use the controllers of excellent quality. On the other hand, we struggle with our suppliers every day, so that to make sure our quality higher and cost of material lower.

We attend Refrigeration Trading Show every year.

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.
