30A compressor relay adjustable low temperature fan control digital thermostat 230V with sensors SF-205

                                           About Shangfang

       We're the manufacturer and have been customizing temperature controllers and humidity controllers for heating and refrigeration equipment manufacturers since 1998.

The controllers are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.

We believe that " Concentration leads us professional."

We are GMC(Global Manufacturer Certificate).

                                        Product Description

                                        Technical Data

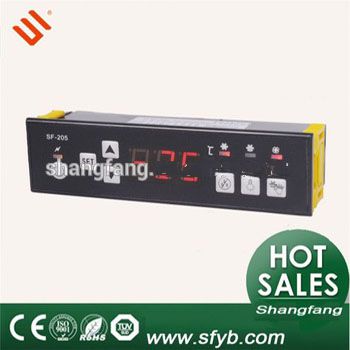

CE refrigerator electronic thermostat SF-205

Features

1.It is an intelligent controller and applicable to the compressor of one HP.
2.Temperature Display / Temperature Control
3.Automatic defrost by electric heater or hot gas/Light Control
4.Electric heater defog
5.High,Low temperature alarm
6.Self Testing /Parameter Locking

Technical Data

1.Range of temperature display:-45~150°C
2.Range of set temperature:-45~50°C
3.Accuracy:±1°C
4.Temperature sensor: NTC, two sensors,2m(L)
5.Compressor:  N.O.  30A/250VAC  (applicable to one HP  Compressor,

                            if more it needs to connect an  AC contactor)
6.Defrost:      N.O. 10A/250VAC
7.Evap. Fan:    N.O.  5A/250VAC
8.Light:        N.O.  5A/250VAC
9.Defog:       N.O. 10A/250VAC
10.Dimensions:142(Length)×40(Width)×40(Depth)mm
11.Mounting hole dimensions:138(Length)×32.5(Width)mm

                                           Product Show

sensors

Packing: 50pcs/carton

                                          Certification

                                     Our Factory

                                              What We Supply

  Transparent and waterproof panel, equip with anti-drip case on the back.

                               2013 China Refrigeration Exhibition

                   How to choose a suitable model with Shangfang

                     Thank you for your interest to our product.

*Do you feel confused that the model is not perfectly meet your require?

*Do you think that you don't really understand the specification well?

Dear friends, What are you waiting for?  Please contact us now.

+We will provide you the detail specification, more photos etc.

+We have professional technical team will solve your problem.

+And there are many customized options, so there is always one suitable for you.

+Custom product for acceptable order quantity.

Shangfang controller, your BEST CHOICE!!

We look forward to hear from you! Have a nice day!
