Economical water source heat pump water heater for hot water cooling underfloor heating system

FOB Price:

US 599-3,999 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

900 Piece/Pieces per Day

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON

Products Model:

DE-92W/SBE-heat pump

Products Details
Company Profile

Quick Details

Brand Name: DERON

Model Number: DE-92W/SBE-heat pump

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Case.Fibre complex board-pump water
Delivery Detail: 25 days after receiving deposit-pump water

Specifications

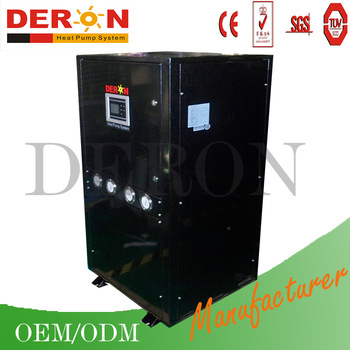

Economical water source heat pump water heater for hot water cooling underfloor heating system

DERON Heat Pump ground source Unit with CE,CB,SAI, IEC

Main components

Copenland with R417a or Daikin with R410a scroll compressor, high efficiency and stable functions.

Emerson ALCO thermal expansion valve, with accurate and stable throttling performance.

Adoped high efficiency stainless steel heat exchangers for Evaporator and Condensor.

Coated steel or #304 stainless steel case, avoiding rust and durable.

Strict noise control. Floating support for compressor to reduce vibration at the most extent and Sandwich noise insulation inside the cabinet and noise jacket for compressor to reduce noise mostly.

Parameter list

Ground source heat pump
Model	DE-27W/SBE	DE-46W/SBE	DE-92W/SBE
Power(V/ph/Hz)	220/1/50	380/3/50	380/3/50
* Heating capacity(kw)	7.6	12.8	27.2
* Rated power input(kw)	2.0	3.3	6.7
** Heating capacity(kw)	7.2	12.2	25.9
**Rated power input(kw)	2.3	4.0	7.2
*** Heating capacity(kw)	6.8	11.6	24.4
***Rated power input(kw)	2.4	4.1	8.3
**** Heating capacity(kw)	5.6	9.5	19.2
****Rated power input(kw)	2.7	4.6	9.2
Refrigerant	R417A
Refrigerant weight(g)	2000	2800	2800*2
Max current(A)	19.5	13	25
Rated water temp.(°C)	55	55	55
Max.water temp.(°C)	60	60	60
Level against electric shock	l	l	l
Water-proof grade	IPX4	IPX4	IPX4
Net weight(kg)	80	120	250
Net size(mm)	600470830	600620830	7006501270
Required hot water flow rate(m3/h)	2.2	4	8
Required water source flow rate(m3/h)	1.8	3.2	6.4
water connection	G1"	G1"	G1-1/4"
Noise dB(A)	≤40	≤42	≤44

Test condition

*Heating: Water source temp. (In/Out):15°C /7°C, Water temp. (Initial/Final):15°C/55°C.
**Heating: Water source temp. (In/Out):10°C/7°C, Water temp. (In/Out):30°C/35°C.
***Heating:Water source temp. (In/Out):0°C,Water temp. (In/Out):30°C/35°C.

****Heating:Water source temp. (In/Out):-5°C,Water temp. (In/Out):30°C/35°C.

Installation

Certificates:

Our promise:

--- Energy efficient
Reduce energy cost and greenhouse gas emission.
--- Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low pressure protection, phase sequence protection etc.
--- Convenience and economic
A perfect substitute for solar panels, electric & gas water heaters.
Can be installed where solar roof collectors aren’t suitable and looks better.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strict quality control
ISO industry standards.
Standard & strict manufacture process.
Every product must be tested and double checked before package.
---Eligible for trade and distribution
CE, CB, CCC, WATERMARK, SAA, AUSTRALIA STANDARD, etc.
---Customer orientation
DERON provide you optimized solutions and product customization as well as globalized customer services.
--- Satisfaction guarante
18 months warranty for air-to-water heat pumps and water-to-water heat pumps, and 24 months special for swimming pool heat pumps.

Please don’t hesitate, click right now! Deron is your best choice.
We welcome your visit to our factory.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
