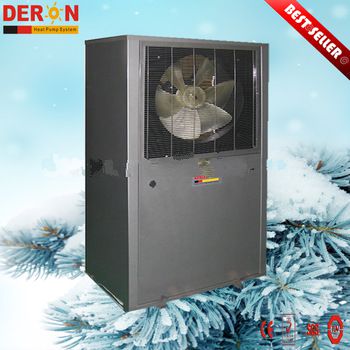

Minus 25 degree C DERON air to water evi heat pump for heating/ cooling for Slovenia cold area 10 - 20KW/h

FOB Price:

US 850-2,150 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

8000 Unit/Units per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

DERON/ OEM&ODM

Products Model:

DE-27W/CW - EVI HEAT PUMP

Products Details
Company Profile

Quick Details

Brand Name: DERON/ OEM&ODM

Model Number: DE-27W/CW - EVI HEAT PUMP

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export package,carton or ply-wooden package.
Delivery Detail: Shipped in 15 days after payment

Specifications

Monoblock hot sale air to hot water evi heat pump

High Efficient in minus 25 degree C

EVI technology heat pump's Feature :
1. Working air temperature range: -25 C to 45 C
2. Max outlet hot water temperature: 60 C
3. Working mode is changeable between heating and cooling.
4. Copeland Enhanced vapor injection (EVI) technology scroll compressor
5. R410A/ R143a/ R407c/ R417a green refrigerant
6. Special design for cold climate area

EVI air source heat pump (for house heating and cooling) is designed special for house heating and cooling
system in the market where lowest air temperature is above -25C.

Application:

EVI Air To Water Heat Pump High Temperature | air water evi Heat Pump High Temperature

EVI air source heat pump (for house heating and cooling) is designed for house heating and cooling, user can change the working mode by operating wired panel of controller. Compressor start / stop according to air conditioning system water temperature, when all rooms reach preset temperature by room thermostat, heat pump will be turned off through remote ON / OFF switch.

Model		DE-27W/CW
Power supply	V/Ph/Hz	380/3/50
1)Heating capacity	kW	12
	BTU	40944
Rated power input	kW	2.7
2)Heating capacity	kW	10.3
	BTU	35144
Rated power input	kW	2.6
3)Heating capacity	kW	9.1
	BTU	31049
Rated power input	kW	2.6
4)Heating capacity	kW	6.6
	BTU	22519
Rated power input	kW	2.5
Refrigerant		R407C
Compressor	Type	Scroll
Fan	Qty	1
Required water flow rate	m3/h	2.2
Water connection		G1"
Max. current	A	7.5
Noise	dB (A)	≤60
Max. water temp.	℃	60
Operation temp. range	℃	-25-45
Net weight	kg	130
Net size(L/W/H)	mm	820×500×1480
1)Heating by Ambient temp.(DB/WB): 20℃ /15℃ and Water temp.(in /out): 15℃/55℃;
2)Heating by Ambient temp.: 7℃ and Water temp.(in /out): 30℃/35℃;
3)Heating by Ambient temp.: 2℃ and Water temp.(in /out): 30℃/35℃;
4)Heating by Ambient temp.: -10℃ and Water temp.(in /out): 30℃/35℃;
Above information just for your reference, Please subject to the nameplate on the unit

Certificates

Company Information

Top 10 Brand Deron Heat Pump is being sold well to more than 30 countires with over 10 years OEM experience. Deron is a national key heat pump enterprise in Guangzhou, China. We devote to researching and producing high quality heat pump products. Our products work to provide space heating, space cooling or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc.

Deron heat pump R&D center mainly comprises a passionate R&D team of 28 technicians and 3 advanced laboratories. The labs have imported sophisticated equipment from Italy, USA and so on by investing more than USD1.6 million and approved by TUV for cooperating according to EN14511 standards. They make it possible to test EVI air to water heat pump even in -25℃ low ambient area, and applied to test air source heat pump and water/ground source heat pump. Deron R&D center provide a strong assurance for heat pump search and application.

WHY CHOOSE DERON

DERON specialized in manufacturing heat pump
** Since 2005, more than 300 employees, covering an area of 30,000 sqm
** More than 5 production line, 40 innovative patent, China High tech enterprise
** DERON is China's top 10 heat pump brand, one of a designated supplier of central goverment
** National standard R&D laboratories passed IISO14001, ISO9001 and CE, RoHS, IEC, ErP etc certificate.
** Experienced engineer team with rich development and installation experience
** OEM/ ODM service available

Detail description for installation case above:

-- Deron air to floor heating evi heat pump 110PCS DE-360W/DW [Qingdao JiHongTan Building]

-- Deron heating cooling trinity heat pump 33PCS DE-46W/CR , swimming pool heat pump 7PCS DE-46W/CY + 4 PCS DE-46W/CRY[Shanghai MaoYue Hotel]

-- Deron air source to hot water heat pump 13PCS DE-92W/D[Shenzhen China Canon factory] + 20PCS DE-92W/D[Zhongshan China Canon factory]

-- Deron air source swim pool heat pump 9PCS DE-92W/DY[Shenzhen Vanke estate] ...

Top selling in Deron

More Deron Products Click On The Following:

Air to Water Heat Pump EVI Heat Pump Water to Water Heat Pump Residential Heat Pump

♥ Thanks for reading, any quesiton please just contact us!

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
