Home > Products > Heating > Heat Pump

EVI air to water split ground mounted heat pump, Guangzhou

FOB Price:

US 300-3,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Guangzhou

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T

Brand:

Deron

Products Model:

DE-46W/CWF

Products Details
Company Profile

Quick Details

Brand Name: Deron

Model Number: DE-46W/CWF

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export packing. (Carton or Fibre complex board)
Delivery Detail: 20-30 working days

Specifications

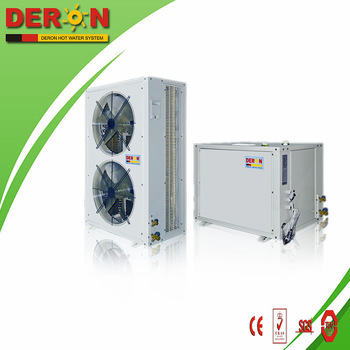

EVI air to water split heat pump
Work down to -25 degree
Auxiliary electronic heater
Copeland R407C compressor
Anti-freezing

EVI airt to water split ground mounted heat pump, Guangzhou

What’s Deron EVI heat pump?

With advanced EVI(enhanced vapor injection) technology, Deron EVI heat pump can work stably at extremely low ambient temperature with high COP.

This type heat pump has a 2.5 COP at -15℃ with 60℃hot water output and can safely work in -25℃outside air temperature.

What’s the detail?

Strong points:

1. Hot water output temperature up to 60℃.

2. Suitable for cold area, safely working in -25℃ ambient temperature.

3. COP can be up to 2.5, at -15℃.

4. Eco-friendly refrigerant: R407A.

5. Automatic defrosting function included (with reverse cycle valve inside).

6. Anti-corrosion case: durable coating; no-screw design with stainless steel bolts and nuts, no rust.

7. General testing and operational test carried out for each item before package in the factory.

8. Comprehensive protection --- ensures trouble free operation in extremely cold ambient.

1) Anti-freezing protection 2) Water flow protection

3) Over high pressure protection 4) Over low pressure protection

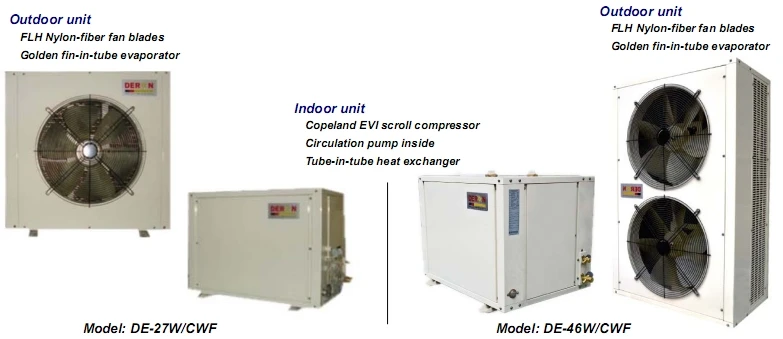

Structure

Main components:

Compressor:Copeland new designed scroll compressor with Gas injection increase enthalpy

Heat exchanger: Stainless steel plate heat exchanger & Coaxial Coil heat exchanger

Evaporator: Hydrophilic high efficiency fin-tube evaporator, Golden color

Expansion valves: Main thermal expansion valves & Spray thermal expansion valves

Electromagnetic valve: Emerson electromagnetic valve

Fan: FULIHUA fan with nylon fibred blades, durable, lower noise, longer life.

Controller: Deron self-designed multi-function digital control panel.

Parameter:

Model	DE-46W/CWF
Power Supply	380V/3Ph/50Hz
*Heating Capacity (W)	19000
*Heating Power Input (W)	4600
**Heating Capacity (W)	10200
**Heating Power Input (W)	4300
Refrigerant/weight (g)	R407C/5000
Circulation Pump Water Flow (m3/h)	4
Max. Discharge Pressure (MPa)	3
Max. Suction Pressure (MPa)	1.2
Level against Electric Shock	I
Water-proof Grade	IPX4
Noise dB (A)	≤60
Indoor Unit Weight (kg)	130
Outdoor Machine Weight (kg)	30
Indoor Unit Size (mm)	800X600X625
Outdoor Unit Size (mm)	8004501265
*Ambient temp.(DB/WB):20℃/15℃;Water temp.(Initial/Final):15℃/55℃
**Ambient temp.(DB/WB): -15℃;Water temp.(Initial/Final): 15℃/55℃

Key process:

We conduct strict process to ensure high quality of heat pump.

Package & Delivery

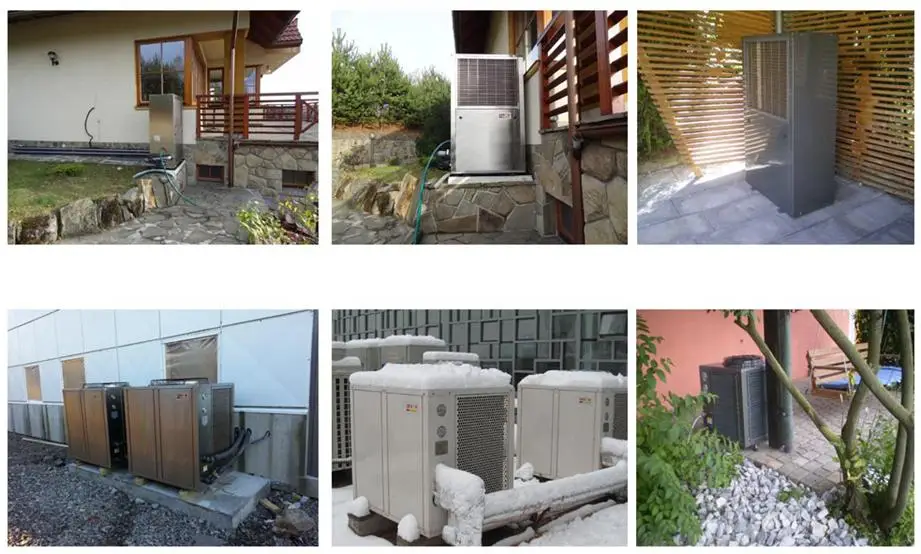

Installation scene

Certificates:

Quality control:

1) Complying with ISO9001 quality system.

2) TUV attestation for laboratory.

3) Using world famous Copeland compressor.

4) Complete Inspection covering water system and electricity, ensuring stable hot water production.

5) Equipped with high efficient compressor jacket for heat preservation.
6) Electric Expansion valve with accurate flow control and gas distribution.

Our company story:

Profile

Deron is a national key heat pump enterprise of nine years professional experience in Guangzhou, China. We owns a production centre of 30,000 square meters, producing air to water heat pumps, water to water heat pumps and swimming pool heat pumps, including over 100 models vary from 0.8kw to 250kw. We introduced advance producing and testing equipments from Italy, Japan, USA and Germany covering 3 CNC lines, 3 bending lines, 2 welding lines, 3 automatic production lines and 3 TUV certificated laboratories, which is able to test the heat pump under EN 14511 standard. Our products work to provide space heating, space heating or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc. Deron heat pumps have been verified by ISO9001 international quality management system. Most of the heat pump products have gained CE, TUV, CB, EMC, CCC and SABS certifications. Deron is “Chinese Top Ten Heat Pump Water Heater Brands” and has established cooperation partnership with Emerson USA. Deron heat pumps have been exporting to most of the countries in the world, such as Finland, Russia, Denmark, England, Germany, Poland, France and etc.

Deron is a national key heat pump enterprise of nine years professional experience in Guangzhou, China. We owns a production centre of 30,000 square meters, producing air to water heat pumps, water to water heat pumps and swimming pool heat pumps, including over 100 models vary from 0.8kw to 250kw.

We introduced advance producing and testing equipments from Italy, Japan, USA and Germany covering 3 CNC lines, 3 bending lines, 2 welding lines, 3 automatic production lines and 3 TUV certificated laboratories, which is able to test the heat pump under EN 14511 standard. Our products work to provide space heating, space heating or sanitary hot water for private house, restaurants, hotels, schools, factories, hospitals and etc.

Deron heat pumps have been verified by ISO9001 international quality management system. Most of the heat pump products have gained CE, TUV, CB, EMC, CCC and SABS certifications. Deron is “Chinese Top Ten Heat Pump Water Heater Brands” and has established cooperation partnership with Emerson USA.

Deron heat pumps have been exporting to most of the countries in the world, such as Finland, Russia, Denmark, England, Germany, Poland, France and etc.

Clients & Staff

Exhibition

Why will you choose Deron?

Our promise:
--- Energy efficient
Reduce energy cost and greenhouse gas emission.
--- Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low pressure protection, phase sequence protection etc.
--- Convenience and economic
A perfect substitute for solar panels, electric & gas water heaters.
Can be installed where solar roof collectors aren’t suitable and looks better.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strict quality control
ISO industry standards.
Standard & strict manufacture process.
Every product must be tested and double checked before package.
---Eligible for trade and distribution
CE, CB, CCC, WATERMARK, SAA, AUSTRALIA STANDARD, etc.
---Customer orientation
DERON provide you optimized solutions and product customization as well as globalized customer services.
--- Satisfaction guarantee
18 months warranty for air-to-water heat pumps and water-to-water heat pumps and 24 months special for swimming pool heat pump.

Please don’t hesitate! Send us your inquiry righht now!

Deron is your best choice.

1. We are a nationally high-tech company in China with technical cooperation with Germany, focusing on researching and producing environmental energy-saving heat pump units, which are mainly used in guesthouses, hotels, schools, offices, factories, hospitals and family villas.

2. Our company is among the earliest companies to establish the heat pump R&D center in China, and has our own heat pump laboratory, which lead to the breakthrough that the use of heat pump at -25 deg.C low temperature zone is possible. Moreover, we made it practical to test the air source, water source or ground source heat pumps.

Our company has set up our heat pump technology transfer center of Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences and Sino-Germany Magnetically Levitated Heat Pump R&D Center. Our company is also the strategic partner of American Emerson Copland Company.

3. Our company has obtained the license of national industrial production. Our products have passed ISO9001 quality system, and gained national CCC compulsory certification, CE certificate of the EU, and TUV as well as SGS.

4. Deron is regarded as "Top Ten Heat Pump Water Heater Brands" in China and 2010 Asian Games Venues are equipped with Deron heat pump systems to provide hot water for athletes.
