Water Source Heat Pump

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

SHUNDE; GUANGZHOU; SHENZHEN

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

OEM

Products Model:

WWA-SS-6/8/10/12/16

Products Details
Company Profile

Quick Details

Brand Name: OEM

Model Number: WWA-SS-6/8/10/12/16

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 1. Whole set unit is packed nicely in a PE bag. Packing by Anti-collision protection + 5 Layer carton + wooded Case (For LCL only). 2. Spare parts & instruction sealed in the pack. 3. Customized packing is available. 4. We are always working hard on the most reliable packing in order to help you get the Perfect products.
Delivery Detail: 7~35 days after receiving 35% deposit or full payment(if sample)

Specifications

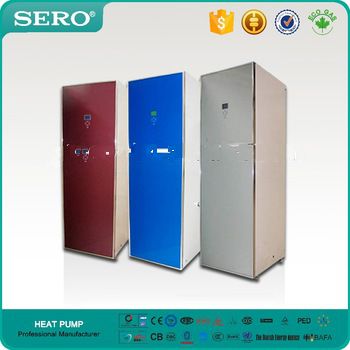

Water Source All In One Heat Pump

The ideal heat source is ground-water because of its relativelyhigh temperature of 8 to 12°C all the year around.

The water must be available at a reasonable depth, with sufficient quantity, quality and without contamination.

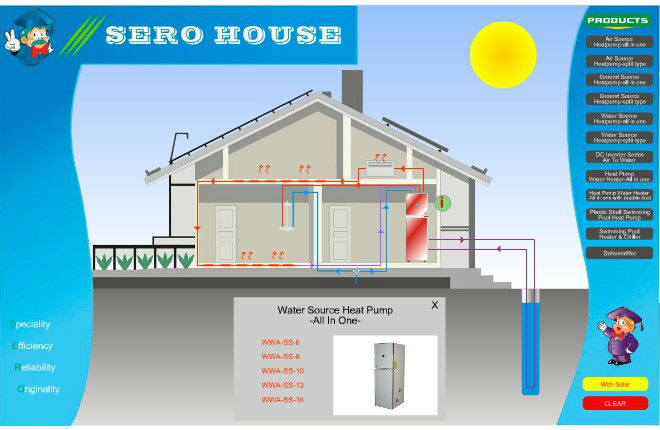

The ground water is taken from a source-well and sink well to the heat pump and pumped back into the ground is the sink-well at some 15m distance.

1. LCD control with indication key.

2. Electrical auxiliary heater 3/6/9KW.

3. Time display(hour, date, year), real clock.

4. Alarm system.

5. Auto restart.

6. Higher COP.

7. High temperature water supply 45 - 60°C.

8. New design panel.

9. Multi use for water heater, floor heater and radiator.

WATER SOURCE ALL IN ONE --- WWA(with build-in water tank)
MODEL	Performa-nce at	Heating Capacity	Power	Cop	Supply power	Auxiliary heater	Compre-ssor	Heat exchanger	Water tank	Flow Temp-erature	Dimensions (HxWxD)	Weight	Sound level

SS		KW	KW		V/Ph/Hz	KW			L	°C		Kg	dB(A)

6	W10/W35	5.6	1.0	5.6	230/1/50	3	Rotary(1)	Titanium /PBHE	150	65	1780x600x650	245	43
	W10/W50	4.5	1.2	3.7
	W10/W60	4.0	1.5	2.7
8	W10/W35	7.5	1.4	5.4	230/1/50	3/6	Rotary(1)	Titanium /PBHE	150	65	1780x600x650	247	43
	W10/W50	6.6	1.8	3.7
	W10/W60	6.1	2.2	2.8
10	W10/W35	9.6	1.7	5.8	400/3/50	3/6/9	Scroll(1)	Titanium /PBHE	150	65	1780x600x650	250	44
	W10/W50	8.4	2.2	3.8
	W10/W60	8.0	2.8	2.8
12	W10/W35	12.4	2.1	5.7	400/3/50	3/6/9	Scroll(1)	Titanium /PBHE	200	65	1780x600x650	278	45
	W10/W50	11.3	2.9	3.9
	W10/W60	10.5	3.5	3.0
16	W10/W35	15.3	2.7	5.8	400/3/50	3/6/9	Scroll(1)	Titanium /PBHE	200	65	1780x600x650	283	48
	W10/W50	14.3	3.6	4.0
	W10/W60	13.1	4.6	2.8
Testing:EN 14511								Sound level:ISO 9614 & Eurovent 8/1
