Industrial Flow Freezing Broccoli Quick Freezer Type Freezer Machine For Vegetables And Fruit Freezing Line

FOB Price:

US 50,000-999,999 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1 Set/Sets per Month

Port:

Ningbo,China

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

WUYE

Products Model:

SLD

Products Details
Company Profile

Quick Details

Brand Name: WUYE

Model Number: SLD

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: naked or wooden
Delivery Detail: Shipped in 65 days after payment

Specifications

Product Description

Industrial Flow Freezing Broccoli Quick Freezer Type Freezer Machine For Vegetables And Fruit Freezing Line

♣Feature of Fluidized IQF freezer :

1, Continuous IQF food. Especially IQF vegetables and fruits.For example strawberry,mango, durian,pineapple,okra,green peas, green bean,carrot etc.

2, Using air-cooled unit, low energy consumption.

3, Using continuous cleaning equipment ,drying equipment. It's so clean for IQF freezer.

4, Long interval of deforsting time. It is for the continuity of production.

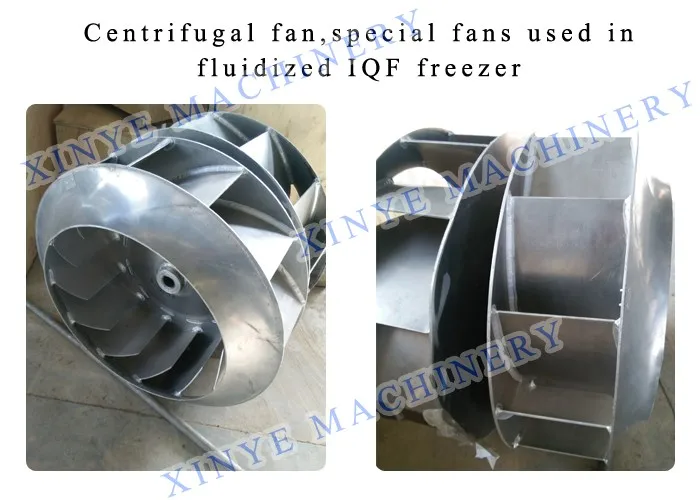

5, Using high-pressure fan, for frozen food in suspension motion and preventing bonded.

6, Using food grade stainless steel.

♣Model and main technical parameters list of Fluidized IQF freezer

Fluidized IQF freezer	LSDⅡ-1000	LSDⅡ-1500	LSDⅡ-2000	LSDⅡ-3000	LSDⅡ-4000	LSDⅡ-5000
Refrigeration capacity(kw/h)	165	256	320	460	580	700
Freezer room size(m)	3.04.43.7	7.54.43.7	8.74.43.7	114.74.3	144.74.3	17.54.74.3
Dimension size(m)	(m)8.14.43.8	9.64.43.8	10.84.43.8	13.14.74.4	16.14.74.4	19.64.74.4
Installing power(kw)	42	57	68	99	132	165
Feed temperature(℃)	+15℃
Outlet temperature(℃)	-18℃
Inner circulation temperature(℃)	-35±2℃
Frozen time	5-20
Refrigerant	R717 OR R22

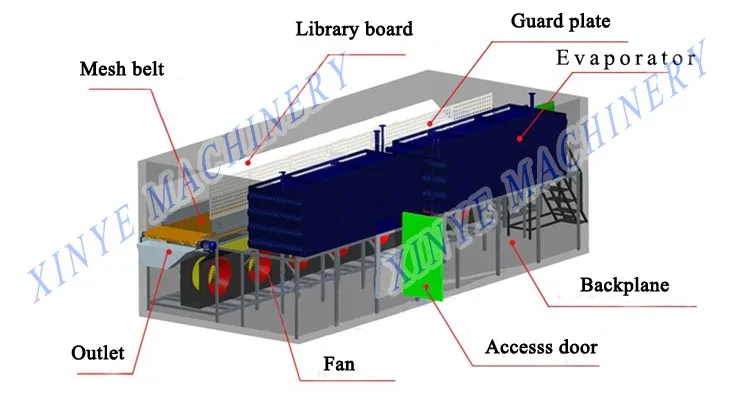

♣Model diagram of Fluidized IQF freezer
