2 Stage Compression 30Bar Pressure Silent Air Compressor Price

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Mgreenbelt

Products Model:

AE-16.0/30

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: AE-16.0/30

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: 40bar best oil free pet bottle blowing air compressor in plywood case.
Delivery Detail: 25 days

Specifications

2 Stage Compression 30Bar Pressure Silent Air Compressor Price

Features of 2 Stage Compression Machine

* Primary screw discharge pressure 10.0-12.0Mpa.

* Small inter-stage compression ratio, more energy-efficient.

* High-efficiency cooling system, air-cooling and water-cooling combined.

* Original creative built-in circulation cooling tank makes the cylinder and stuffing cooled through water pipe without external connect with cooling tower.

Advantages of 30 Bar High Pressure Air Compressor

1. Complete 304 stainless steel pipeline

Long operation life, excellent anti-corrosion, high temperature resistance, high intensity.

2. Double-acting cylinder

Achieve balanced compression and low energy consumption.

Minimize leakage and optimize efficiency.

Lower compression temperature.

Longer service life of components.

Optimized adjustment.

3. Converter technique application

Eliminate or reduce the operation time of compressor while unloading, accurately tracking the gas demand of users and meeting requirements of different productions.

4. Efficient water cooling system

5. Primary screw air end discharge pressure 1.0MPa-1.2MPa.

6. Smaller inter-stage compression ratio, energy-efficient.

Technical Parameters of 16.0 Cubic Meters 30Bar High Pressure Compression Screw Air Compressor

Model	AE-16.0/30
Motor power	165kw
Air compressor working voltage	220v,380v,415v,440v,460v,480v
Air pressure	30bar (30kg/cm2)
Oil free air displacement	16.0m3/min
Shaft power	160kw
Outlet air size	DN50
Cooling water inlet and outlet	2"
Weight	5000KGS
Industrial air compressor size	3620x2100x2000mm
Water consumption	30T/hour

Oil-free Piston Compressor Air End

PET Bottle Blowing Air Compressor on Sale

PLC Control System

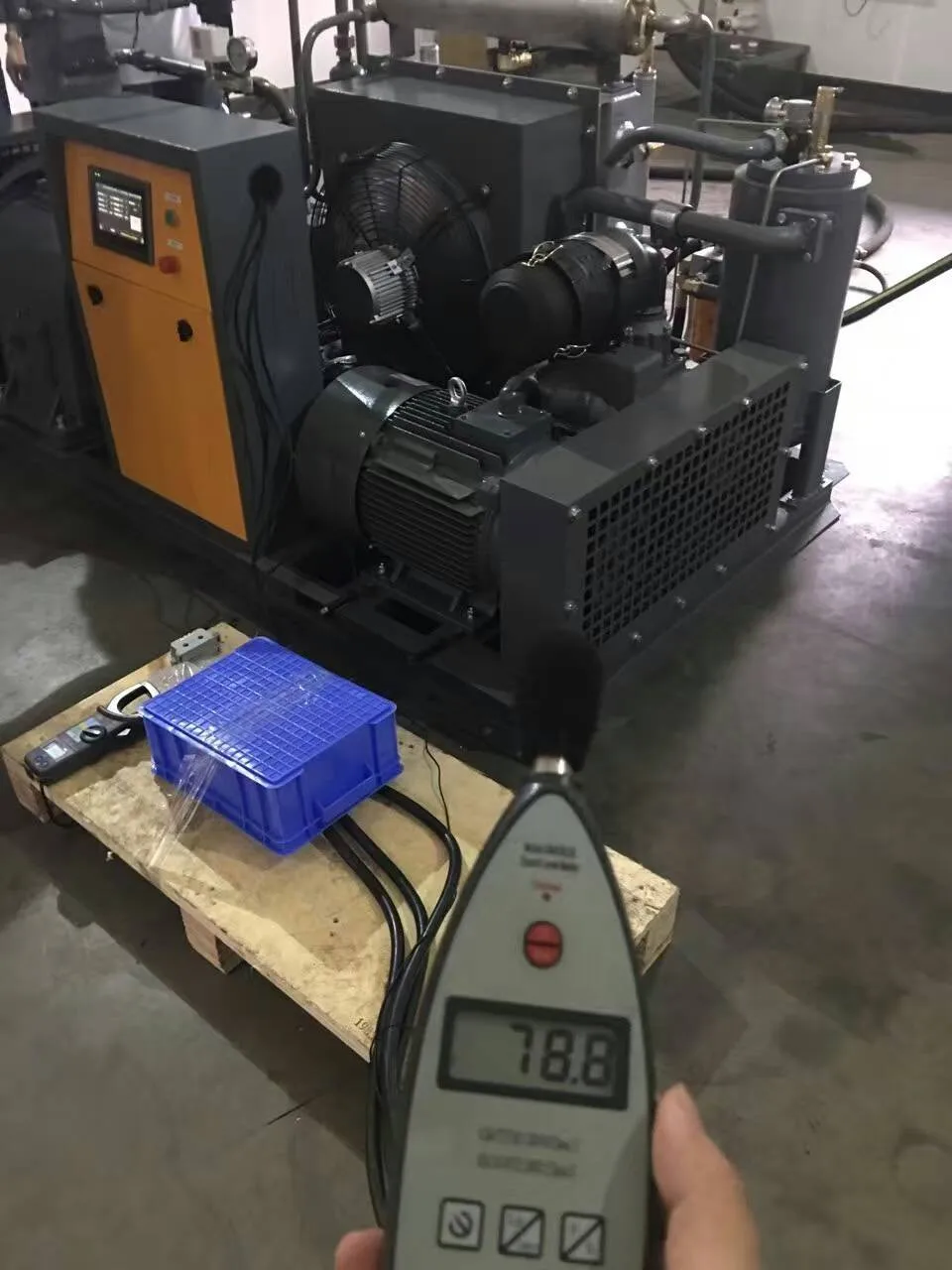

Low Noise Air Compressor Silent Compressor

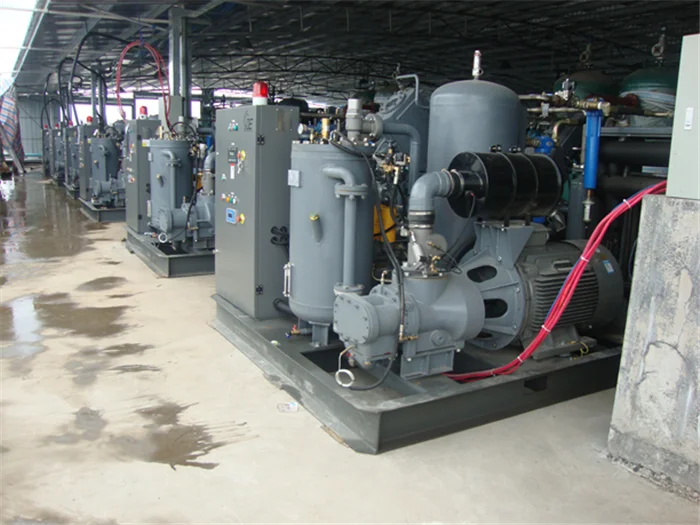

Air Compressors Used in Plastic Water Bottle Cosmetics Bottle Factories

If you need such air compressor, contact with me:

Lean

Mobile: 008617686681006

E-mail: cncompressors(at)gmail.com

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
