Screw Water Chiller,Air Cooled Industrial Process Water Chillers

Screw Water Chiller,Air Cooled Industrial Process Water Chillers

Our water chiller is energy saving,for one aspect,we use Hanbell/Bizter compressor which is the most high efficient brand so far,and this compressor could be capacity control at 0-25-50-100% according to your need.

---Top sales Recommended product---

Water chiller, air cooled chiller, air cold water chiller, industrial chiller air cooled industrial chiller, air cooling chiller, glycol chiller,milk chiller, portable chiller, process chiller, Heat exchanger chiller

Air/water cooled scroll water chiller:1.5 - 184kw

Air/water cooled screw water chiller:109 - 2015kw

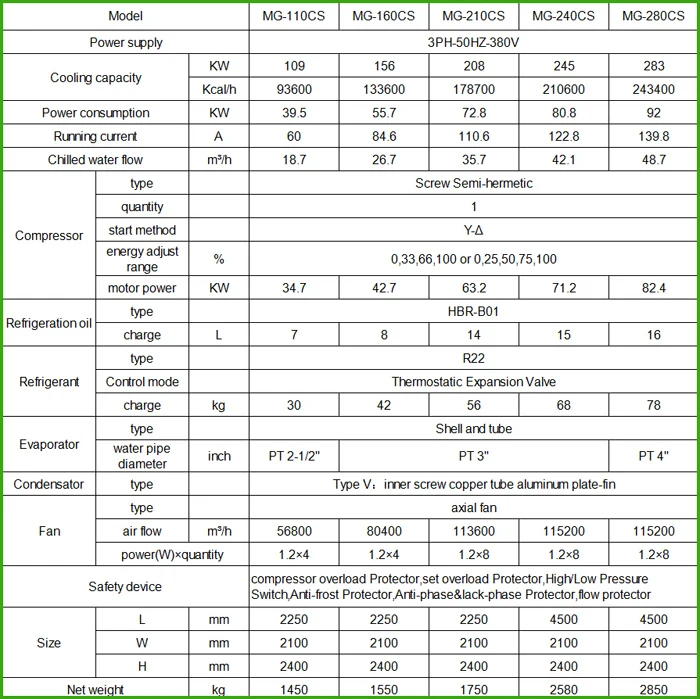

Parameters of screw water chiller

Other parameters are available upon receipt of your request

1.Nominal cooling capacity calculated according to:

Inlet/outlet chilled fluid temperature : 12℃/7℃. Inlet/outlet cooling air temperature: 30℃/38℃.

2.Working condition:

The temperature range of chilled fluid is from 5℃ to 35℃. Temperature difference between inlet

and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

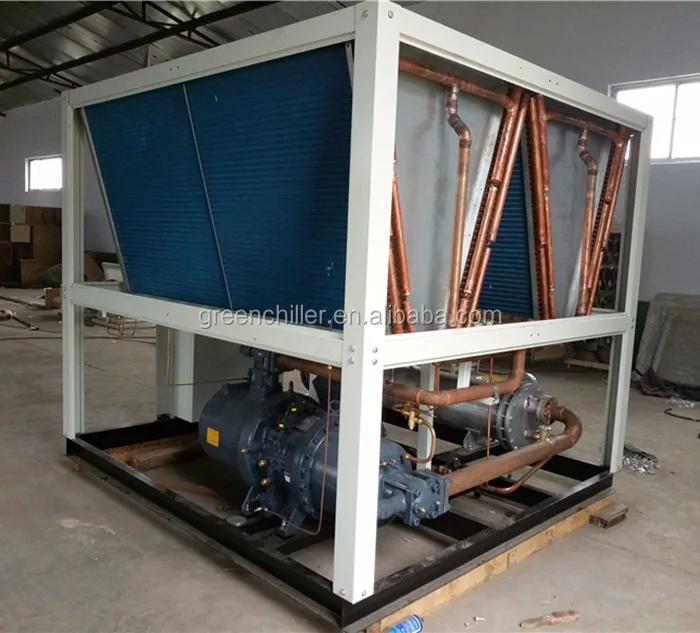

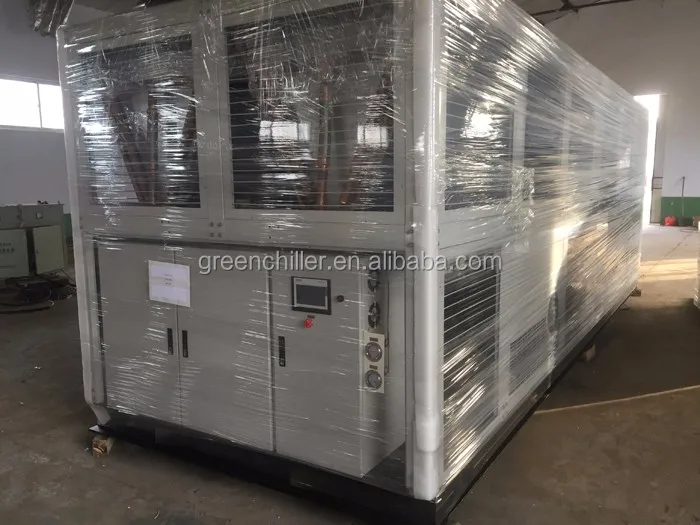

Screw water chiller picture

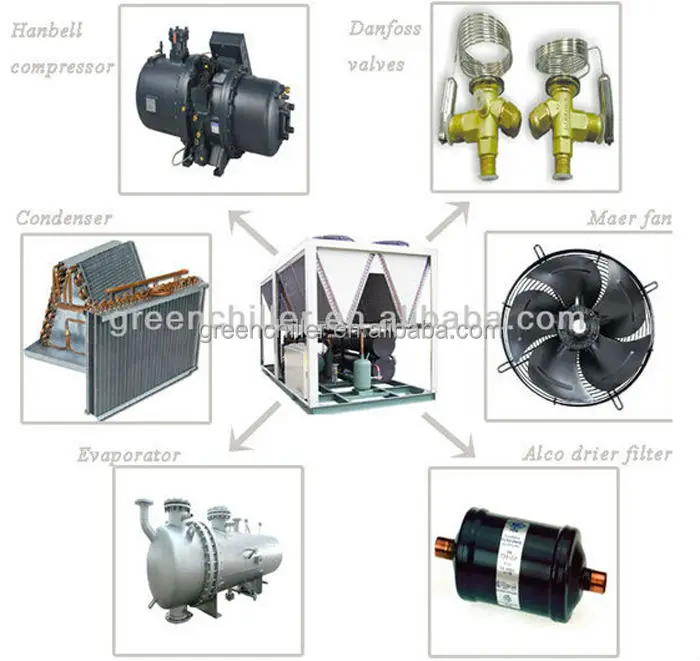

Main parts of screw water chiller

1.Hanbell&Bitzer compressors featuring built-in safety protection, low noise, low electricity consumption, increased reliability & longer life.

2.SCHNEIDER electric components ensure stable operation and long service life.

3.Famous brand water pump, large flow, high efficiency and long lasting service life.

4.Temperature controller is provided to precisely control water temperature with variation of ±1℃ temperature can be set in the range from 5℃ to 50℃.

5.Fully stainless steel thick water-tank-type evaporator is integrated with the built-in automatic water replenishing device for quick cleaning and maintenance.

6.The condenser of the water cooled unit is shell-and-tube type, with inner thread copper tube design, the effect of heat exchanging is good. The condenser of the air cooled chiller unit is made of aluminum fins and row column tubes to guarantee the high efficiency of heat exchange.

7.Static plastic spraying enclosure with aesthetic design, elegant appearance, convenient operation and maintenance.

Application of water chiller
MG series industrial water chillers are widely used in industries, including plastic & rubber machinery, electroplating, pharmacy, chemical engineering, ultrasonic cooling and printing. They can precisely control temperature in any process requiring water cooling, and greatly improve the efficiency and quality of production.  an indispensable companion of modern industrial production.

The package is fumigation free plywood case,inside with polyethylene film.The package is strong
enough for air or sea transportation.And designed with base,it is very easy for forklift handling.

A.14 Months warranty.

B.All spare parts for the machine can be purchased with agent price from us

C.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

Shandong Mgreenbelt Machinery Co., Ltd is founded in 2003 with 120 employees and 10 technicians, covering 34000 square meters. We are a leading specialized manufacturer of industrial water chillers in Northern China.

Water chiller factory

Foreign customer's visit

Our customers are from all over the world,like Australia,America,England,Brazil,Sudan,India,Arab and so on

Certificate of industrial process water chillers

Q.Your above product is not my need,what should i do?
A:Pls tell us your requirement,our R&D team will give you a complete solution.

Q:What is the availability of the machine?
A:If the model is not in stock,it needs about 10~15 days lead time to produce.

If you have more question,pls feel free to contact our online service Lisa Liu.
