50 ton cooling water air cooled chiller

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

300 Set/Sets per Month

Port:

Qingdao,Ningbo,Shenzhen,Guangzhou,Shanghai

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

MGREENBELT

Products Model:

MG-70CS

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: MG-70CS

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: International standard wooden case
Delivery Detail: Shipped in 25 days after payment

Specifications

Product Description

Product Application of 50 ton air cooled chiller

MGreenbelt water chillers are apply widely in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Pharmaceutical Industry , Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT Industrial chiller is a good partner for the modernized industry , which operate with reasonable design, high quality and complete range of specifications.

SPECIFICATIONS FOR 50 ton air cooled chiller
Model	MG-70CS
Cooling capacity	KW	180
	Kcal/hr	155038
Power supply	3PHASE/380V/50HZ, or 3PHASE/220V/480V/60HZ
Refrigerant	Type	R22/R407C/R404A
	Control Type	Thermostatic expansion valve
Compressor	Type	Semi-hermetic Screw Type
	Power	KW	48
	Start way	Y-delta
	Energy control range	%	25,50,75,100
Evaporator	Type	Shell and Tube
	Chilled water flow rate	m3/h	38
	Inlet/outlet pipe diameter	mm	DN80
Condenser	Type	Finned copper tube +axial air fan
	Cooling air flow	m3/h	70000
Machine Size	LxWxH(mm)	330023002400

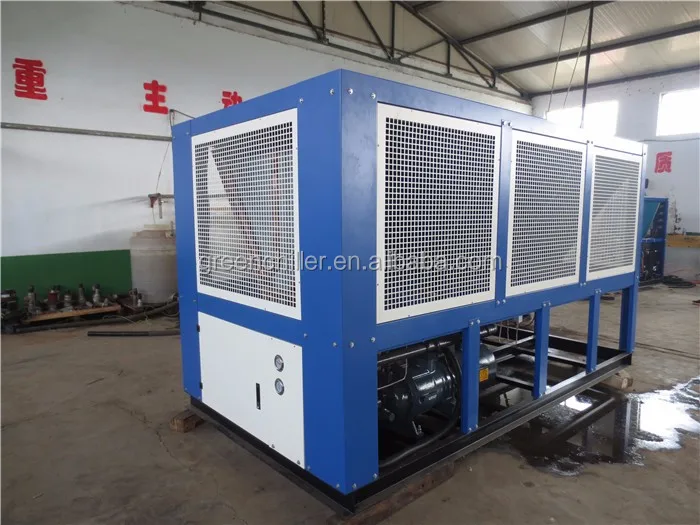

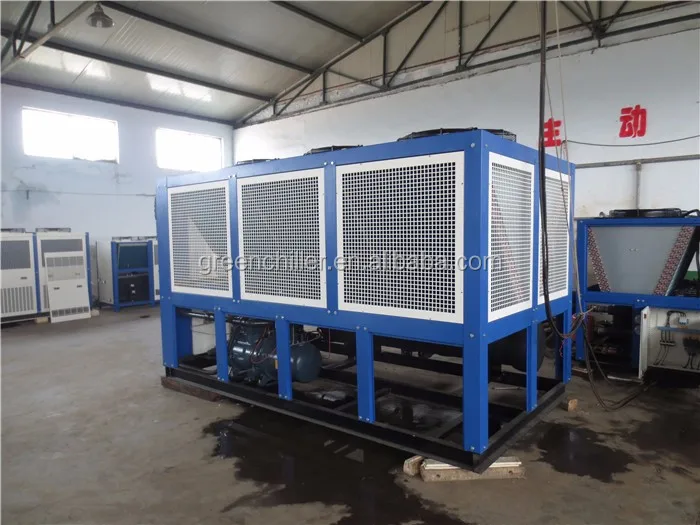

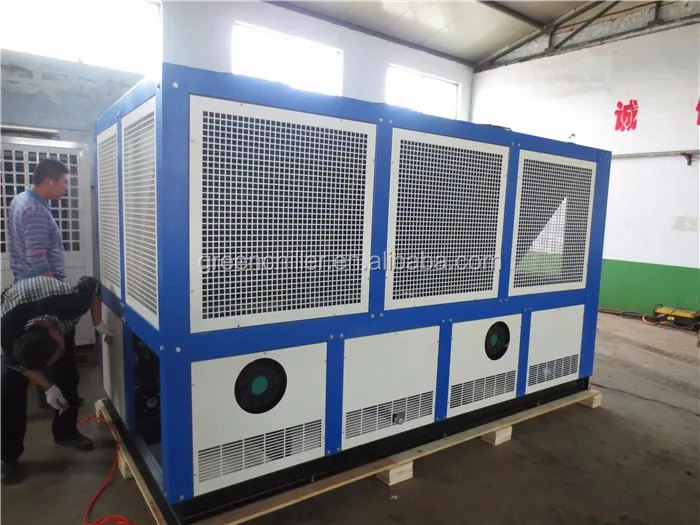

Detailed Images

Main Features

1) Adopt the world famous semi-hermetic screw compressor, low noise and super cooling.
2) Adopt high efficiency evaporator with seamless welded inside screw heat exchange copper tube.
3) Adopt micro-computer controller or HMI or PLC controller, to support full control of the whole system.
4) Different type power supply ,refrigerant and other for options.
5) Multi protection to protect the system.

Evaporator

Type: Tube-in -shell

Closed circuit

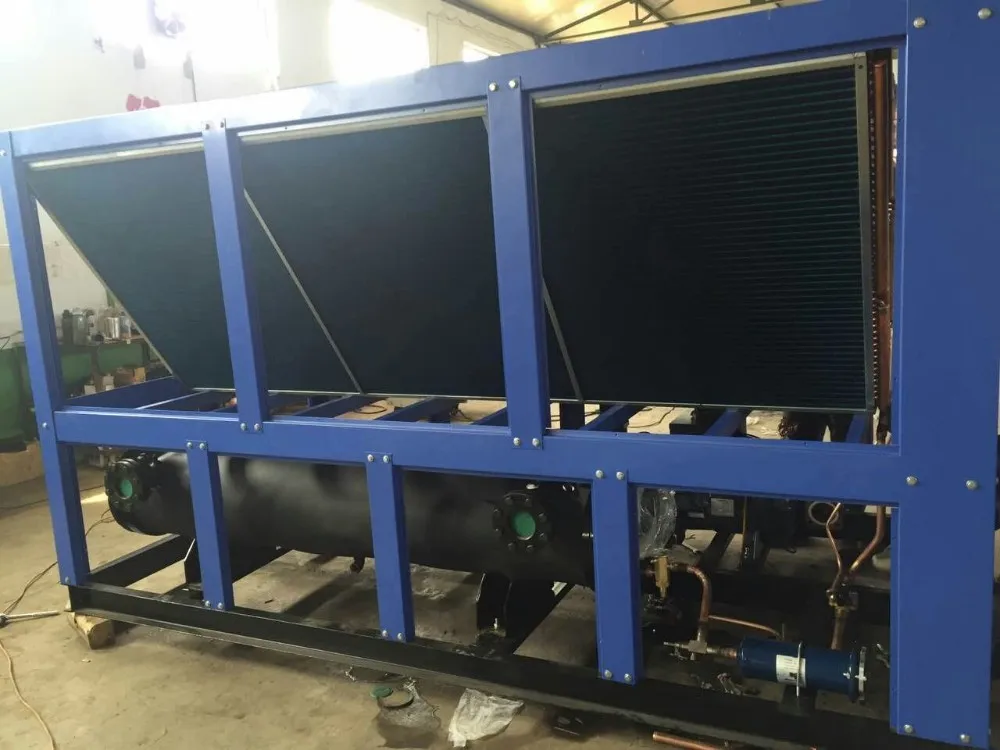

Condenser

Finned Aluminum with red copper

V type to improve the heat discharge

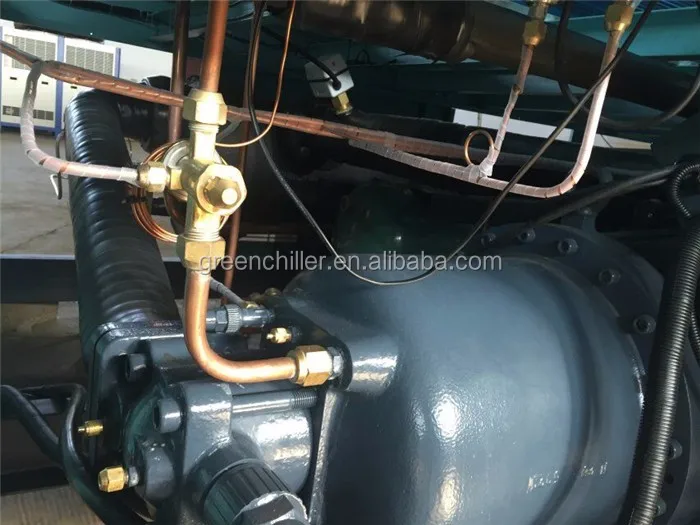

Compressor

Type: Semi-hermetic Screw Type
Brand: Hanbell or Bitzer
Original: Taiwan/Germany

Control Box

Outside working site design
Micro-computer, or PLC or HMI

Production Range

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	3400 (L) * 2400 (W) * 2500 (D)
Weight	3500KG
Packaging Details	The normal package is plywood box(no need fumigation).If container is too tigher,we will use pe film for packing or pack it according to customers special request.

FAQ

Q1: How to choose the right chiller?
A1:
1).Power supply voltage : PH/ V/ HZ?
2).Refrigerant type R22(Freon ) or CFC free one R407C?
3).What is the cooling capacity requests , KW?
4). What is the outlet water temperature and return water temperature to chiller?
5). Do you have the requests for the water flow rate , water pressure and water quality?
6). For what kind of equipment or cooling system( Close loop or open loop ) in your side?
7). What is the maximum ambient working temperature in your factory?
Q2: What power supply chiller you can produce?
A2: Our standard power supply is 3phase-380V-50Hz, Customzied different for optaions, like 3phase- 415V,440V,460V,480V,- 50Hz or 60Hz
Q3: Can you supply C/O, FORM E?
Yes, we can.
Q4:What refrigerant you can supply?
A4: We have R22, Eeo friendly R407c, R410a, R134a, depends on your choice.
Q5:This model and type chiller is not what I need, what should I do?
A5:Please contact me as following:

Attn: Libra

Email: chillercompressor(at)gmail.com

Skype: libra5813

Mobile: 008617686681007

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
